9. Forward and Direct Clutch Assembly Removal

1. Rotate the transmission to the upright position.

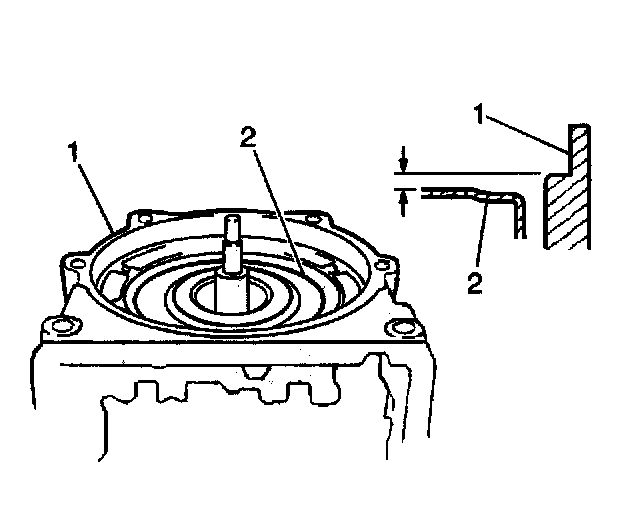

2. Measure the height of the forward clutch (2) against the transmission case (1) in order to ease in assembly.
3. Note the direction of the bearing and the bearing race for assembly.
4. Remove the forward clutch from the transmission case.

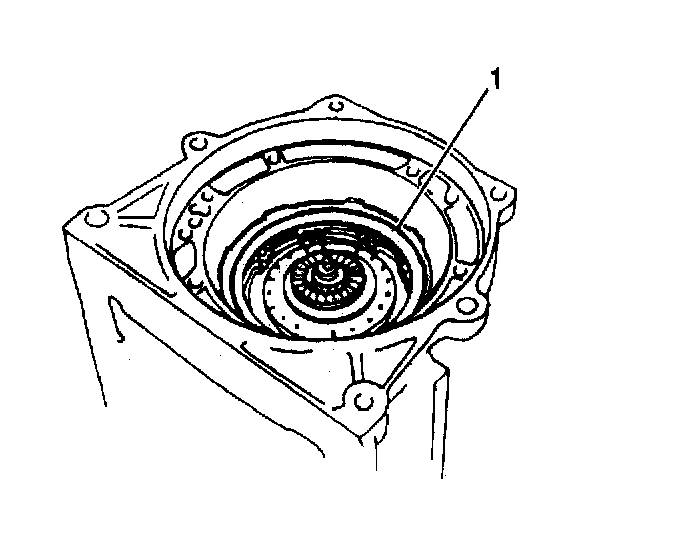

5. Remove the direct clutch (1) from the transmission case.
