Home >> Chevy Truck >> 1999 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Locations >> Electronic Component Views

Electronic Component Views

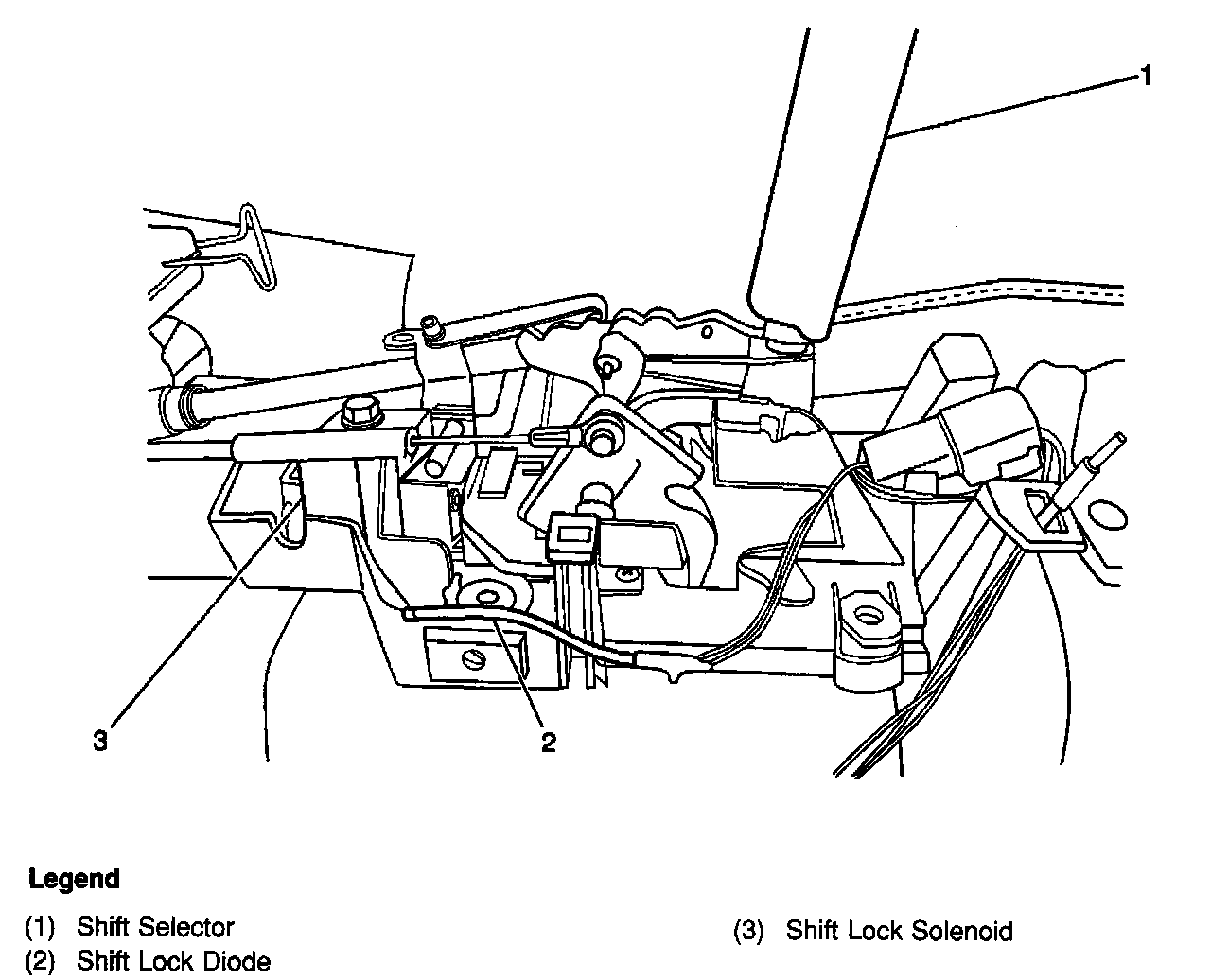

Center Floor Console

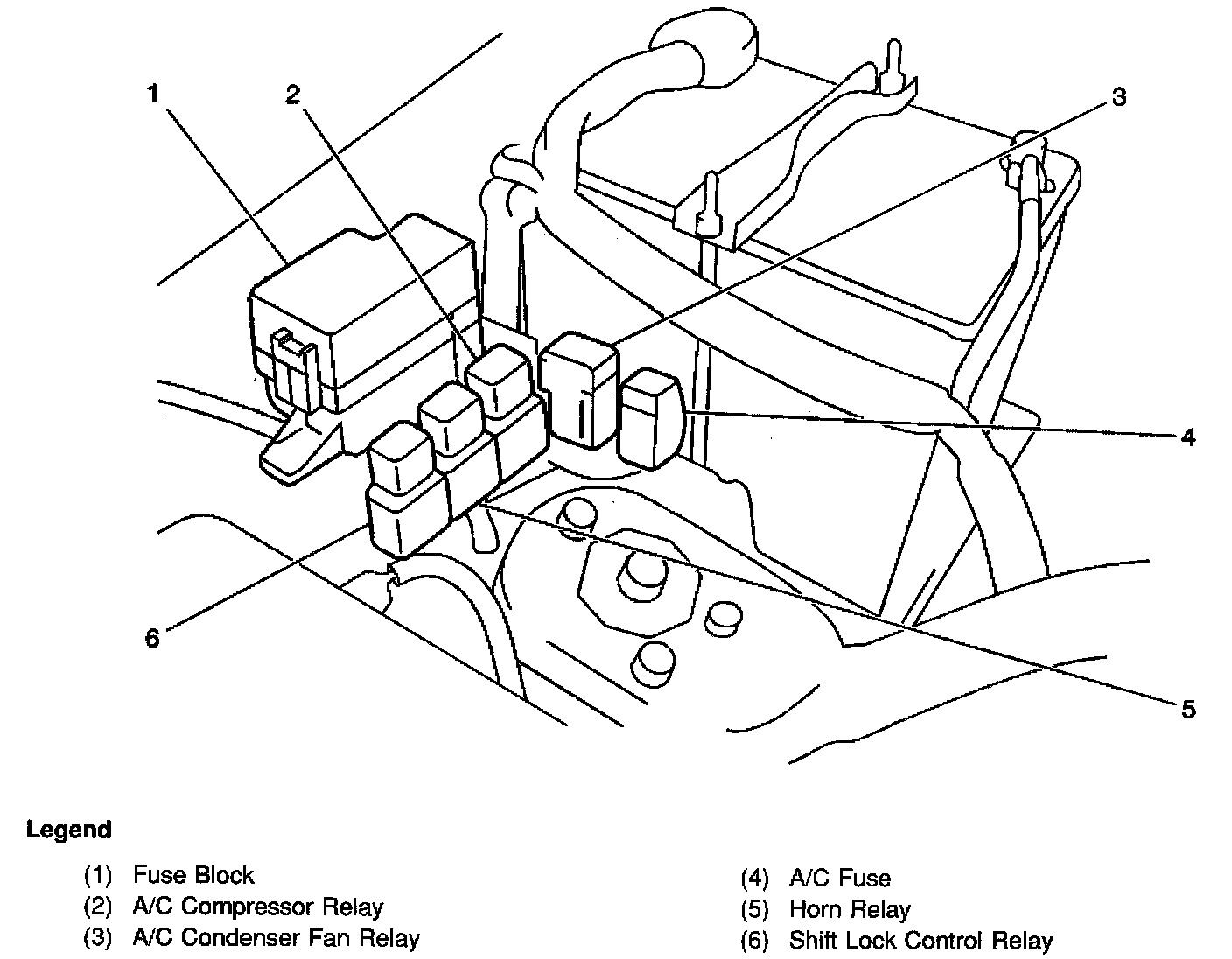

Relays





Transmission - Left Side

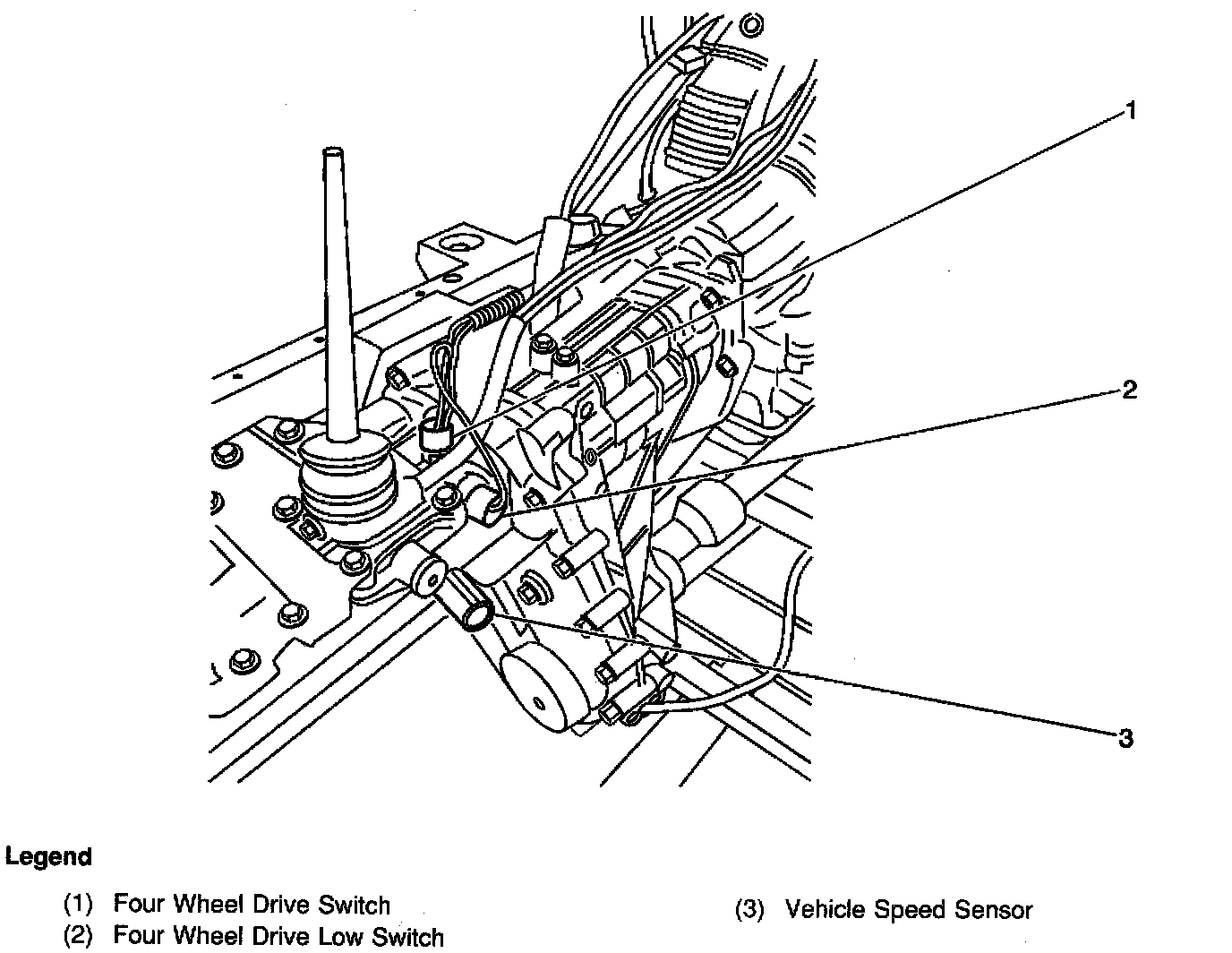

Transfer Case
