Front Suspension

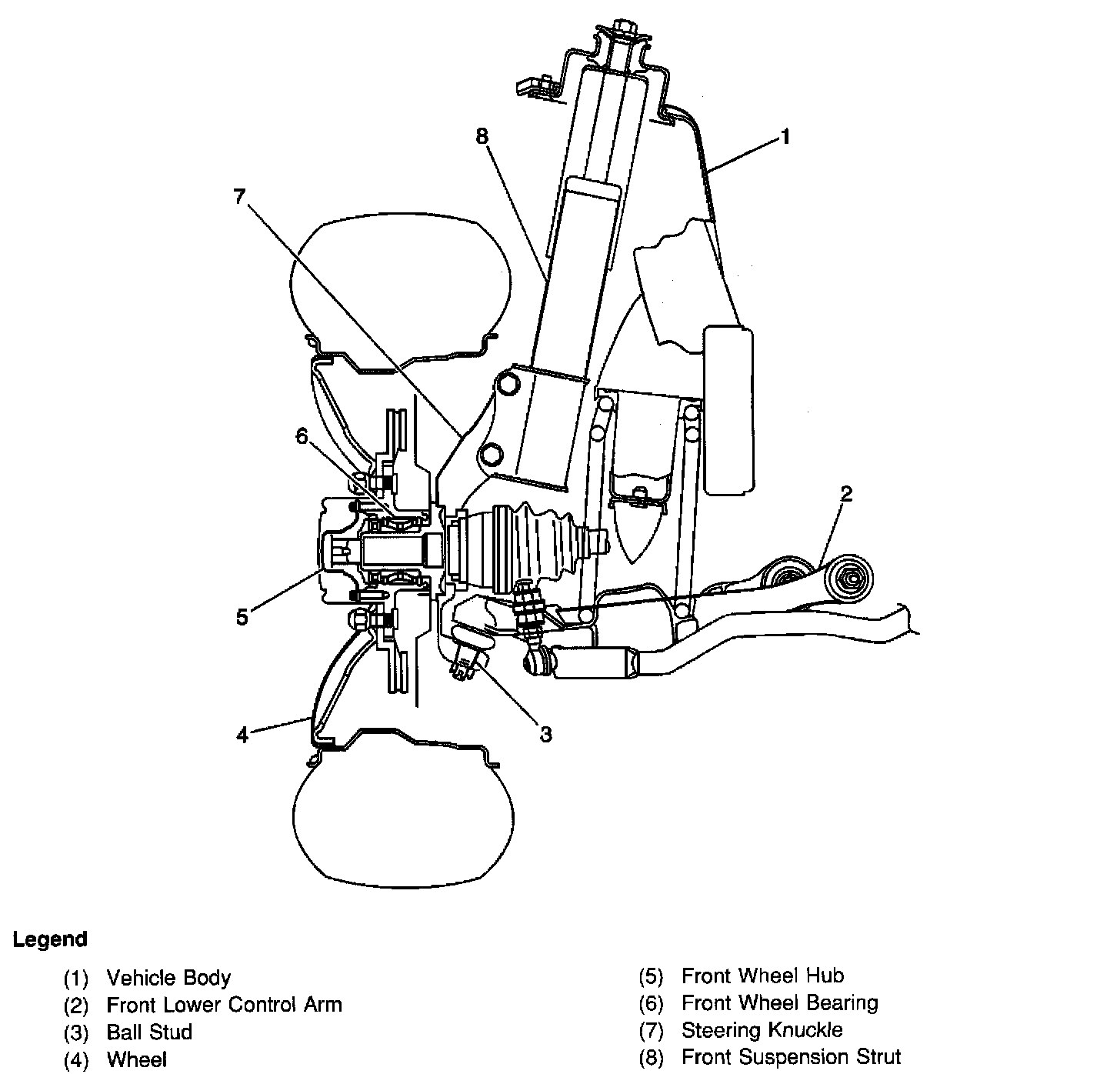

The coil spring is separate from the strut. The upper end of the coil spring is anchored to the body by a strut support. The front suspension is a strut type independent a spring seat. The lower end of the coil spring is on suspension. The upper end of a strut is anchored to the front lower control arm. The body by a strut support. The strut and the The front stabilizer shaft is anchored to the 2 front strut support are isolated by a rubber mount. The lower control arms by 2 links. The shaft is anchored to lower end of the strut is bolted to the upper end of a the frame by 2 brackets. The shaft is isolated by steering knuckle. The lower end of the knuckle is 2 rubber insulators. Anchored to the front lower control arm by a ball joint. The front suspension support brace is anchored to the 2 strut housings. The brace increases body's structural rigidity.4WD Front Suspension Sectional View

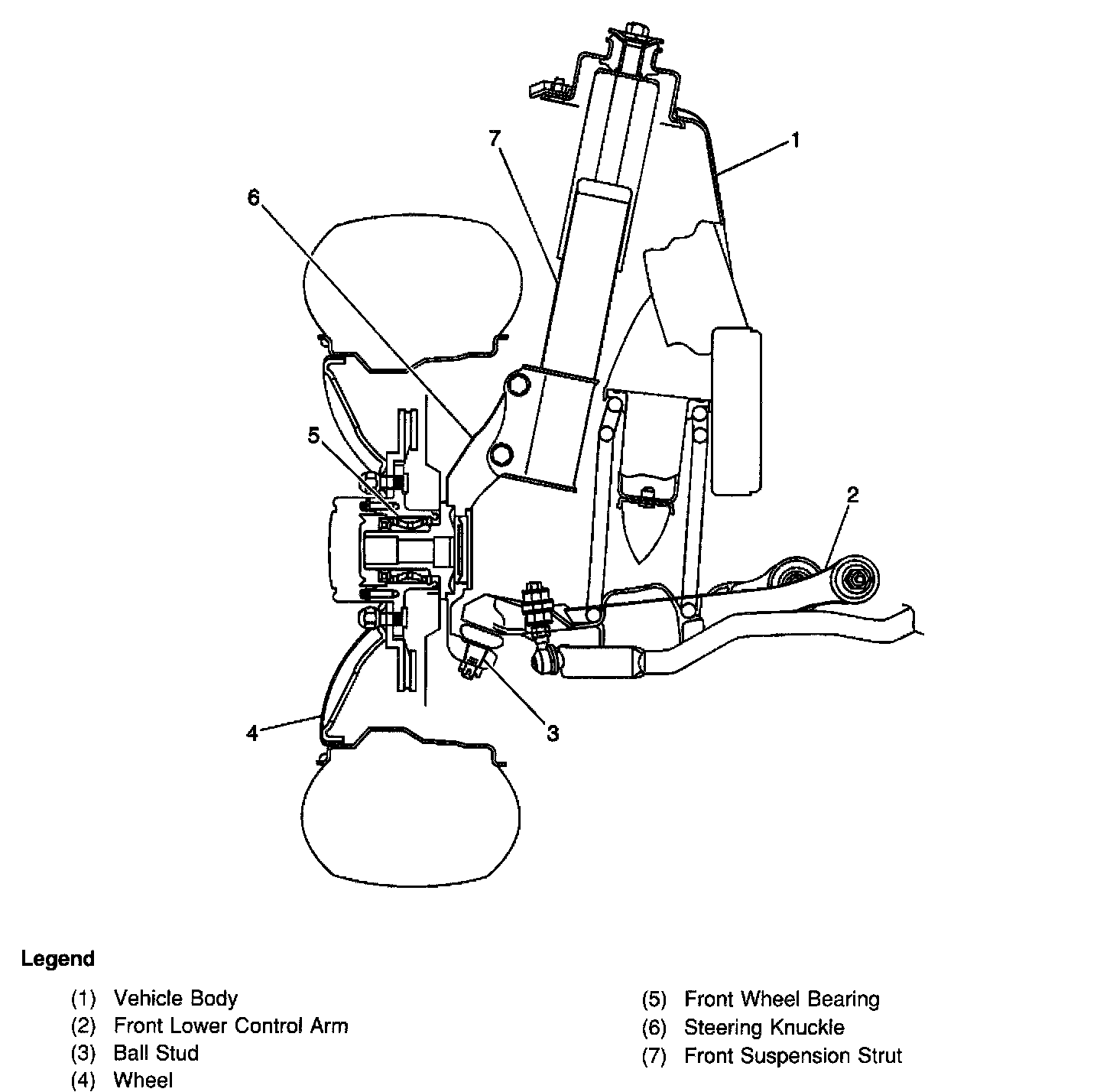

2WD Front Suspension Sectional View
