Tie Rod End Replacement - Outer - On Vehicle

REMOVAL PROCEDURE

- Tools Required
- J 24319-B Universal Steering Linkage Remover





1. Raise and support the vehicle.
2. Remove the tire and wheel assembly.

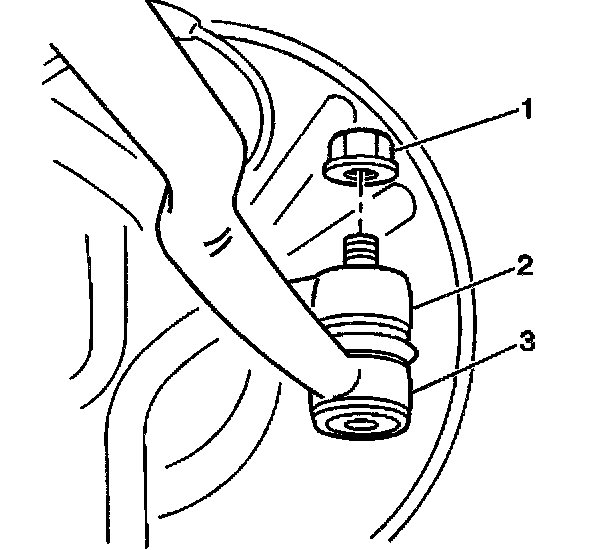

3. Remove the outer tie rod nut (1) from the knuckle (2).
4. Disconnect the outer tie rod end (3) from the steering knuckle (2) using the J 24319-B.

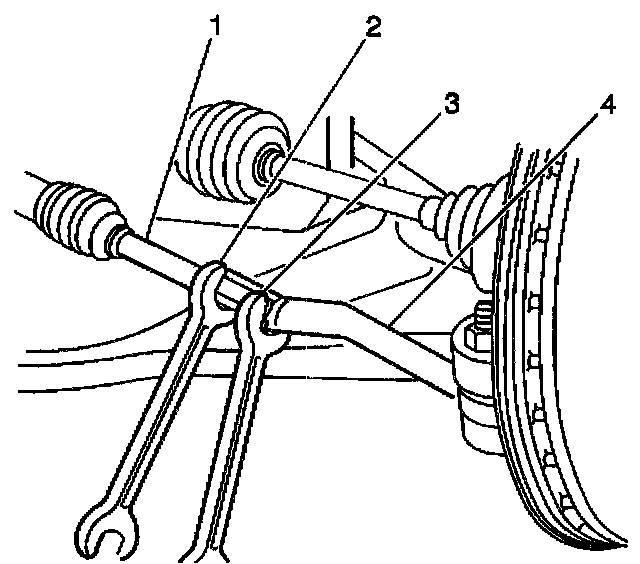

5. Place a match mark, using paint, on the inner tie rod thread (2) indicating the position of the tie rod lock nut (3).

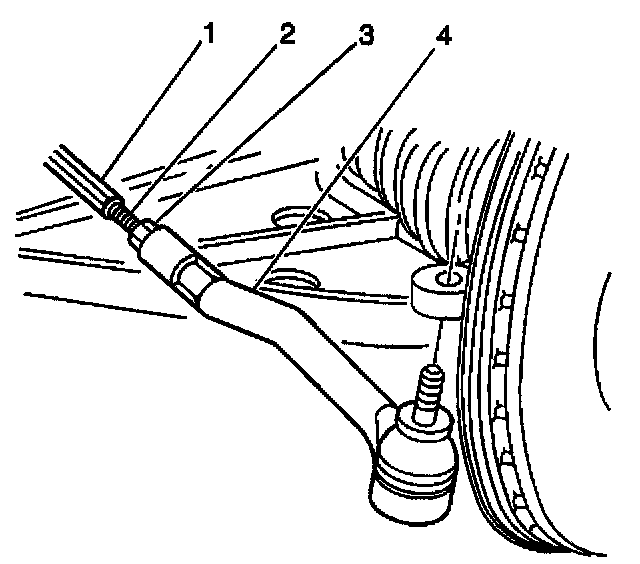

6. Loosen the tie rod lock nut and remove the outer tie rod end (4) from the inner tie rod (1).





7. Inspect the outer tie rod ball joint. Replace the outer tie rod end (7), if necessary.

INSTALLATION PROCEDURE

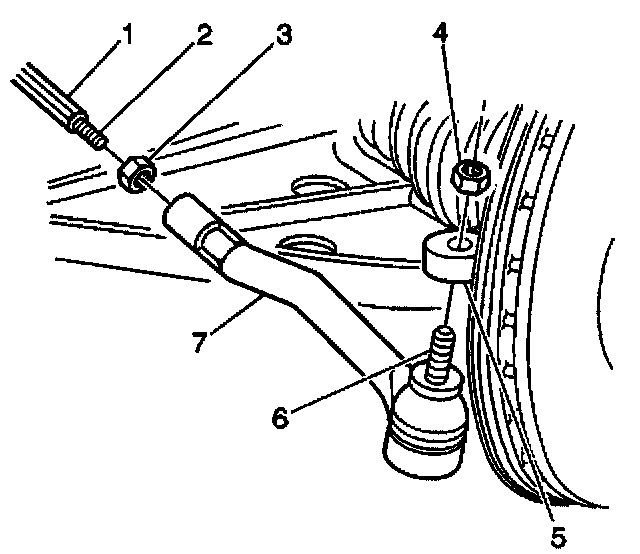

1. Install the tie rod lock nut (3) to the match mark on the inner tie rod (1). Do NOT tighten the lock nut.
2. Install the outer tie rod end (7) to the inner tie rod (1).

NOTICE: Refer to Fastener Notice in Service Precautions.

IMPORTANT: When tightening the outer tie rod nut, support and push the outer tie rod end with a jack in order to prevent the ball stud from rotating.

3. Install the outer tie rod end (7) to the knuckle (5), and install the outer tie rod nut (4).
- Tighten the nut to 43 Nm (31.5 ft. lbs.).

4. Install the tire and wheel assembly.





5. Measure the wheel alignment.
6. Adjust the toe, if necessary.
- Tighten the tie rod lock nut (2) to 65 Nm (47 ft. lbs.).

7. Lower the vehicle.
