Power Steering Gear Pipe/Hose Replacement-Outlet

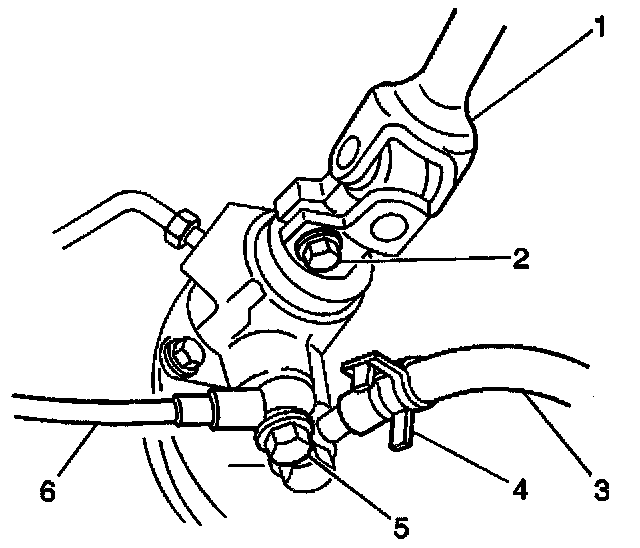

REMOVAL PROCEDURE





1. Use a siphon in order to remove the power steering fluid from the reservoir (6).





2. Loosen the hose clamp (4) for the power steering gear outlet hose at the steering gear housing.

NOTICE: Refer to Power Steering Hose Disconnected Notice in Service Precautions.

IMPORTANT: Place a drain pan under the vehicle in order to catch any escaping fluid.

3. Remove the power steering gear outlet hose (3) from the steering gear housing.
4. Loosen the hose clamp at the power steering reservoir inlet pipe.
5. Remove the power steering gear outlet hose from the power steering reservoir inlet pipe.

INSTALLATION PROCEDURE

NOTICE: Refer to Installing Hoses Without Twists or Bends in Service Precautions.





1. Install the power steering gear outlet hose to the power steering reservoir inlet pipe.
2. Secure the hose to the pipe with the hose clamp.
3. Install the power steering gear outlet hose (3) to the steering gear.
4. Secure the hose to the gear with the hose clamp.

NOTICE: Refer to Using Proper Power Steering Fluid When Adding in Service Precautions.

5. Add power steering fluid to the reservoir. Refer to Checking and Adding Power Steering Fluid.

NOTICE: Refer to Air In The Steering System in Service Precautions.

6. Bleed the power steering system. Refer to Bleeding Power Steering System.
