Home >> Chevy Truck >> 1999 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> System Specifications >> Camshaft Specifications

Camshaft Specifications

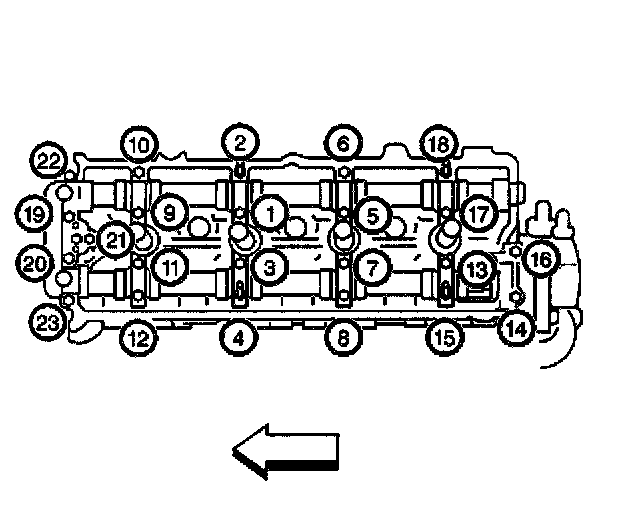

Tighten the camshaft bearing caps in 3 progressive steps in the sequence shown to 11 Nm (97 inch lbs.).
