Installation Procedure

Installation Procedure

Notice:Refer to Fastener Notice in Service Precautions.

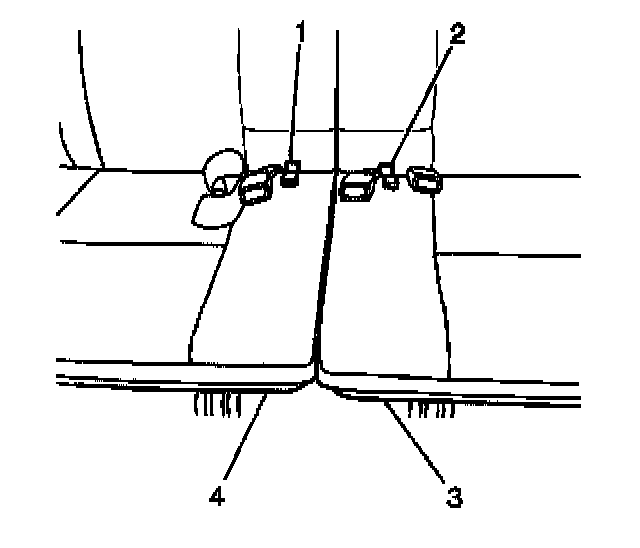

1. Install the rear seat center buckle to the floor pan. Secure the buckle with the anchor bolt.

Tighten
Tighten the rear seat center buckle anchor bolt to 35 N.m (25 lb ft).
2. Install the rear seat center belt to the floor pan. Secure the center belt with the mounting bolt.

Tighten
Tighten the rear seat belt mounting bolt to 35 N.m (25 lb ft).
3. Lower the rear seat cushions (3 and 4).
