Fuel Pump Relay: Service and Repair

Fuel Pump Relay Replacement

REMOVAL PROCEDURE
1. Turn OFF the ignition switch before removing the fuel pump relay.

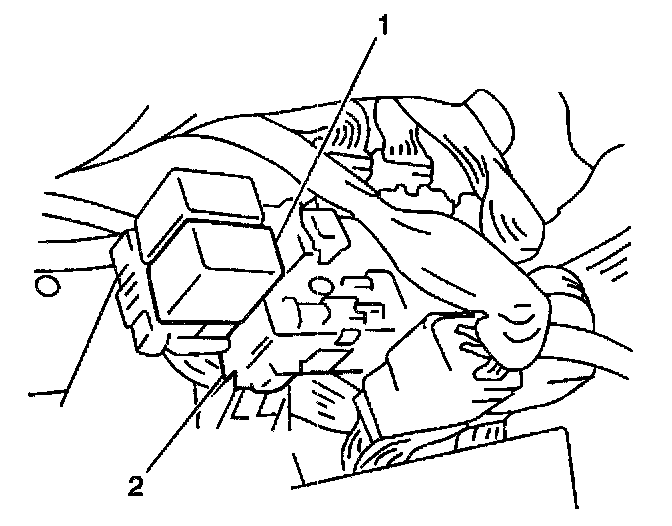

2. Remove the fuel pump relay (1) from the junction block (2).

INSTALLATION PROCEDURE
1. Install the fuel pump relay (1) into the junction block (2).
2. Turn ON the ignition in order to test the operation of the fuel pump relay.
