General Information

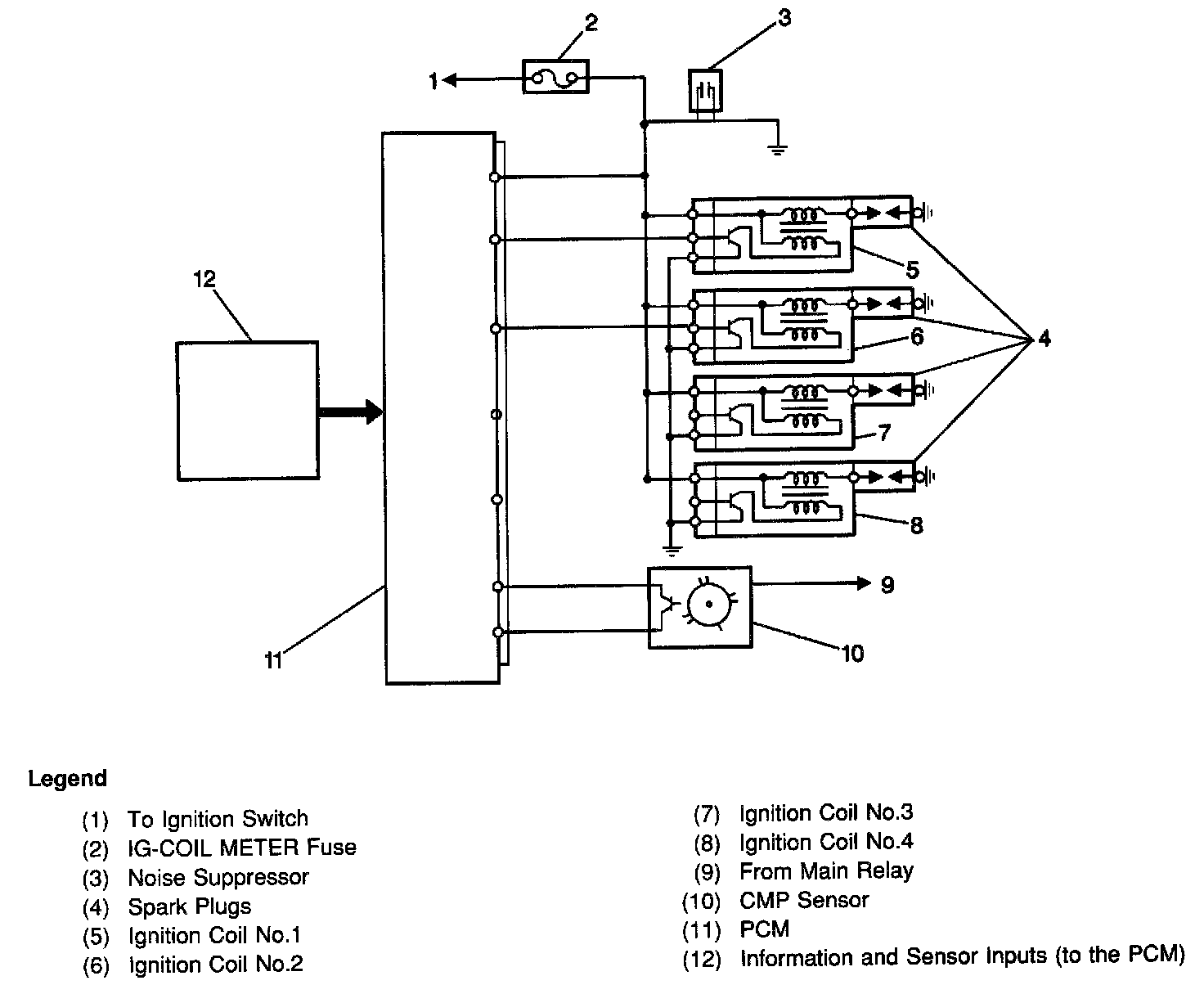

Electronic Ignition (EI) System Description:

The electronic ignition system used in this engine is a coil-on-plug design that is controlled by the Powertrain Control Module (PCM).

The ignition system components cannot be disassembled or repaired. A component that is correctly diagnosed as faulty must be replaced as a complete unit.
