Home >> Chevy Truck >> 1999 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Lighting and Horns >> Diagrams >> Electrical Diagrams >> Interior Lights >> Interior Lights Schematics >> 4-Door

4-Door

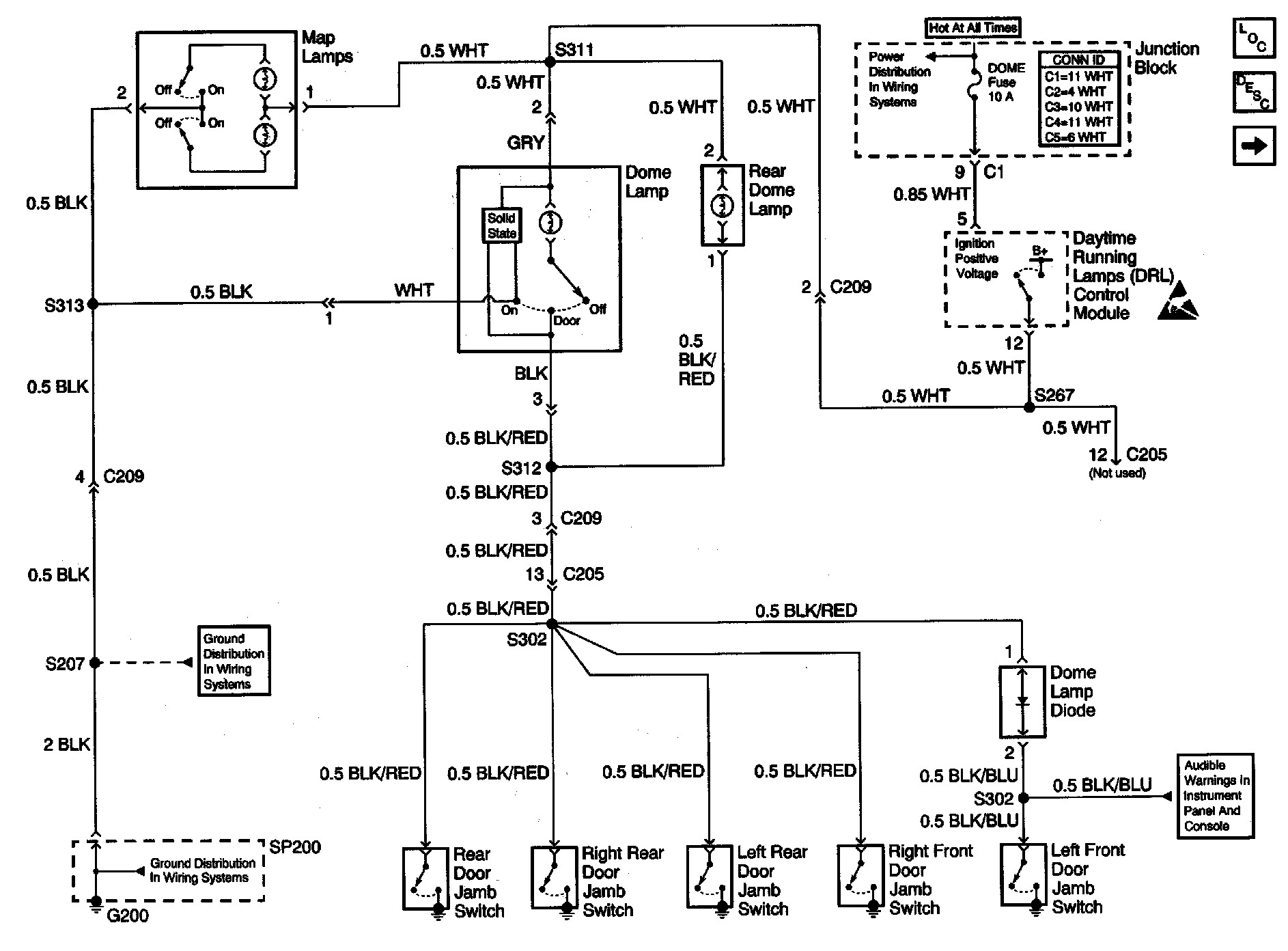

Interior Lights Schematics: 4 Door DRL, Dome Lamp Diode:
