Chevy Truck
>>
1999
>>
Tracker 2WD L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Diagrams
>>
Electrical Diagrams
>>
Instrument Cluster
>>
ECT, Fuel Gages, Tachometer And Oil Indicator
ECT, Fuel Gages, Tachometer And Oil Indicator

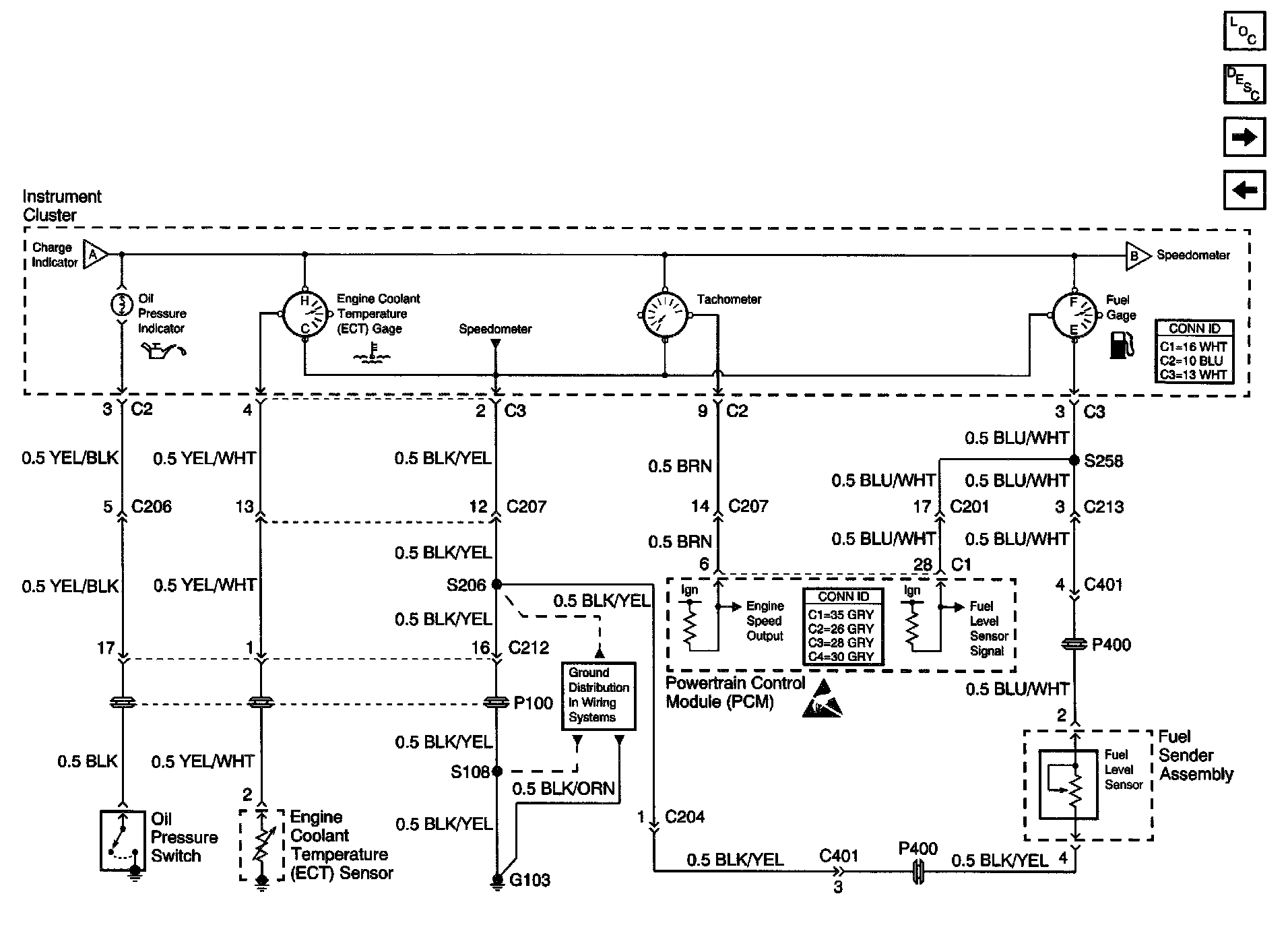

Instrument Cluster: Analog Schematics - ECT, Fuel Gages, Tachometer And Oil Indicator:
