6. Crankshaft Front Oil Seal Removal





1.Wrap the tip of the screwdriver with tape in order to protect the crankshaft from damage.

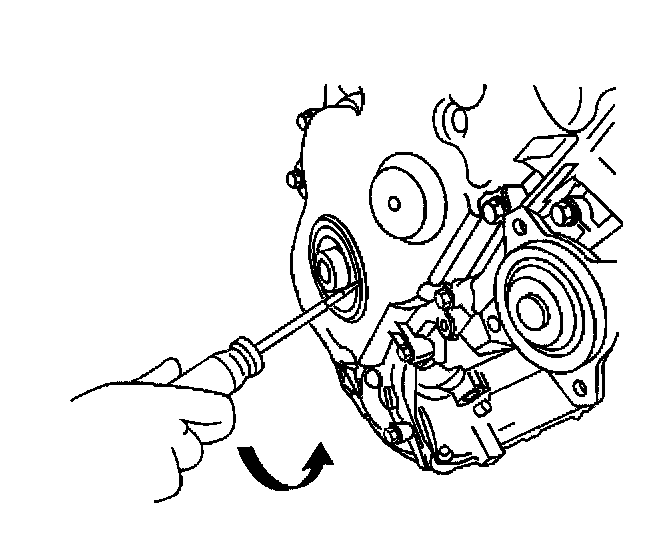

2.Carefully pry out the crankshaft front seal using a screwdriver.
