59. Crankshaft Pulley Installation

^ Tool(s) Required
- J 8614-01 Pinion Flange Holder

1. Lubricate the front seal and the sealing surface of the crankshaft pulley with Chassis Grease GM P/N 1051344 or equivalent.

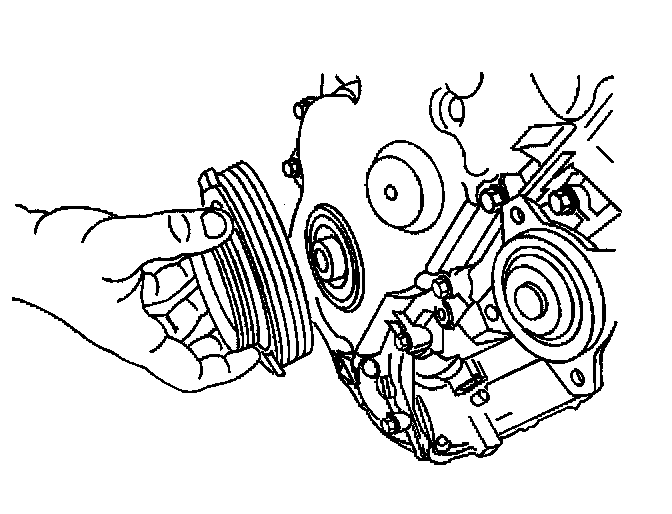

2. Install the crankshaft pulley onto the crankshaft indexing the keyway.





Notice: Refer to Fastener Notice in Service Precautions.

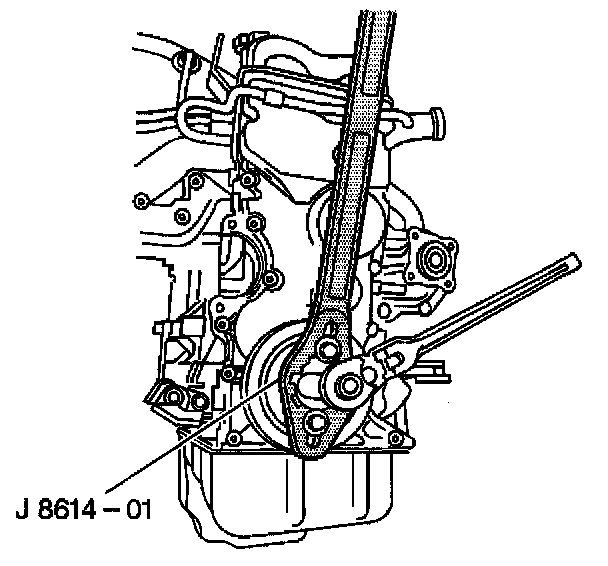

3. Install the crankshaft pulley retaining bolt using the J 8614-01 to prevent crankshaft rotation when tightening the bolt.
Tighten the bolt to 150 Nm (109 ft. lbs.).
