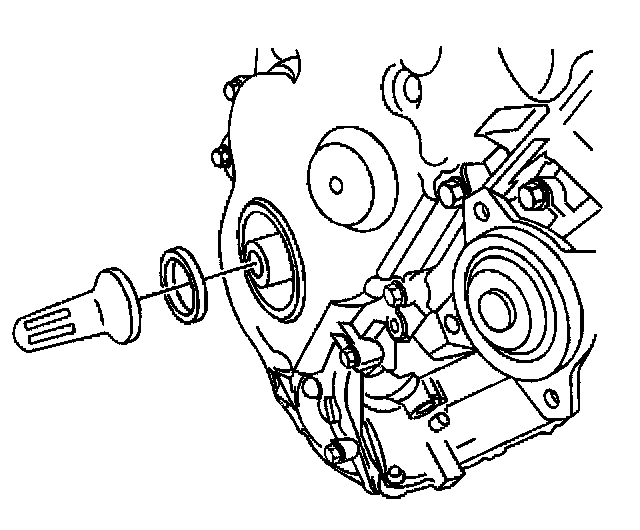

58. Crankshaft Front Oil Seal Installation

Installation Procedure
1. Lubricate the new crankshaft front oil seal with Chassis Grease GM P/N 1051344 or equivalent.





Important: Tap the oil seal in until its surface is flush with the crankshaft front oil seal retainer edge.

2. Using a hammer and an appropriate driver, lightly tap the crankshaft front oil seal into place.
