5. Crankshaft Pulley Removal

^ Tool(s) Required
- J 8614-01 Pinion Flange Holder

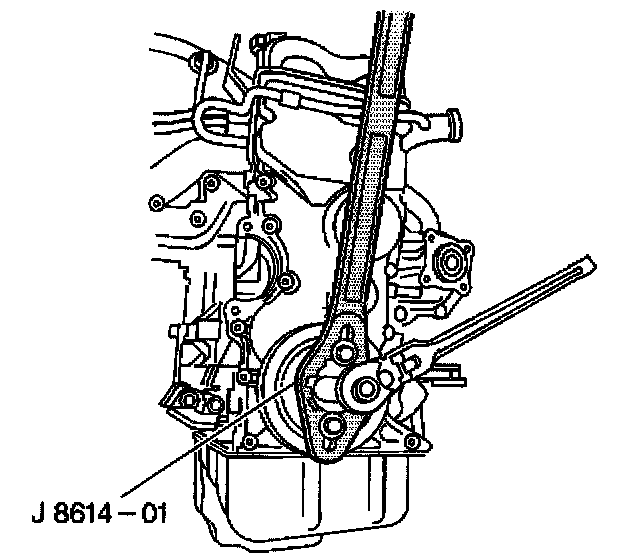

1. Remove the crankshaft pulley retaining bolt using the J 8614-01 to prevent crankshaft rotation when loosening the bolt.

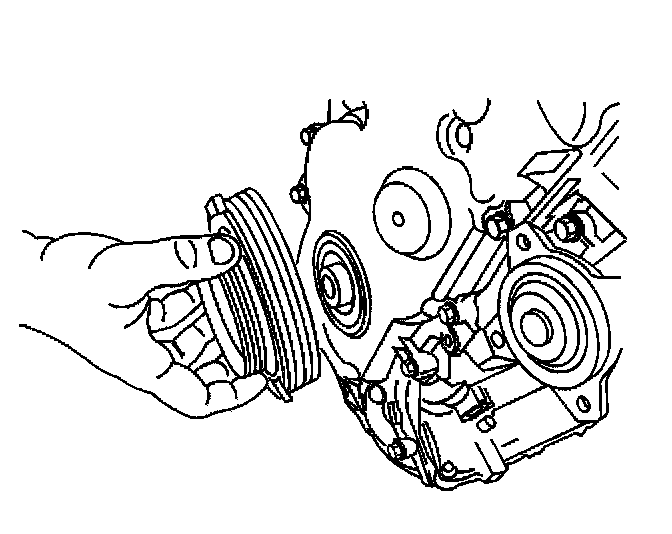

2. Remove the crankshaft pulley.
