Drive Belt Tensioner Replacement (Accessory)

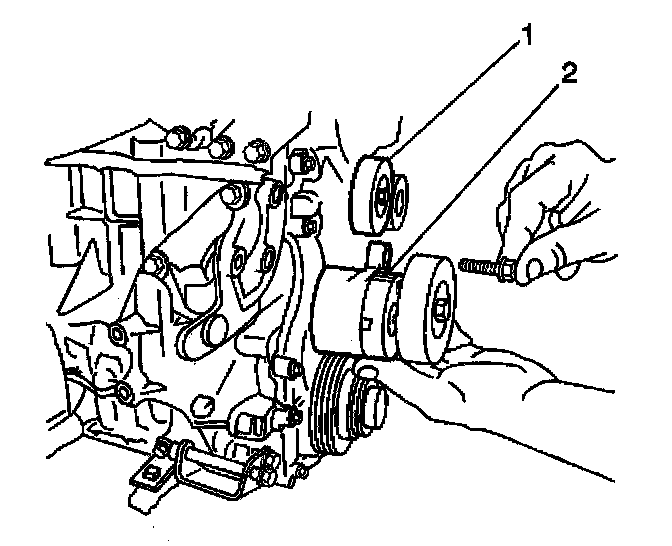

Removal Procedure

Caution: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the negative battery cable.
2. Remove the accessory drive belt.
3. Remove the 2 drive belt tensioner bolts.





4. Remove the drive belt tensioner (2).

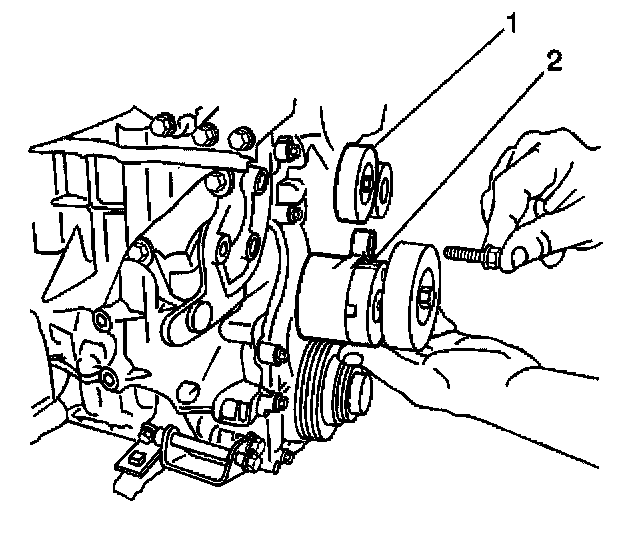

Installation Procedure





1. Install the drive belt tensioner (2).

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the drive belt tensioner bolts.
Tighten the 2 tensioner bolts to 25 Nm (19 ft. lbs.).
3. Install the accessory drive belt.
4. Connect the negative battery cable.
Tighten the bolt to 15 Nm (11 ft. lbs.).
