Engine Compartment Fan: Service and Repair

Removal Procedure

Caution: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the negative battery cable.

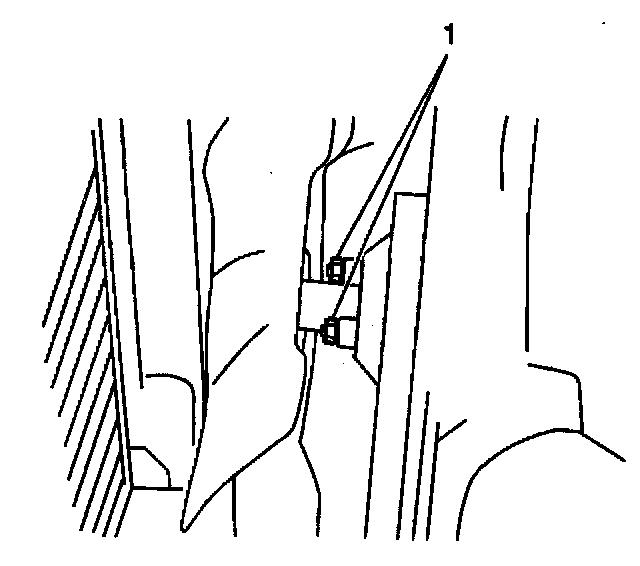

2. Remove the 4 fan nuts (1).
3. Remove the 4 radiator shroud clips.
4. Detach the power steering reservoir and reposition it aside.

Important: Do not damage the radiator when removing the fan.

5. Lean the shroud toward the engine.





6. Detach the fan from the pulley hub and remove the fan/clutch assembly.

Installation Procedure





1. Install the fan/clutch assembly to the vehicle.
2. Install the shroud and secure with the 4 clips.
3. Reposition and attach the power steering reservoir to the power steering reservoir bracket.
4. Install the fan/clutch assembly to the pulley hub.





Notice: Refer to Fastener Notice in Service Precautions.

5. Install the 4 fan nuts. Use a second wrench to hold the fan shaft.
Tighten the fan nuts to 11 Nm (97 inch lbs.).
6. Connect the negative battery cable.
Tighten the battery cable bolt to 15 Nm (11 ft. lbs.).
