Home >> Chevy Truck >> 1999 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Pistons, Piston Rings, Connecting Rods, and Cylinders

Pistons, Piston Rings, Connecting Rods, and Cylinders

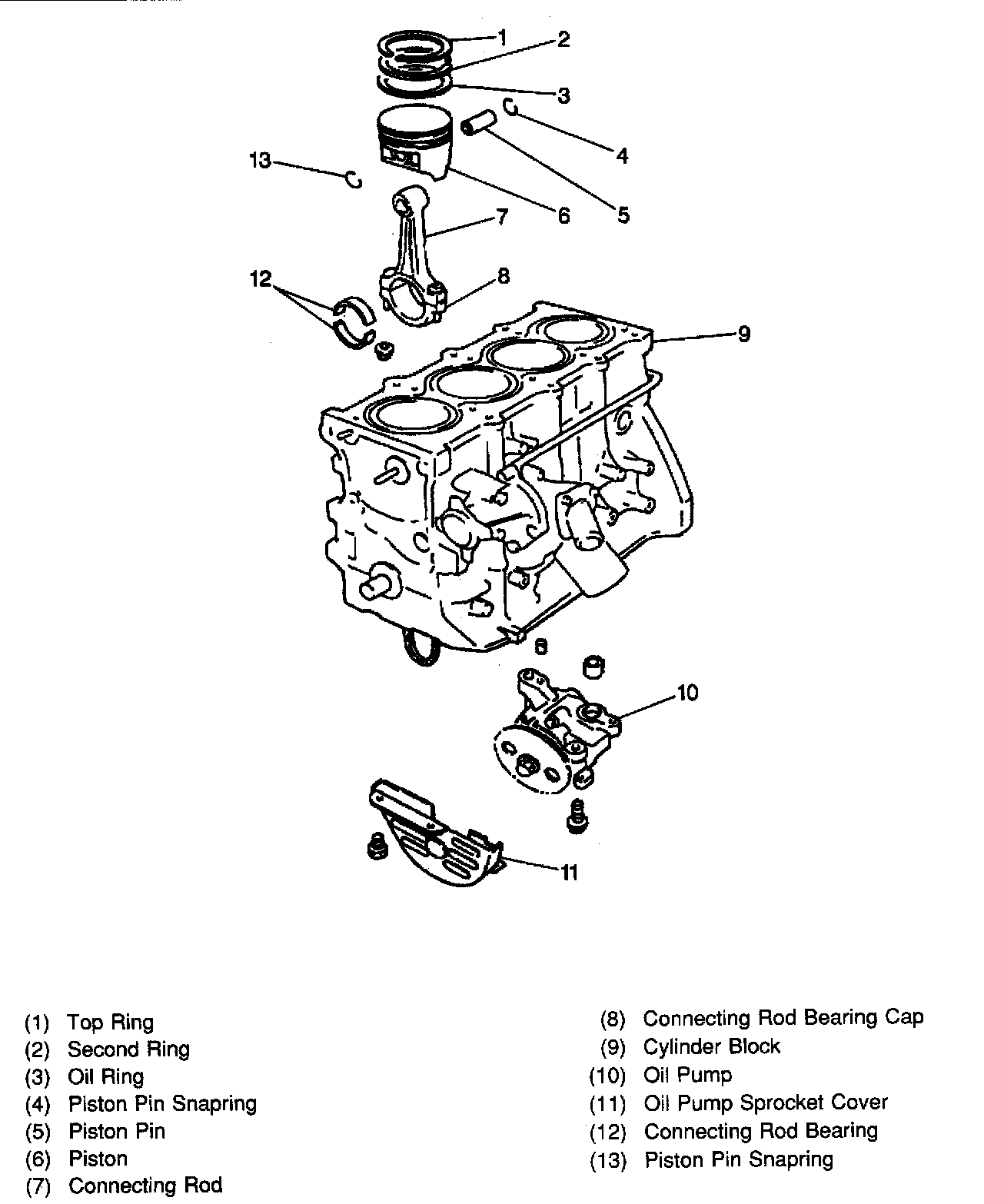

Pistons, Piston Rings, Connecting Rods, And Cylinders:
