Home >> Chevy Truck >> 1999 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Camshafts and Valve Lash Adjusters

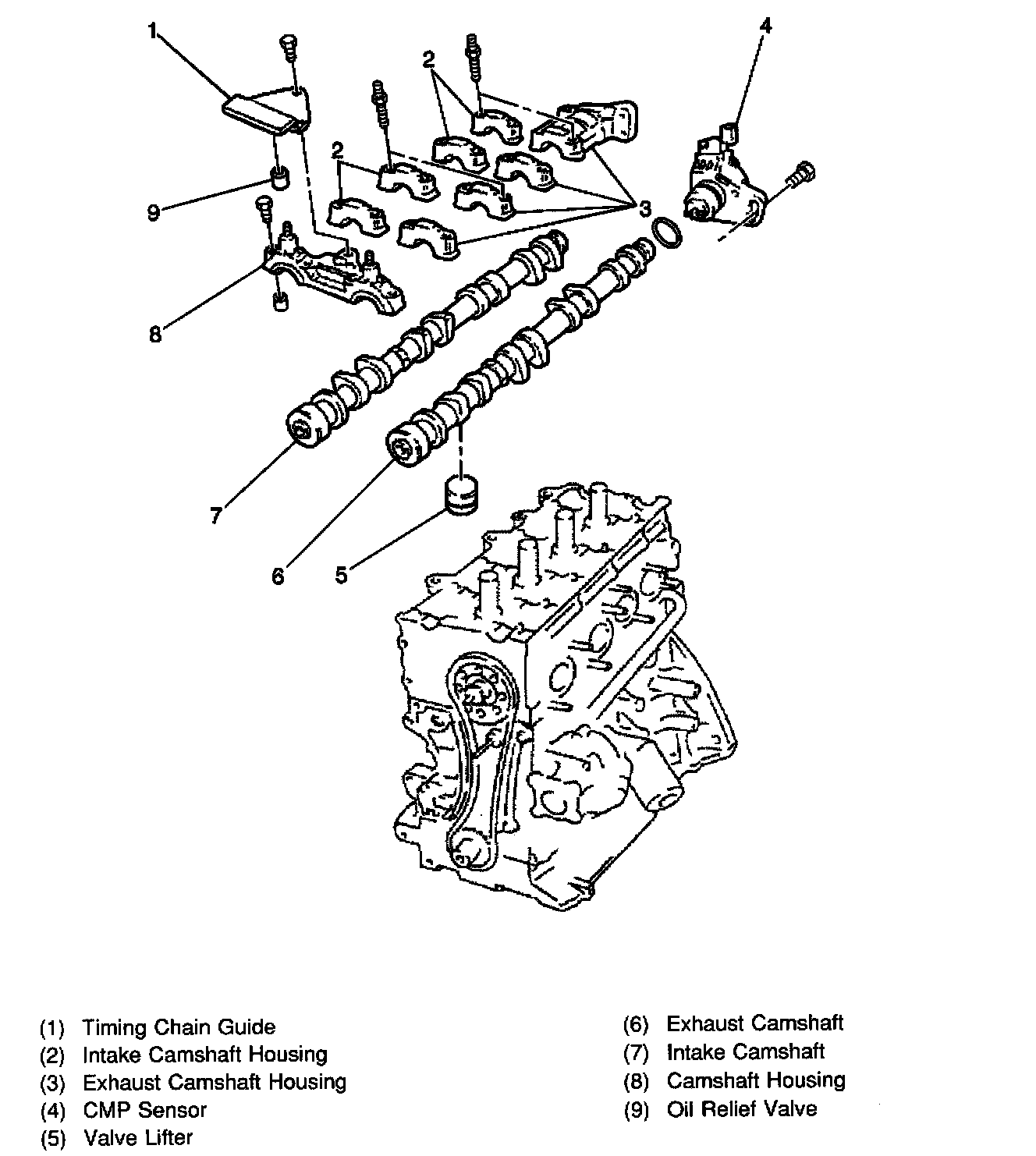

Camshafts and Valve Lash Adjusters

Camshafts And Valve Lash Adjusters:
