Power, Ground, Park Brake Switch, Generator

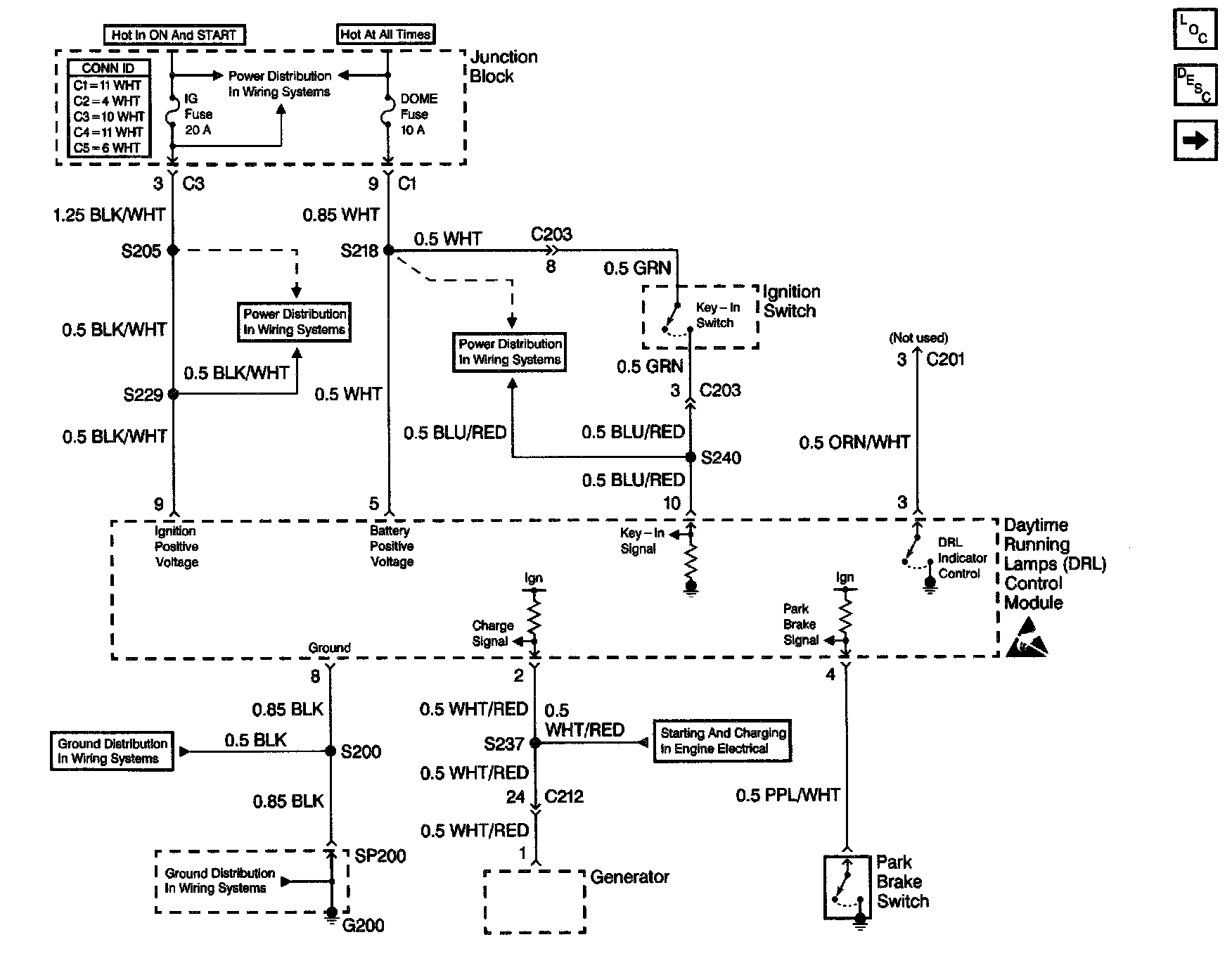

Headlights/Daytime Running Lights (DRL) Schematic: Power, Ground, Park Brake Switch, Generator:
