ABS, Brake, Seat Belt and Airbag Indicators

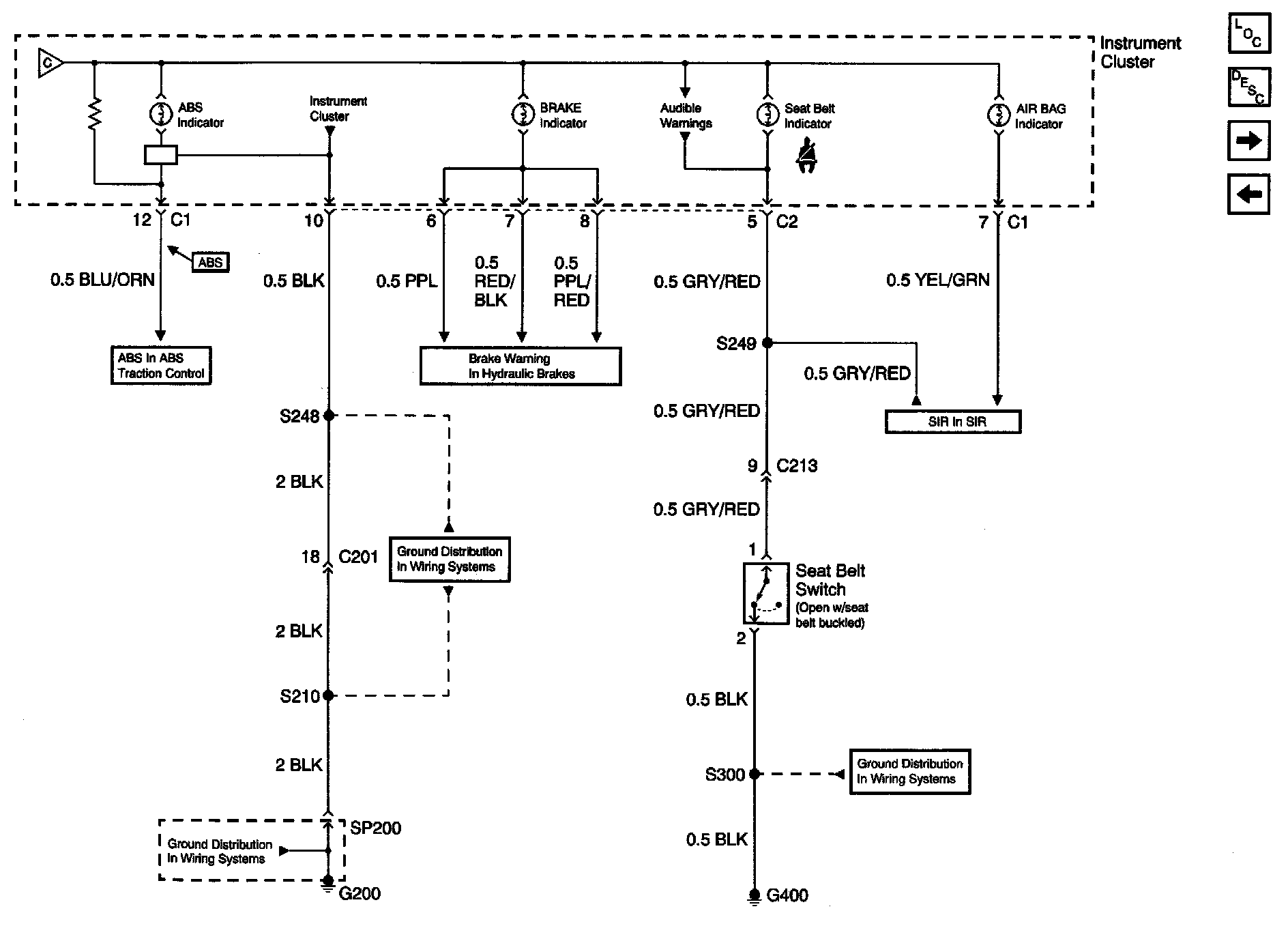

Instrument Cluster: Analog Schematics - ABS, Brake, Seat Belt And Airbag Indicators:
