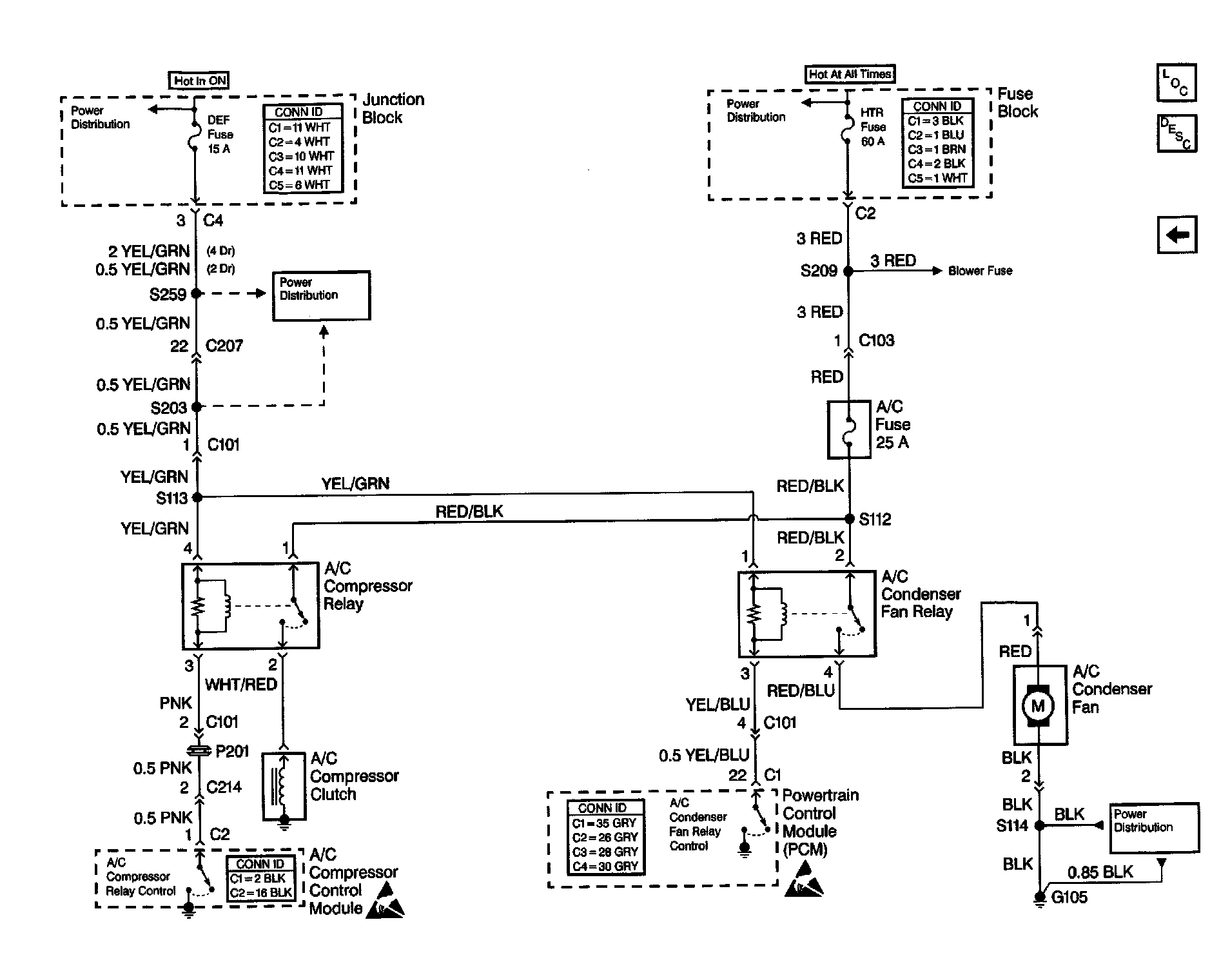

Compressor Clutch and Condenser Fan

HVAC Compressor/Condenser Fan Control Schematics: Compressor Clutch And Condenser Fan:
