Home >> Chevy Truck >> 1999 >> Tracker 2WD L4-2.0L VIN C >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Cruise Control >> VSS and O/D Cut Circuits

VSS and O/D Cut Circuits

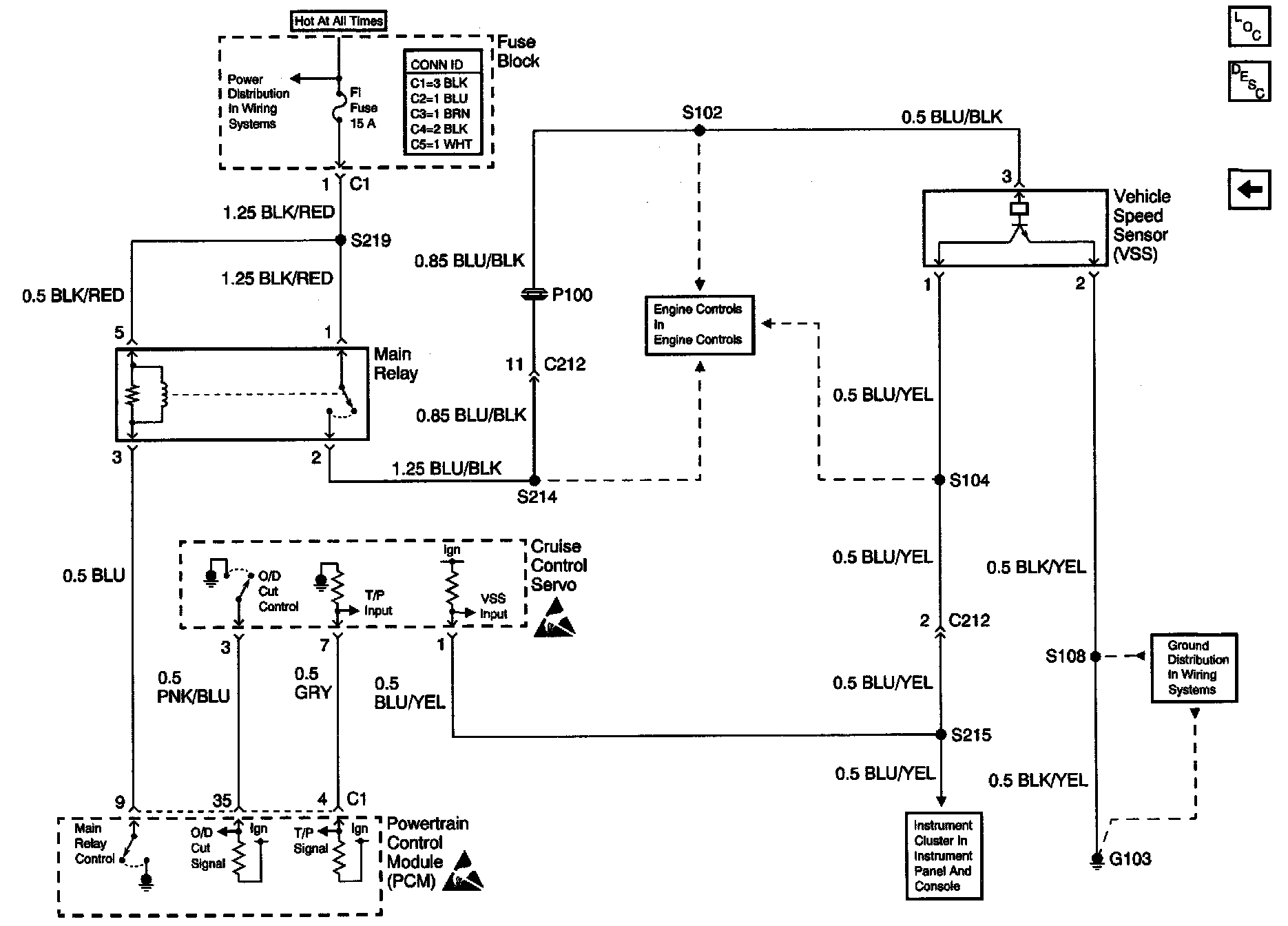

Cruise Control Schematics: VSS And O/D Cut Circuits:
