Proportioning Valve Replacement (ABS)

REMOVAL PROCEDURE

CAUTION: Refer to Brake Fluid Irritant Caution in Service Precautions.

NOTICE: Refer to Brake Fluid Damage to Electrical Connections Notice in Service Precautions.





1. Clean around the reservoir cap and remove fluid with a syringe or equivalent.

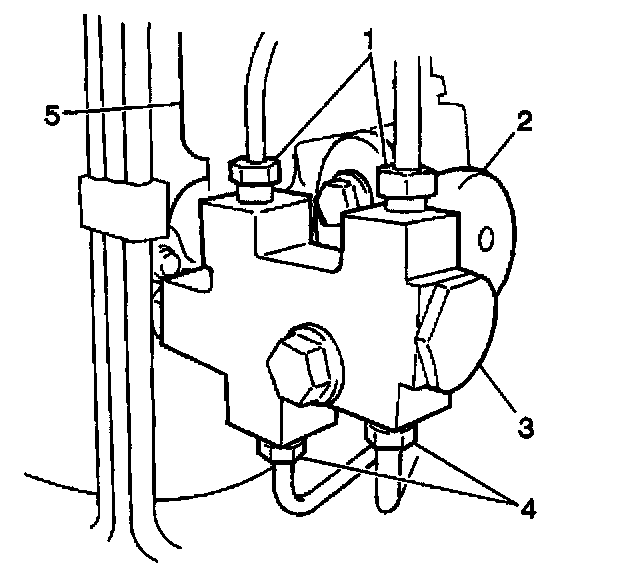

2. Disconnect the brake pipes (1) from the proportioning valve (3).

IMPORTANT: Do NOT disassemble the proportioning valve assembly.

3. Remove the proportioning valve.

INSTALLATION PROCEDURE

NOTICE: Refer to Fastener Notice in Service Precautions.





1. Install the proportioning valve (3).
^ Tighten the proportioning valve bracket bolt to 10 Nm (88.5 inch lbs.).
^ Tighten the proportioning valve bolt to 23 Nm (17 ft. lbs.).

2. Install the brake pipes to the proportioning valve.
^ Tighten the flair nuts (1) to 16 Nm (12 ft. lbs.).

3. Fill the brake fluid reservoir.
4. Bleed the air from the hydraulic brake system.
5. Perform a brake test and inspect each installed part for fluid leakage.
6. Inspect the brake pedal play.
