Rear Door: Service and Repair
REMOVAL PROCEDURE1. Remove the water deflector.
2. Remove the window outer sealing strip.
3. Remove the door weatherstrip.
4. Remove the door window channel.
5. Remove the door lock.
6. Remove the outside door handle.
7. Remove the door window regulator.
8. Remove the rear side door stationary window.
9. Remove the door check.
10. Remove the door molding.

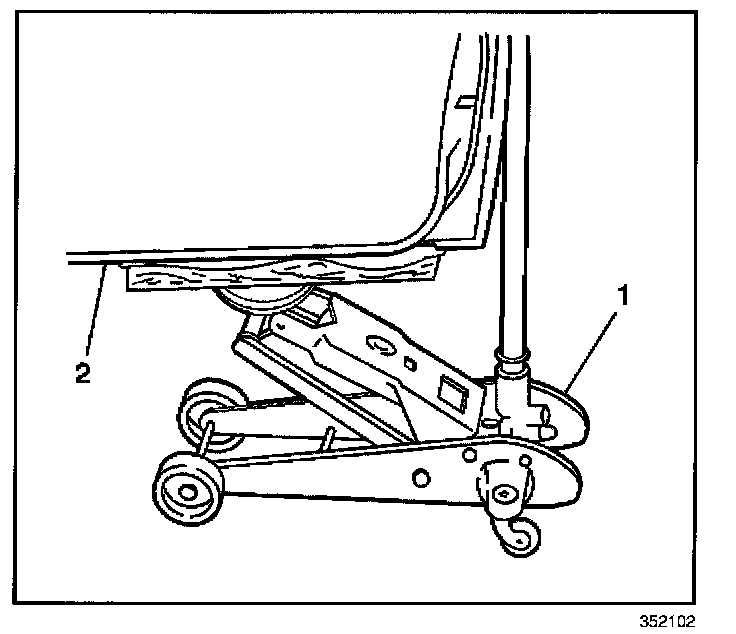

11. Support the rear side door (2) using a floor jack (1) and piece of wood.
12. Mark the position of the door to the hinges in order to ease the installation process.
13. Remove the 4 bolts which secure the door to the hinges.
14. Position the door away from the door jamb in order to gain the necessary clearance to remove the rear side door wiring harness grommet, if equipped.

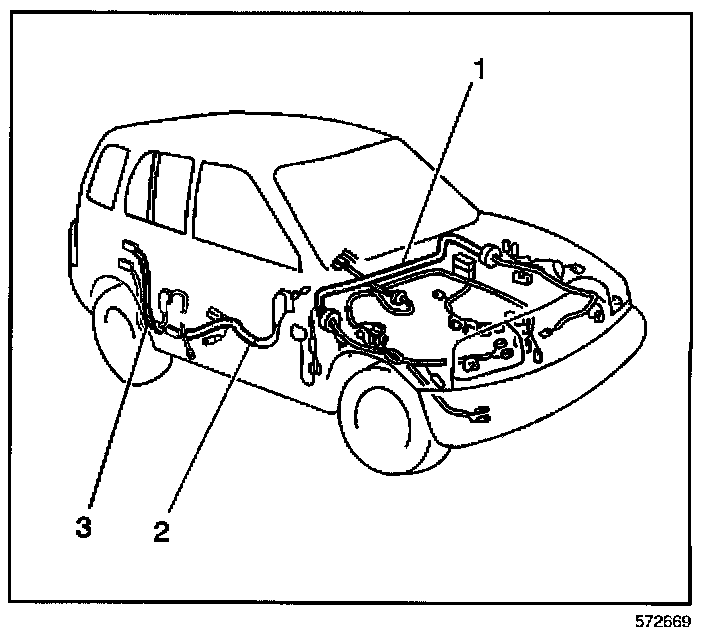

15. Unclip the plastic retainers which secure the rear side door wiring harness (3) to the rear side door, if equipped.
16. Release the door wiring harness grommet and unroute the wiring harness (3) from the door, if equipped.
17. Remove any remaining retainers from the rear side door.
18. Remove the rear side door from the vehicle.
INSTALLATION PROCEDURE
1. Install the retainers which were removed from the door.

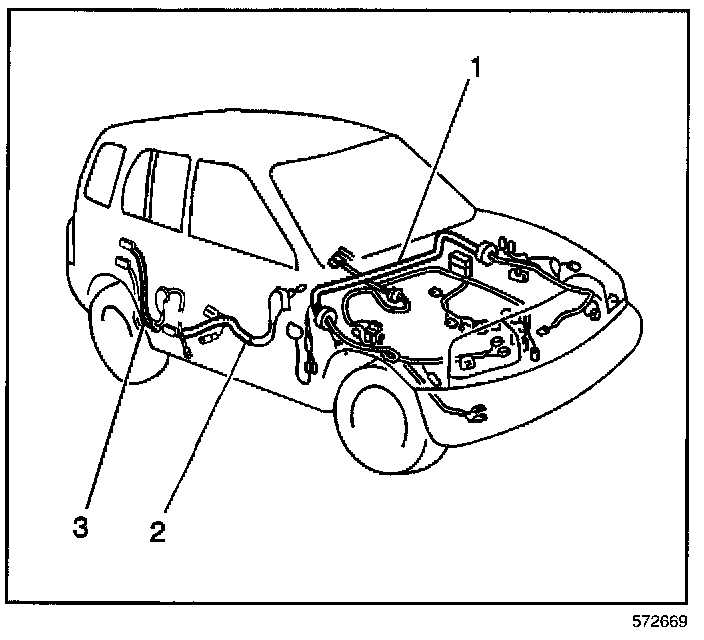

2. Position the rear side door near the door jamb in order to install the rear side door wiring harness (3) to the door, if equipped.
3. Route the door wiring harness (3) through the door and seat the grommet, if equipped. Secure the wiring harness to the door with the plastic retainers.
NOTE: Refer to Fastener Notice in Service Precautions.
4. Install the rear side door to the hinges. Align the match marks on the hinges in order to aid in the correct adjustment of the door. Secure the door to the hinges with the 4 bolts.
Tighten
Tighten the rear side door hinge bolts to 27 N.m (19 lb ft).
5. Remove the floor jack (1) and the piece of wood from the door (2).
6. Install the door molding.
7. Install the door check.
8. Install the rear side door stationary window.
9. Install the door window regulator.
10. Install the door lock.
11. Install the outside door handle.
12. Install the door window channel.
13. Install the door weatherstrip.
14. Install the window outer sealing strip.
15. Install the water deflector.
16. Adjust the rear side door striker, as needed. Refer to Door Striker Replacement - Rear Door.
