Diagnostic Check - Antenna

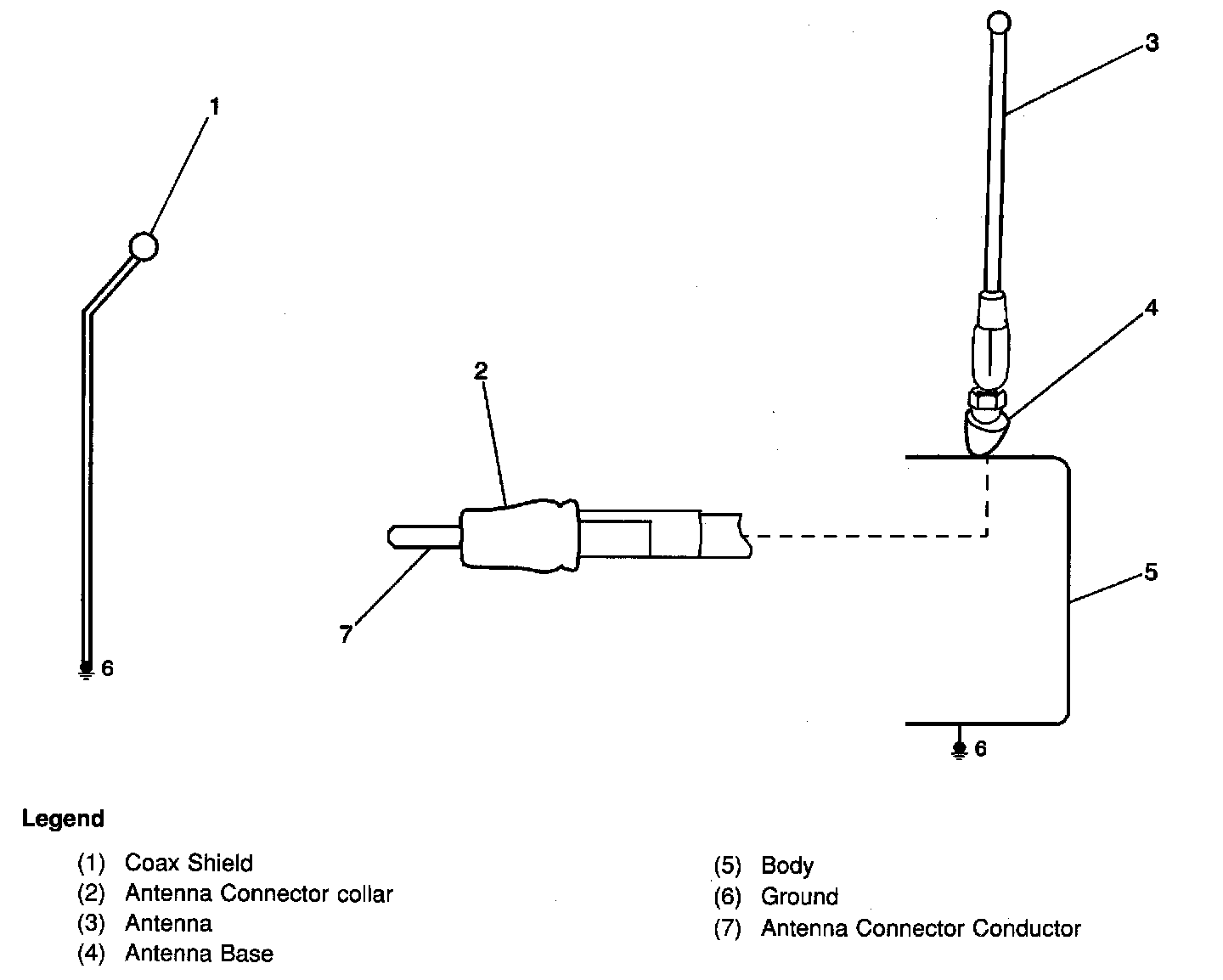

Antenna And Antenna Lead Wire:

Antenna Diagnostic Check

Digital Multimeter Probes at points: Resistance measured in ohms
7 and 3 less than 0.15
7 and 1 infinite
7 and 2 infinite
7 and 4 infinite
7 and 5 infinite
7 and 6 infinite
2 and 6 less than 0.5
