2-Door

REMOVAL PROCEDURE




1. Remove the rear quarter lower trim panel.

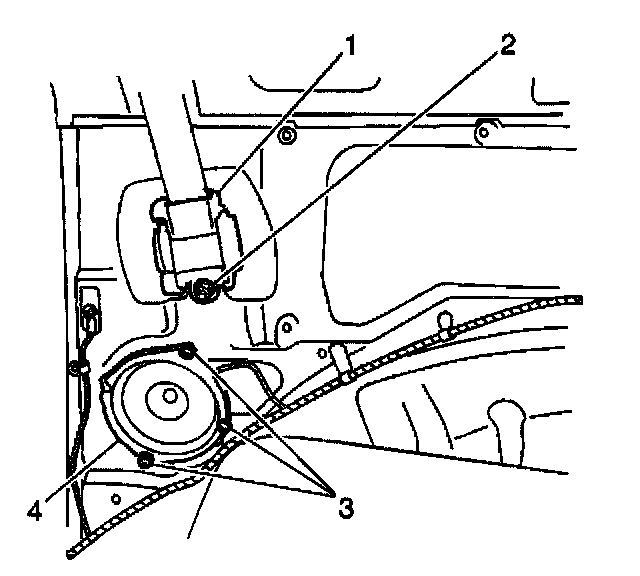

2. Remove the 3 screws (3) which secure the rear speaker (4) to the body.

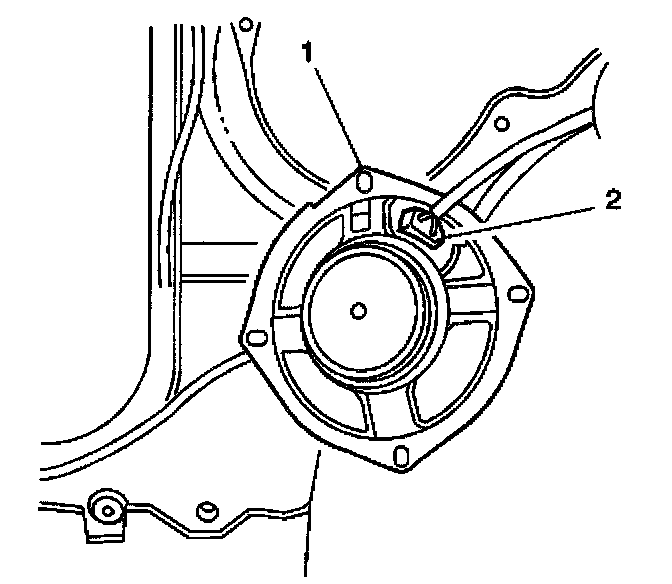

3. Disconnect the rear speaker electrical connector (2).
4. Remove the rear speaker (1) from the vehicle.

INSTALLATION PROCEDURE




1. Connect the rear speaker electrical connector (2).




2. Install the rear speaker (4) to the vehicle. Secure the speaker with the 3 screws (3).
3. Install the rear quarter lower trim panel.
