Speaker Replacement - Front Door

REMOVAL PROCEDURE
1. Remove the front side door trim panel from the door.

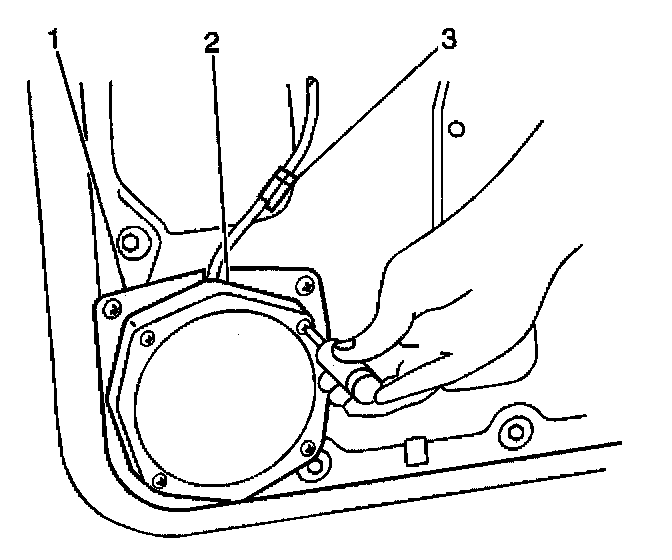

2. Remove the 4 screws which secure the front speaker (2) to the front speaker bracket (1).
3. Disconnect the front speaker electrical connector (3).
4. Remove the front speaker (2) from the vehicle.

INSTALLATION PROCEDURE
1. Connect the front speaker electrical connector (3).
2. Install the front speaker (2) to the front speaker bracket (1). Secure the speaker with the 4 screws.
3. Install the front side door trim panel to the door.
