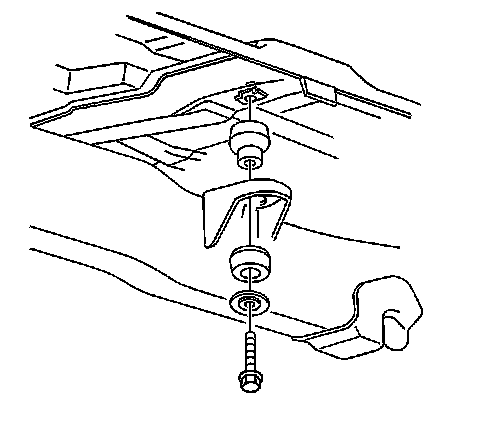

Body Mount Replacement (4 Door Utility Body Mount)

Body Mount Replacement (4 Door Utility Body Mount)

Removal Procedure

Properly support the frame when you change the body mounts. If only one mount is changed, lower the entire side on which the mount in placed in order to provide clearance for the mount.

1. Raise the vehicle slightly on a hoist. Refer to Vehicle Lifting.




2. Place jack stands under the body on the side of the vehicle that the mounts will be placed.




3. Remove the body mount bolts.
4. Remove the retainer.
5. Remove the lower cushion.
6. Lower the hoist enough in order to leave the body supported by the jack stands.
7. Remove the upper cushion.
8. Remove the shims, if equipped.

Installation Procedure




1. Install the shims, if equipped.
2. Install the upper cushion.
3. Raise the frame slightly on the hoist.
4. Install the lower cushion.

Notice: Refer to Fastener Notice in Service Precautions.

5. Install the body mount bolts.

Tighten the bolts to 70 N.m (52 lb ft).

6. Lower the hoist.
