Wiper Motor Cover Replacement

REMOVAL PROCEDURE




1. Remove the wiper arms.
2. Remove the air inlet grille panel.

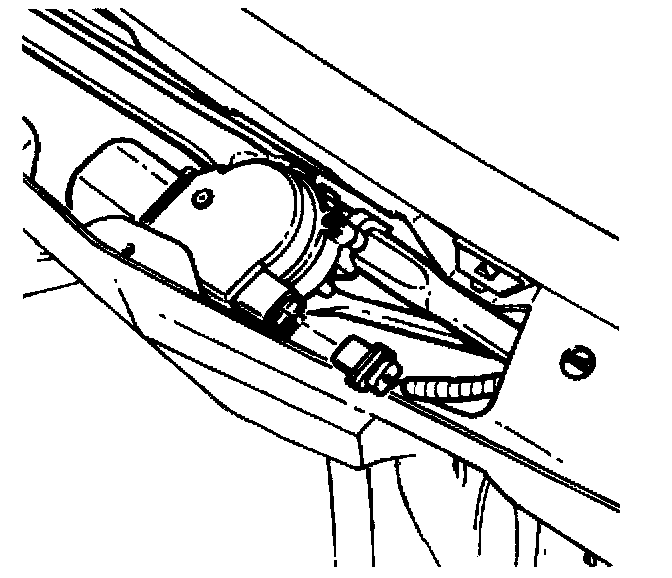

3. Remove the electrical connector from the wiper motor.

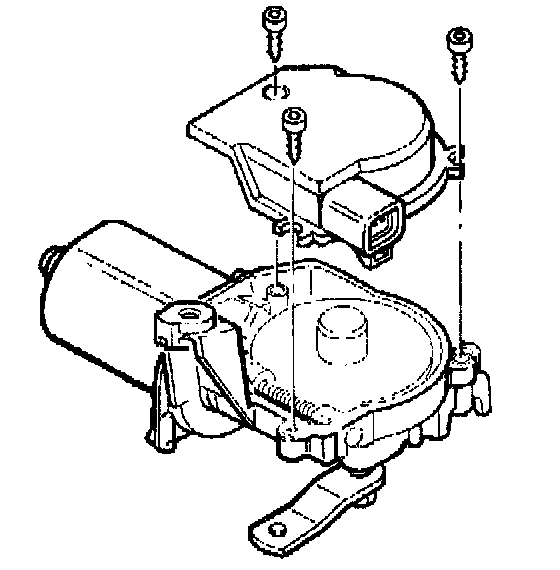

4. Remove the three screws and the wiper motor cover from the wiper motor.

INSTALLATION PROCEDURE





NOTE: Refer to Fastener Notice in Cautions and Notices.

1. Install the wiper motor cover onto the wiper motor with the three screws.

Tighten
Tighten the screws to 2.5 N.m (22 lb in).




2. Connect the electrical connector to the wiper motor.
3. Install the air inlet grille panel.
4. Install the wiper arms.
5. Operate the wipers and check for proper operation.
