Engine Flywheel Replacement

Removal Procedure
1. Remove the transmission assembly.

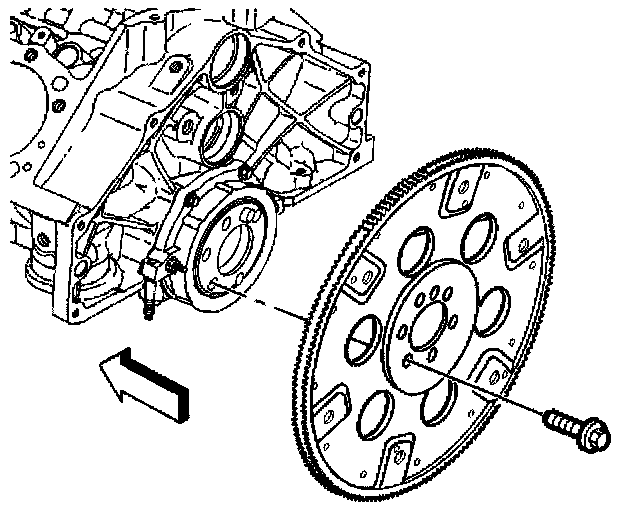

2. Remove the bolts and the engine flywheel.
3. Clean and inspect all parts.

Installation Procedure

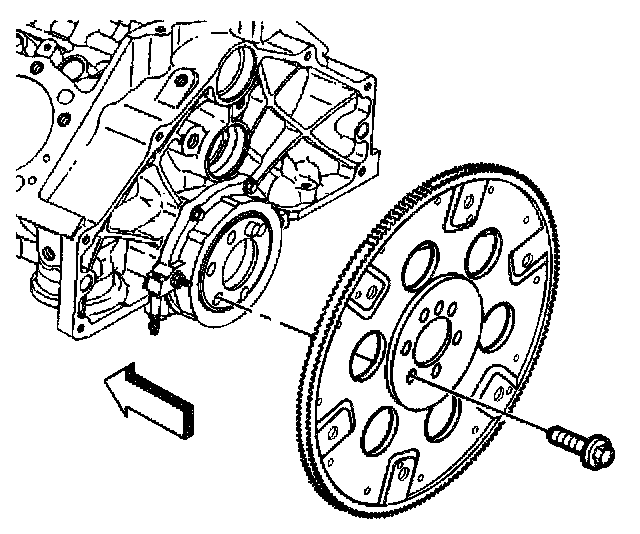

1. Install the engine flywheel to the crankshaft.
2. Align the locator hole to the pin.

Notice: Refer to Fastener Notice in Service Precautions.





3. Install the engine flywheel bolts.

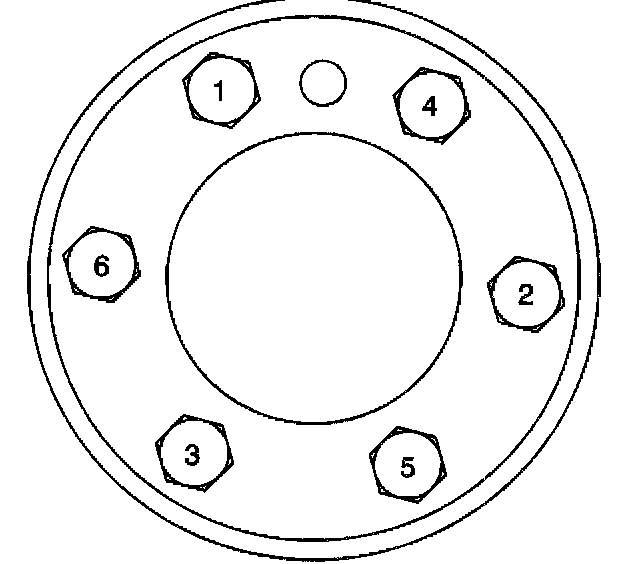

^ Tighten the engine flywheel bolts in sequence to 100 Nm (74 ft. lbs.).
4. Install the transmission assembly.
