Crankshaft Position Timing Ring: Service and Repair

Removal Procedure





1. Remove the engine front cover.

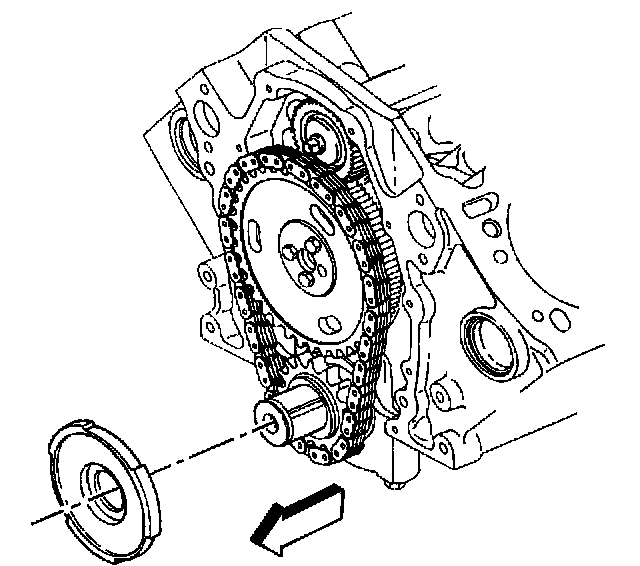

2. Remove the crankshaft position sensor reluctor ring.

Installation Procedure

Notice: Failure to properly align the crankshaft position sensor reluctor ring may result in component damage and effect OBD II system performance.

Important: The reluctor ring is shaped like a dish.

The dish must face the engine front cover. Failure to do so will damage the front cover and the reluctor ring.





1. Install the crankshaft position sensor reluctor ring.

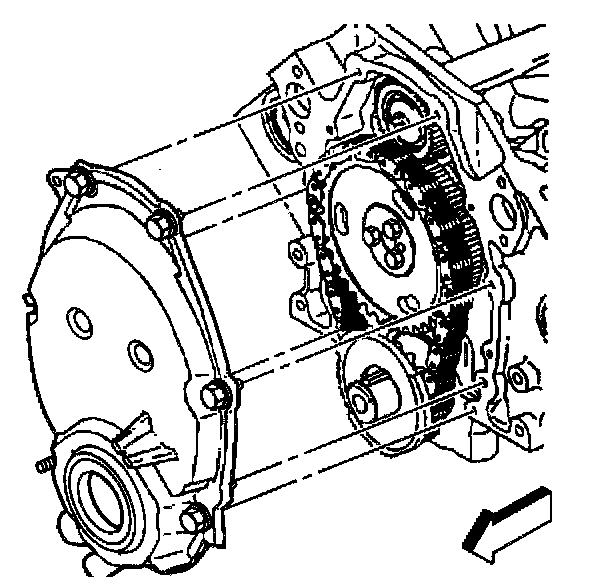

2. Install the engine front cover.
