Air Cleaner Fresh Air Duct/Hose: Service and Repair

REMOVAL PROCEDURE





CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

1. Disconnect the negative battery cable.
2. Remove the engine cover.

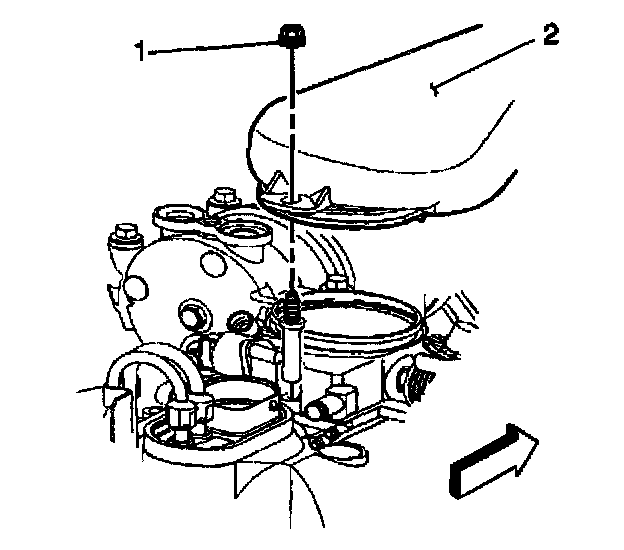

3. Remove the air cleaner outlet retaining nut (1).
4. Remove the air cleaner outlet duct (2) from the throttle body assembly.




5. Disconnect the IAT sensor harness connector.




6. Loosen the air cleaner outlet duct from the MAF sensor.
7. Remove the air cleaner outlet duct.

INSTALLATION PROCEDURE





NOTE: Handle the MAF sensor carefully. Do not drop the MAF sensor. Do not damage the screen located at the air inlet end of the MAF. Do not touch the sensing elements. Do not allow solvents and lubricants to come in contact with the sensing elements. Use a small amount of SPO P/N 12345884 lubricant or the soap based equivalent in order to aid in the installation.

1. Install the air cleaner outlet duct to the MAF sensor.




2. Connect the IAT sensor harness connector.




3. Install the air cleaner outlet duct (2) on the throttle body assembly.

NOTE: Refer to Fastener Notice in Service Precautions.

4. Tighten the retaining nut (1).

Tighten
Tighten the nut 2 N.m (18 lb in).

5. Install the engine cover.
6. Connect the negative battery cable.
