Crankshaft Rear Oil Seal and Housing Replacement (Oil Seal)

Removal Procedure
1. Remove the transmission assembly.
2. Remove the flywheel.
3. Remove the crankshaft rear oil seal from the crankshaft rear oil seal housing.

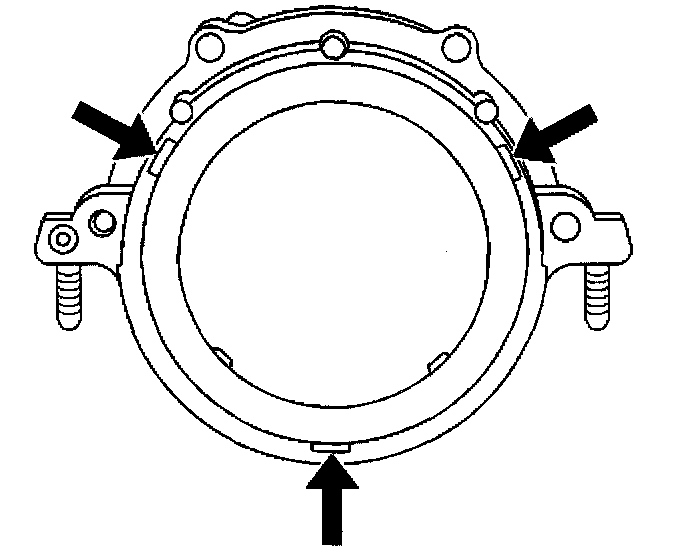

Insert a suitable tool into the access notches and then carefully pry the crankshaft rear oil seal from the crankshaft rear oil seal housing.
4. Discard the crankshaft rear oil seal.





5. Clean off any dirt or rust in the area.

Installation Procedure

^ Tools Required
- J 35621-B Rear Main Seal Installer

Important: Do not oil or grease the crankshaft rear oil seal lip.





1. Use the J 35621-B in order to install the NEW crankshaft rear oil seal.
2. Install the flywheel.
3. Install the transmission assembly.
