Engine Mount Replacement (Front)

Removal Procedure

Notice: Broken or deteriorated mounts can cause misalignment and destruction of certain drive train components. When a single mount breaks, the remaining mounts are subjected to abnormally high stresses.

1. Remove the upper fan shroud.
2. Raise the vehicle. Refer to Vehicle Lift Points.

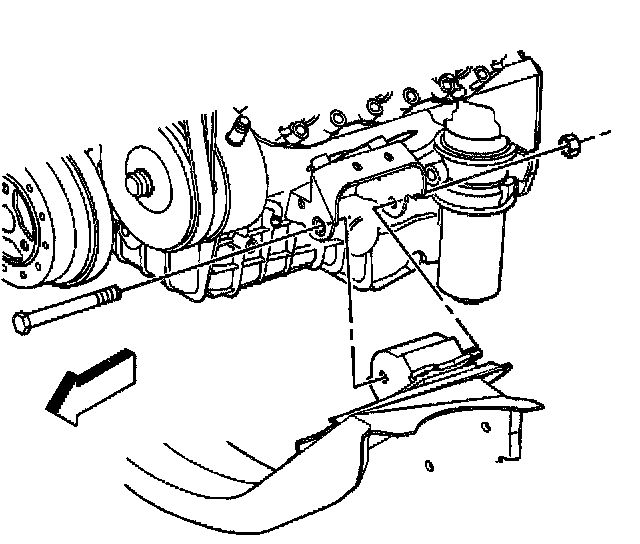

3. Remove the engine mounting through-bolt and nut (left side shown).

Notice: When raising or supporting the engine for any reason, do not use a jack under the oil pan, any sheet metal, or crankshaft balancer. Jacking against the oil pan may cause it to crack or break.

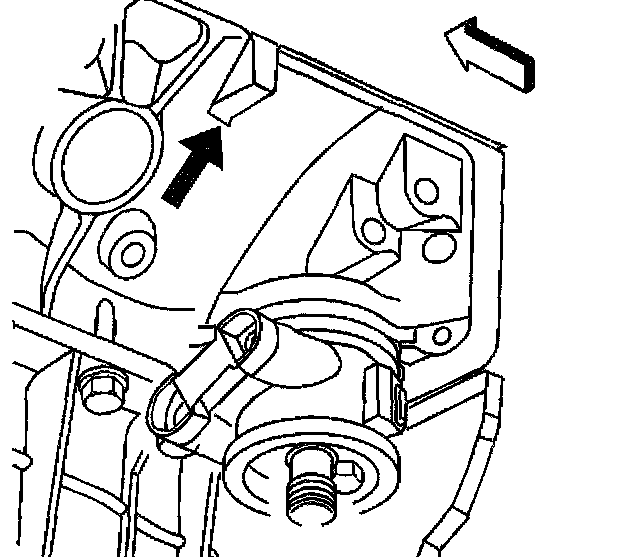

4. Using a jack on the square tab (left side shown) at the rear of the engine block, raise the engine. In order to access the square tab on the right side remove the starter.
5. Raise the engine only enough to permit removal of the engine mount.
6. Check for interference between the rear of the engine and the dash panel.

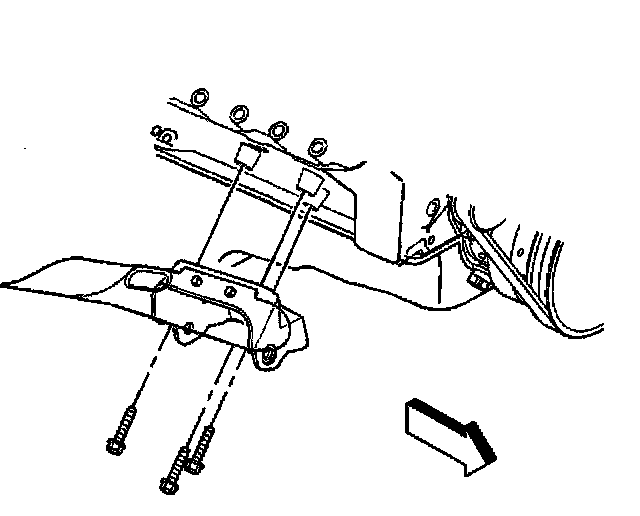

7. Remove the engine mount to engine mount frame bracket bolts (right side shown).
8. Remove the engine mount.

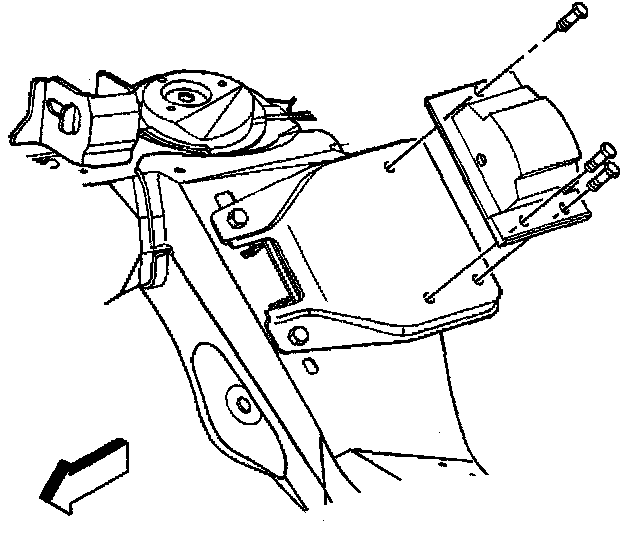

9. In order to remove the engine mount engine bracket (right side shown) use the following procedure:
9.1. Remove the engine mount engine bracket bolts.
9.2. Remove the bracket.
9.3. Remove the heat shield, if necessary.

Installation Procedure

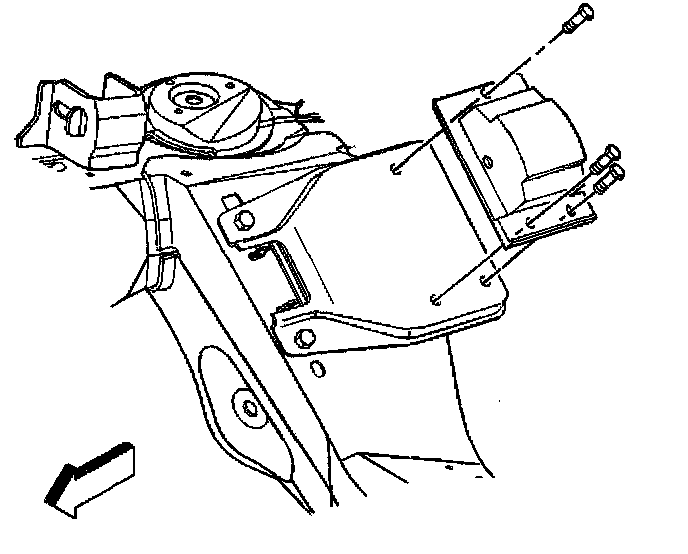

1. In order to install the engine mount engine bracket (right side shown) use the following procedure:

Notice: Refer to Fastener Notice in Service Precautions.

1.1. Install the heat shield and bolts.
^ Tighten the heat shield bolts to 6 Nm (53 inch lbs.).
1.2. Install the engine mount engine bracket and bolts.
^ Tighten the engine mount engine bracket bolts to 51 Nm (38 ft. lbs.).





2. Install the engine mount.

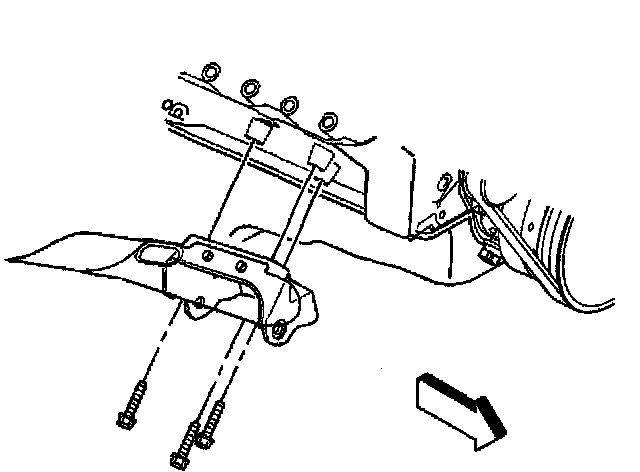

3. Install the engine mount to engine mount frame bracket bolts.
^ Tighten the engine mount frame bracket bolts to 58 Nm (43 ft. lbs.).
4. Lower the engine until the engine mounting through-bolt can be inserted.

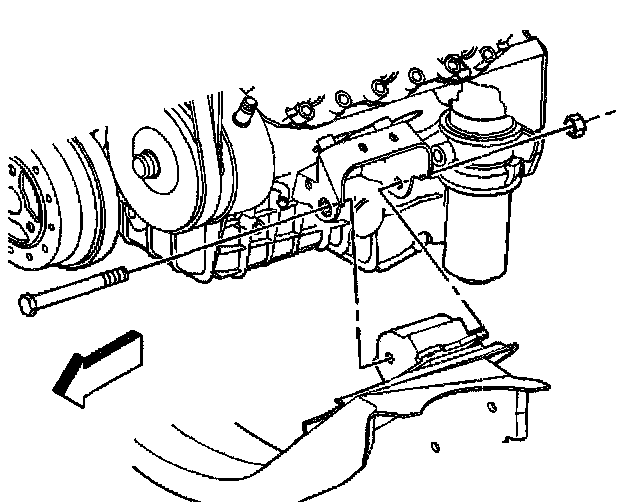

5. Install the engine mount through-bolt and the nut (left side shown).
^ Tighten the engine mount through-bolt nut to 68 Nm (50 ft. lbs.).
6. Install the starter, if removed.
7. Lower the vehicle.
8. Install the upper fan shroud.
