Engine Mount Replacement (Frame Bracket)

Removal Procedure

Notice: When raising or supporting the engine for any reason, do not use a jack under the oil pan, any sheet metal, or crankshaft balancer. Jacking against the oil pan may cause it to crack or break.





1. Remove the engine mount.

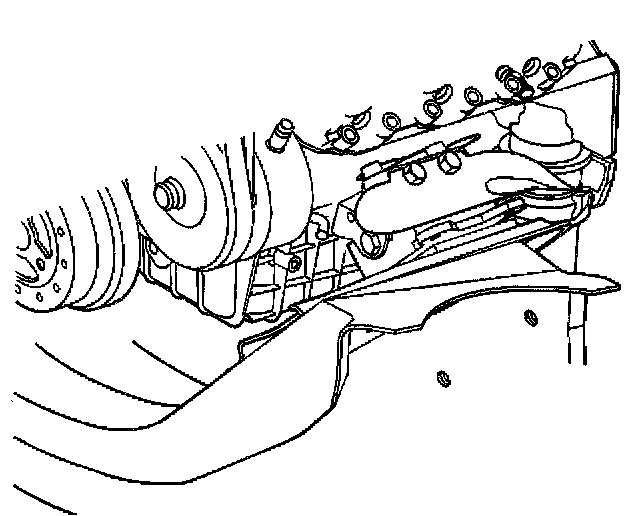

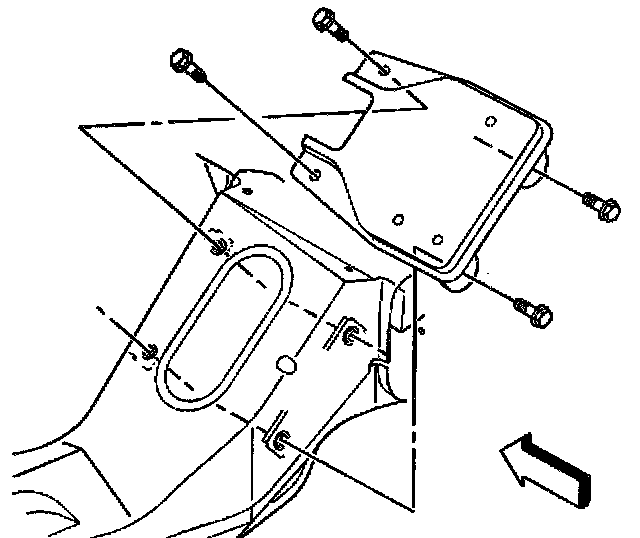

2. Remove the bolts holding the engine mount frame bracket to the frame (right side shown).
3. Remove the engine mount frame bracket.

Installation Procedure
1. Install the engine mount frame bracket.

Notice: Refer to Fastener Notice in Service Precautions.

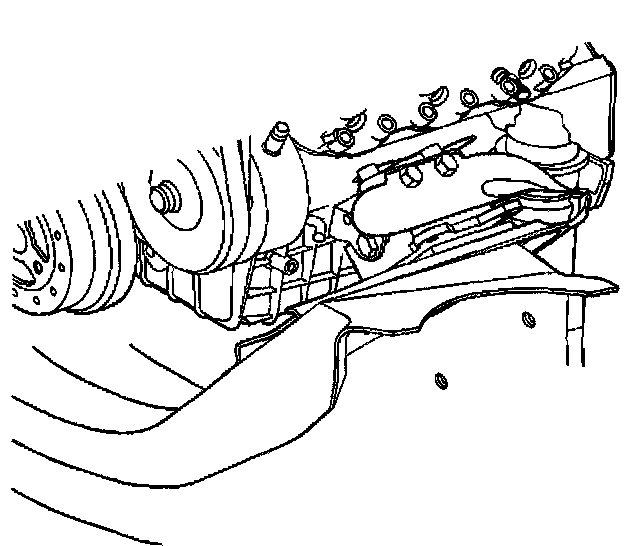

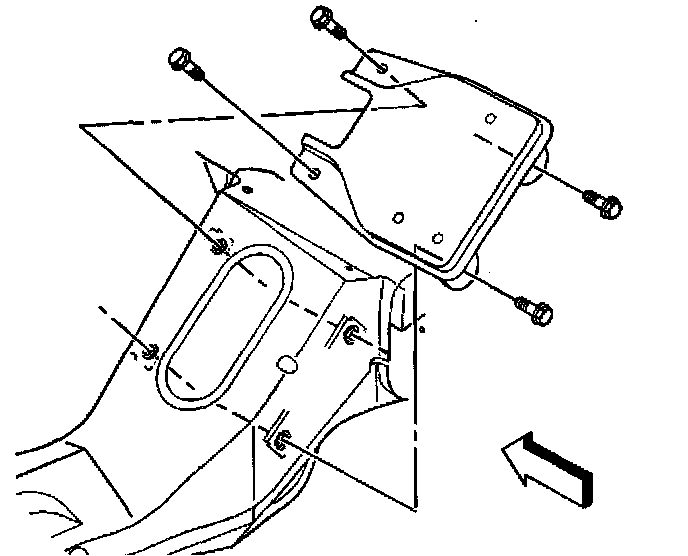

2. Install the engine mount frame bracket bolts.
^ Tighten the engine mount frame bracket bolts to 45 Nm (33 ft. lbs.).





3. Install the engine mount.
