Accessory Mounting Brackets Replacement (Power Steering Pump)
Removal Procedure1. Remove the fan shroud.
2. Remove the drive belt.
Important: Do not evacuate the air conditioning system.

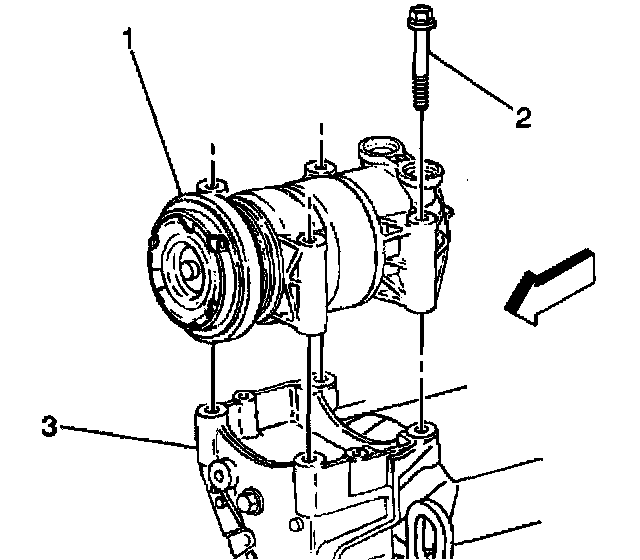

3. Remove the mounting bolts (2) for the air conditioning compressor (1), if equipped.
4. Move the compressor aside and support.
5. Remove the drive belt idler pulley if not equipped with A/C.
6. Remove the power steering pump pulley.

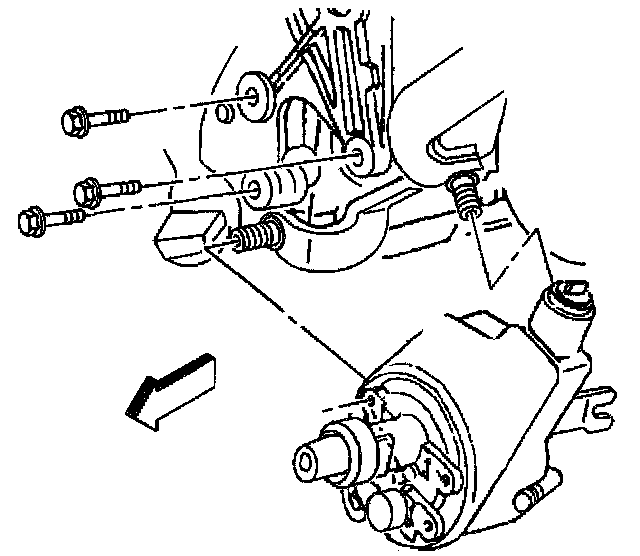

7. Remove the three bolts holding the power steering pump to the power steering pump mounting bracket.
The power steering pump can remain on the engine.

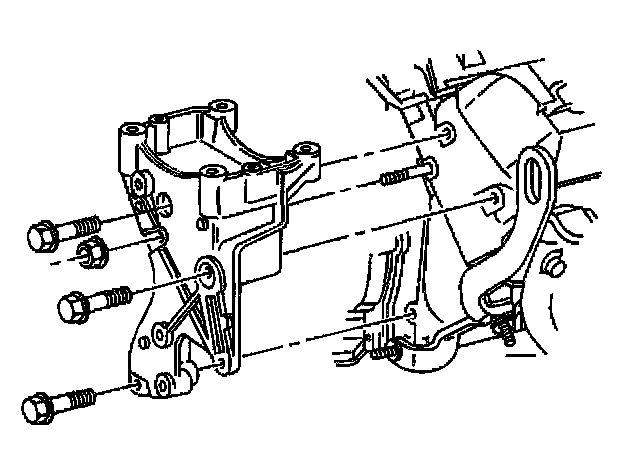

8. Remove the three bolts and nut holding the power steering pump mounting bracket to the engine.
9. Slide the power steering pump mounting bracket off the stud and power steering pump.
Installation Procedure
1. Slide the power steering pump mounting bracket on the stud and the power steering pump.
Notice: Refer to Fastener Notice in Service Precautions.

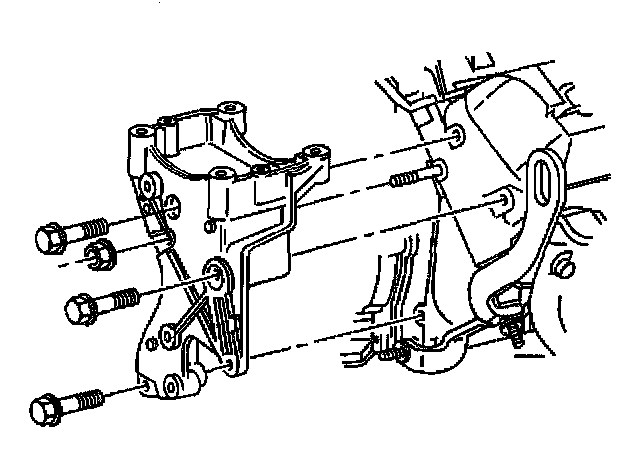

2. Install the three bolts and the nut.
^ Tighten the power steering pump mounting bolts and nut to 41 Nm (30 ft. lbs.).
3. Install the three bolts for the power steering pump.
^ Tighten the power steering pump mounting bracket to power steering pump bolts to 50 Nm (37 ft. lbs.).
4. Install the power steering pump pulley.
5. Install the air conditioning compressor, if equipped.
6. Install the drive belt idler pulley if not equipped with A/C.
7. Install the drive belt.
8. Install the fan shroud.
