Chevy Truck
>>
1999
>>
Express 1/2 Ton Van V6-4.3L VIN W
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
Engine

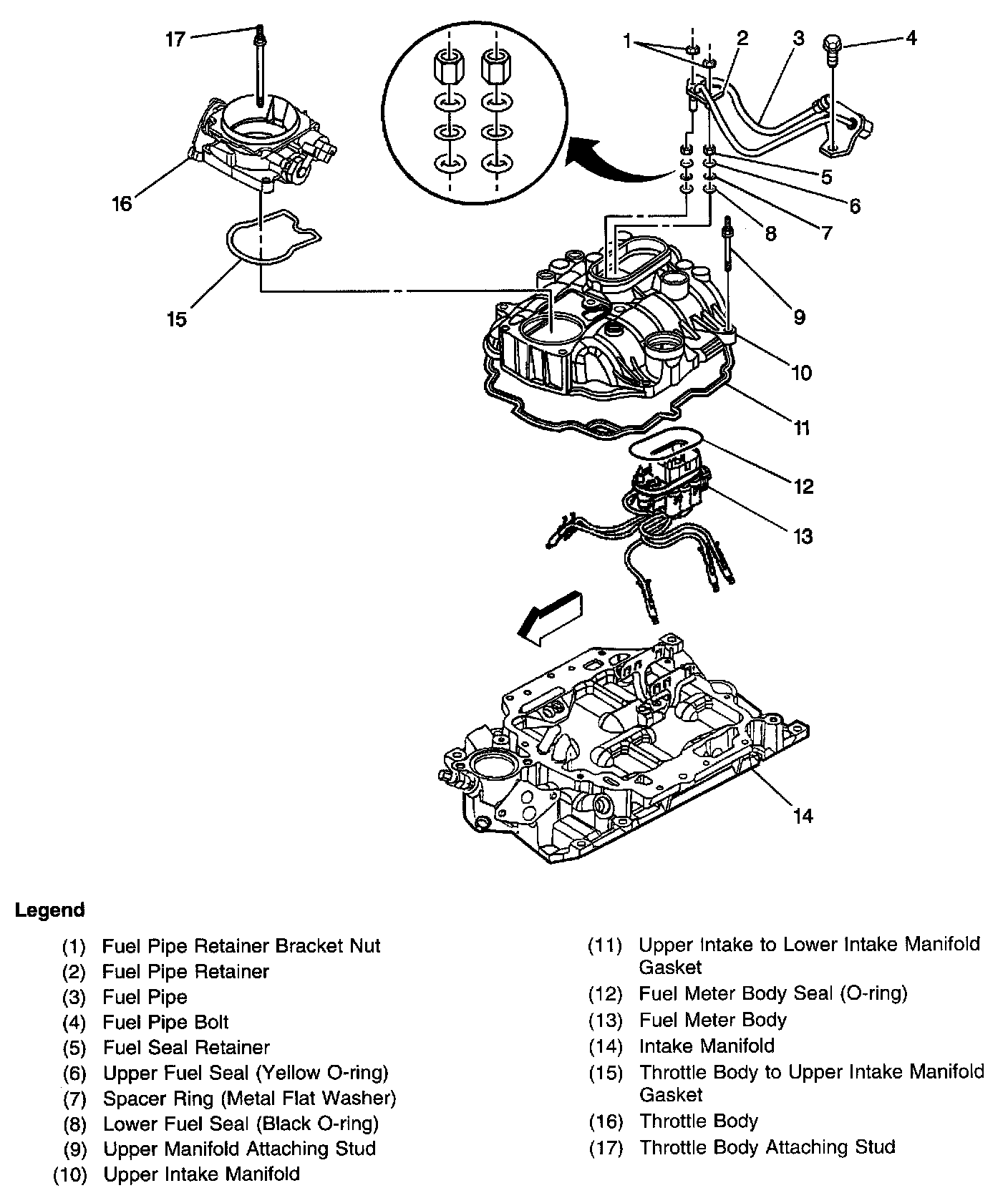

Upper and Lower Intake Manifold View

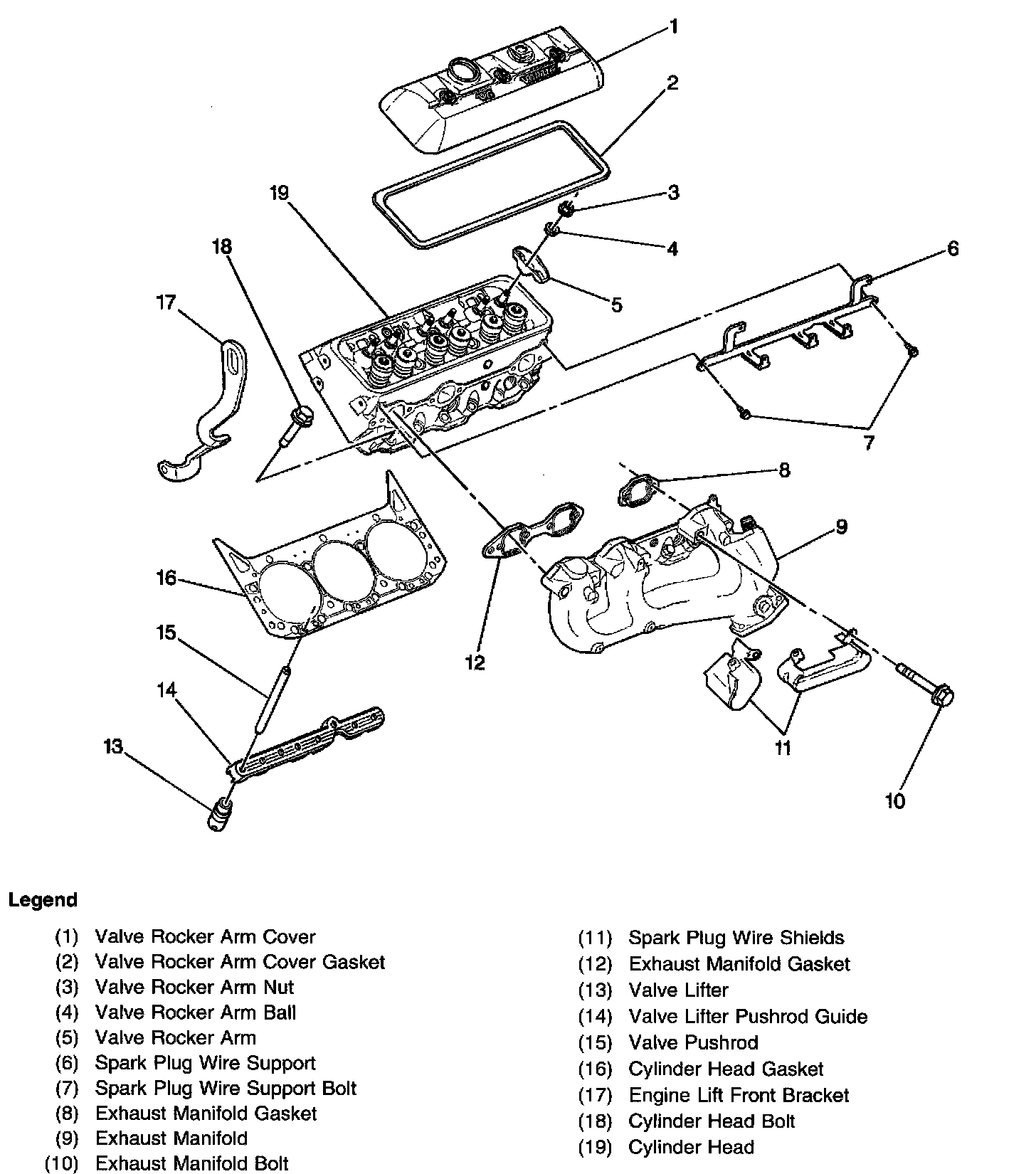

Upper Engine View 1

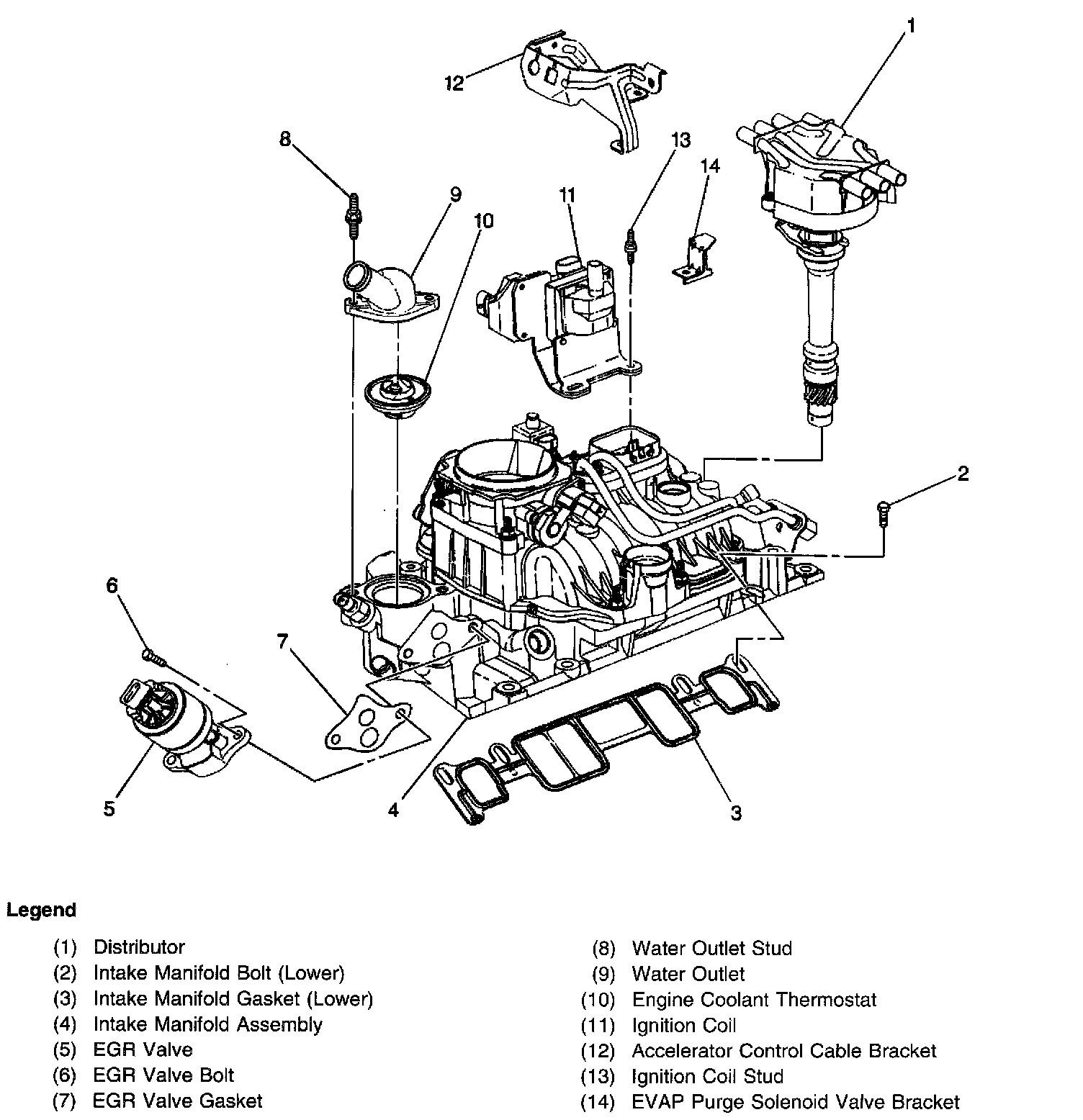

Upper Engine View 2

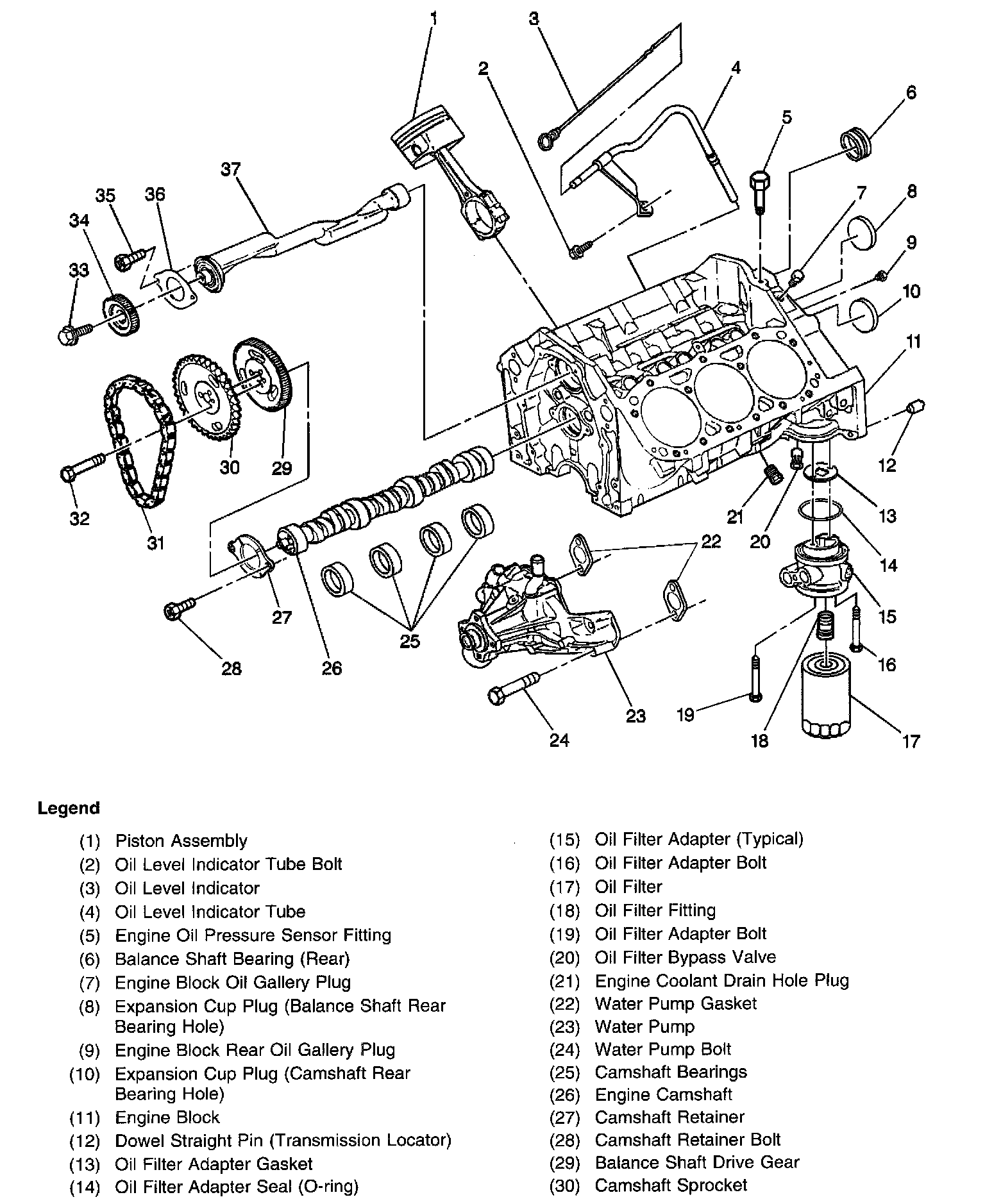

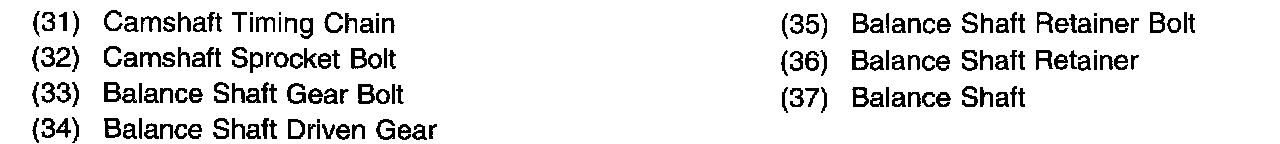

Lower Engine View 1

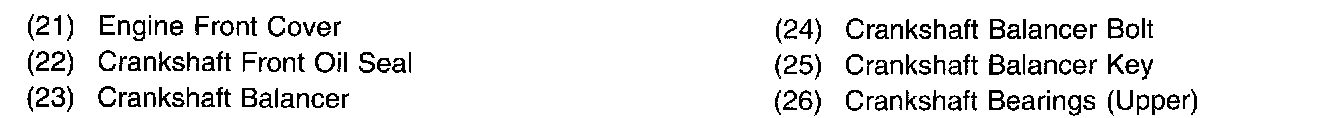

Lower Engine View 2
