REMOVAL PROCEDURE





CAUTION: Refer to Battery Disconnect Caution in Service Precautions.

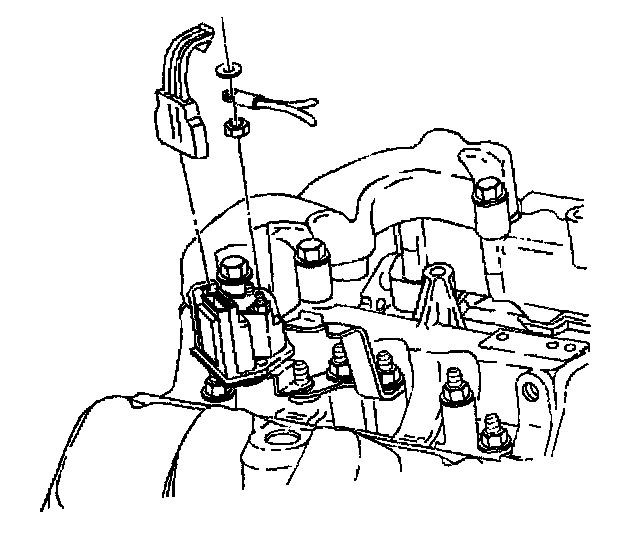

1. Disconnect the negative battery cable.
2. Remove the engine cover.
3. Remove the harness connector from the glow plug relay by releasing the locking tab.
4. Remove the hold down nuts on the glow plug feed wires.
5. Remove the glow plug feed wires.

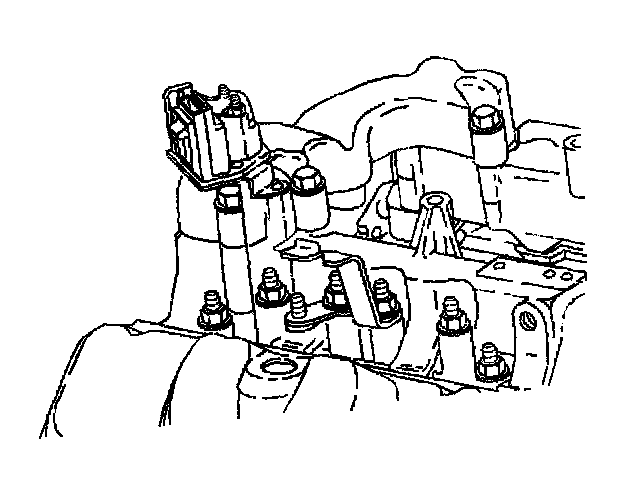

6. Remove the relay mounting nuts.




7. Remove the relay from the studs on the engine.

INSTALLATION PROCEDURE




1. Install the relay to the studs on the engine.





NOTE: Refer to Fastener Notice in Service Precautions.

2. Install the relay mounting nuts.

Tighten
Tighten the nuts to 42 N.m (31 lb ft).




3. Install the wiring harness connector to the relay.
4. Install the glow plug feed wires.
5. Install the glow plug feed wires nuts.

Tighten
Tighten the nuts to 5 N.m (44 lb in).

IMPORTANT: Ensure that the PCM electrical harness is properly routed to avoid contact with the engine cover during installation.

6. Install the engine cover.
7. Connect the negative battery cables.
