License Lamp Replacement (Export)

REMOVAL PROCEDURE

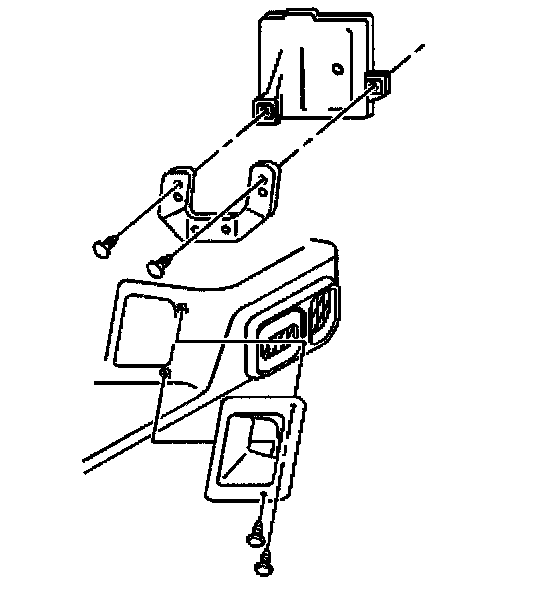

1. Turn the socket assembly 1/4 turn counterclockwise.
2. Remove the socket assembly from the license plate lamp lens.
3. Remove the screws retaining the license plate lamp bezel to the bumper.
4. Remove the license plate lamp bezel from the bumper.




5. Remove the screws retaining the license plate lamp lens to the bracket.
6. Remove the license plate lamp lens from the vehicle.

INSTALLATION PROCEDURE




1. Install the license plate lamp lens to the vehicle.
2. Install the screws in order to retain the license plate lamp lens to the bracket.
3. Install the license plate lamp bezel to the bumper.
4. Install the screws in order to retain the license plate lamp bezel.




5. Install the socket assembly to the license plate lamp lens.
6. Turn the socket assembly 1/4 turn clockwise.
