Engine Mount Replacement (Right)
Removal Procedure1. Disconnect both the battery negative cable from the batteries.
^ For the front battery, refer to Battery Cable Replacement (Battery Cable Negative) in Starting and Charging.
^ For the auxiliary battery, refer to Battery Cable Replacement (Battery Cable Aux. Negative) in Starting and Charging.
2. Raise the vehicle and support with safety stands.

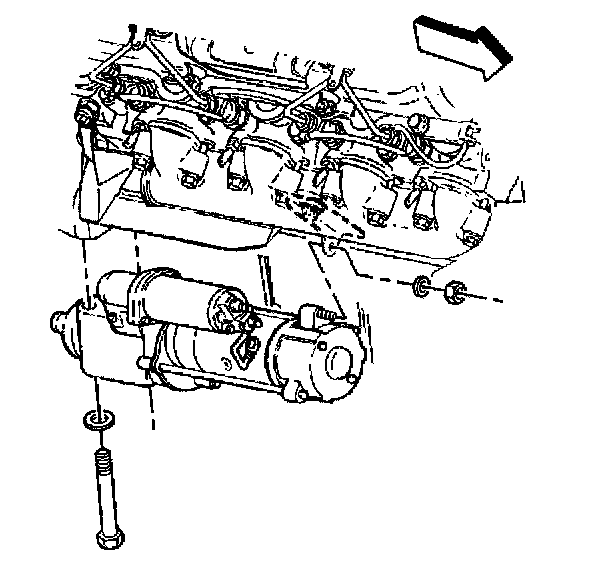

3. Remove the starter from the engine block (right side only) and secure out of the way.
4. Install a pole jack on the right rear corner of the engine block just above starter.

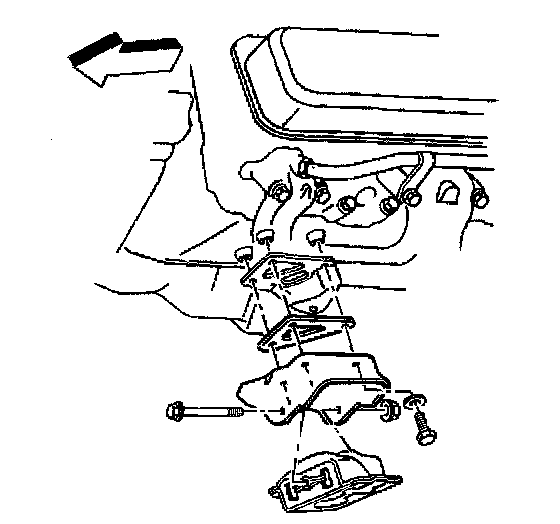

5. Remove the engine mount through bolt and the nut.
6. Raise the engine only enough to permit removal of the engine mount.

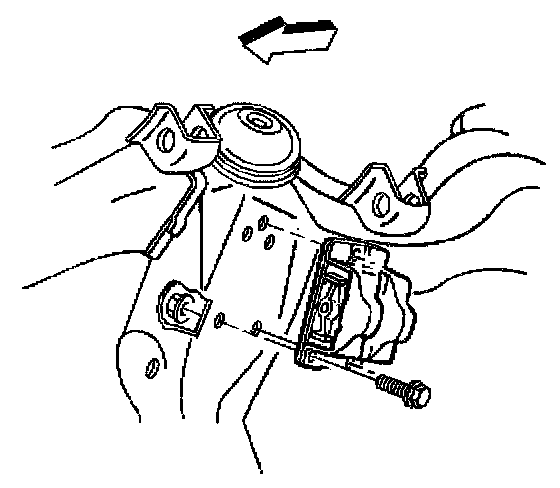

7. Remove the engine mount assembly bolts, nuts, and washers.
8. Remove the engine mount assembly.
Installation Procedure

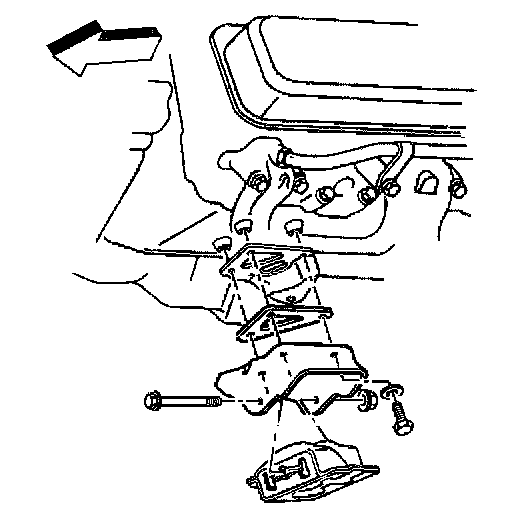

1. If servicing a 2 wheel drive vehicle, install the engine mount assembly.
Notice: Refer to Fastener Notice in Service Precautions.

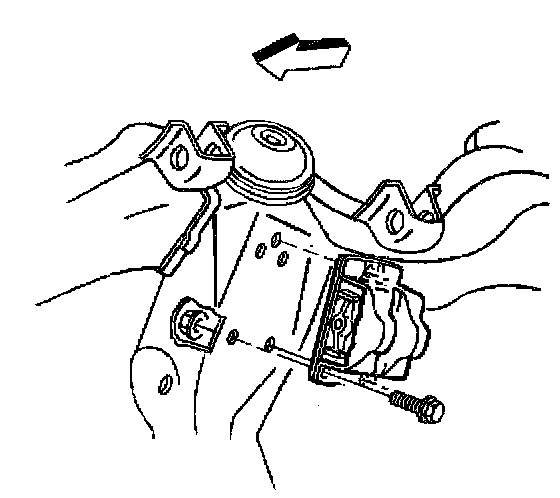

2. Install the engine mount assembly bolts, nuts, and washers to the crossmember.
^ Tighten the bolts to 59 Nm (44 ft. lbs.).
^ Tighten the nuts to 45 Nm (33 ft. lbs.).
3. Remove the pole jack from the engine block.

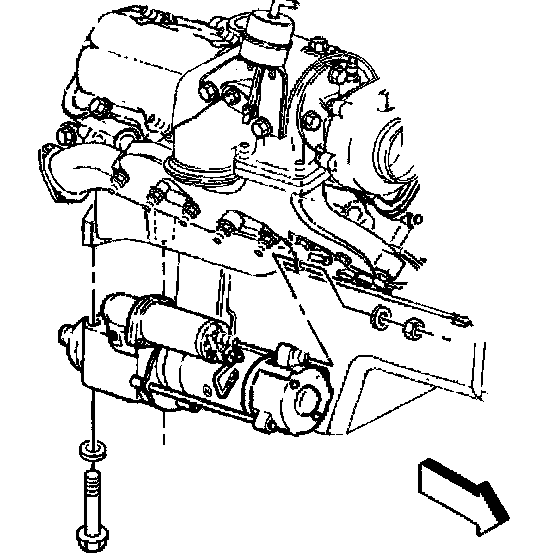

4. Install the starter to the engine block (right side only).
5. Lower the engine until the engine mount through bolt can be inserted.
6. Install the engine mount through bolt and the nut.
^ Tighten the through bolt nut to 68 Nm (50 ft. lbs.).
7. Connect both the battery negative cables to the batteries.
