Accessory Brackets Replacement (Right)

Removal Procedure
1. Disconnect both the battery negative cables from the batteries.
^ For the front battery, refer to Battery Cable Replacement (Battery Cable Negative) in Starting and Charging.
^ For the auxiliary battery, refer to Battery Cable Replacement (Battery Cable Aux. Negative) in Starting and Charging.
2. Remove the fan shroud from the radiator.
3. Remove the drive belt from the pulleys.
4. Remove the generator from the accessory bracket. Refer to Generator Replacement in Starting and Charging.
5. Remove the drive belt tensioner from the accessory bracket.
6. Remove the vacuum pump from the accessory bracket.

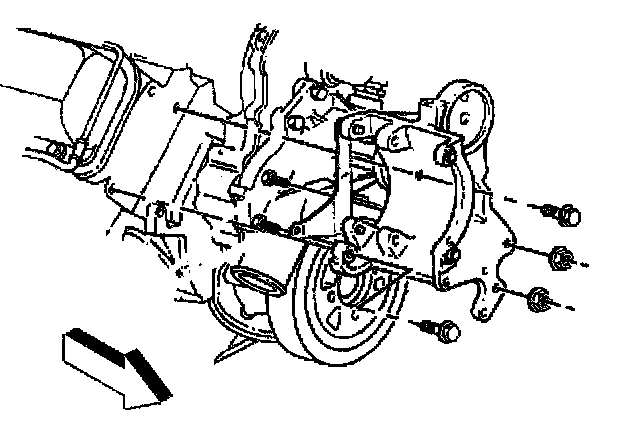

7. Remove the accessory bracket bolts from the engine block.





8. Remove the accessory bracket from the vehicle.

Installation Procedure





1. Install the accessory bracket to the vehicle.

Notice: Refer to Fastener Notice in Service Precautions.

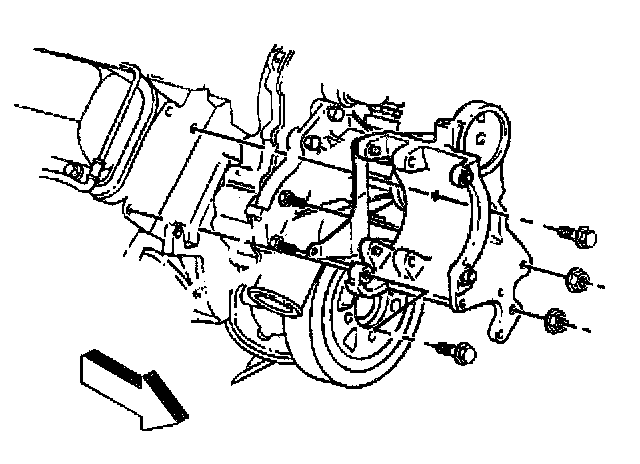

2. Install the accessory bracket bolts to the engine block.
^ Tighten the bolts to 50 Nm (37 ft. lbs.).
^ Tighten the nuts to 50 Nm (37 ft. lbs.).
3. Install the vacuum pump to the accessory bracket.
4. Install the drive belt tensioner to the right accessory bracket.
5. Install the generator to the accessory bracket.
6. Install the drive belt on the pulleys.
7. Install the fan shroud to the radiator.
8. Connect both the battery negative cables to the batteries.
