Accessory Brackets Replacement (Left)

Removal Procedure
1. Disconnect both the battery negative cables from the batteries.
^ For the front battery, refer to Battery Cable Replacement (Battery Cable Negative) in Starting and Charging.

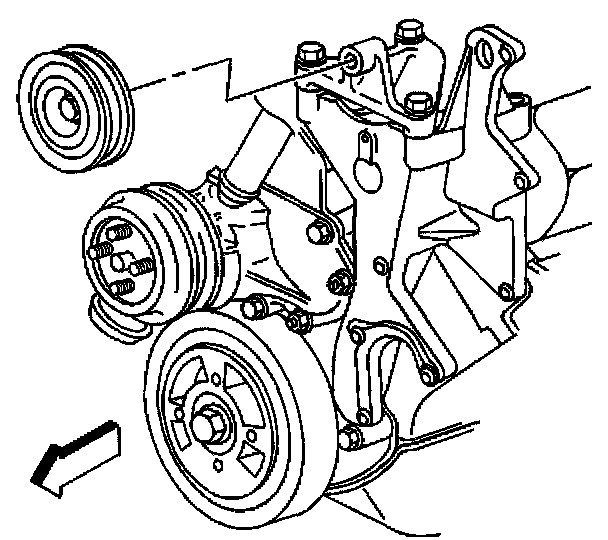

^ For the auxiliary battery, refer to Battery Cable Replacement (Battery Cable Aux. Negative) in Starting and Charging.
2. Remove the fan shroud from the radiator.
3. Remove the drive belt from the pulleys.





4. Remove the air conditioning compressor from the accessory bracket (if equipped), and position to the side.
5. Remove the idler pulley assembly (if vehicle is not equipped with A/C) from the left accessory bracket.

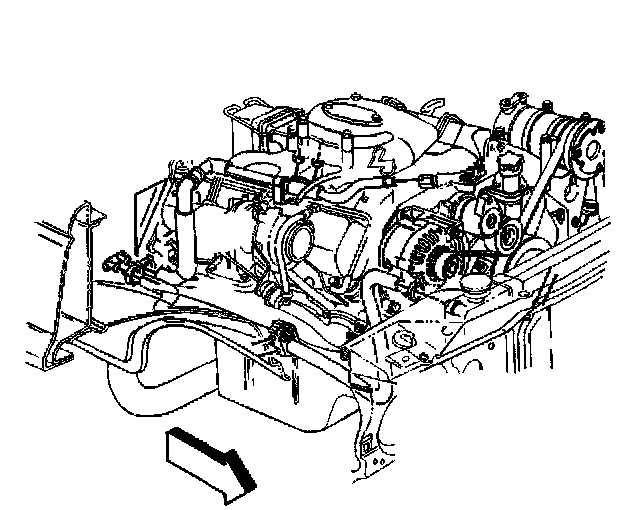

6. Remove the auxiliary generator (if equipped) from the accessory bracket. Refer to Generator Replacement-Auxiliary in Starting and Charging.
7. Drain the cooling system.
8. Remove the engine cooling fan from the vehicle.





9. Remove the heater hose from the thermostat housing and position out of the way.
10. Remove the thermostat housing crossover from the cylinder heads.
11. Remover the power steering pump from the accessory bracket.

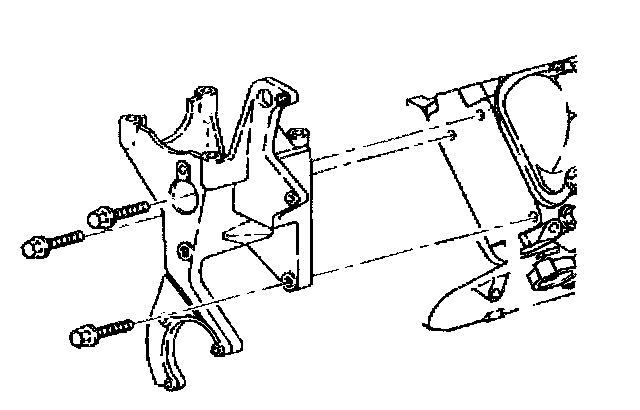

12. Remove the bolts from the accessory bracket.
13. Remove the accessory bracket from the engine block.

Installation Procedure

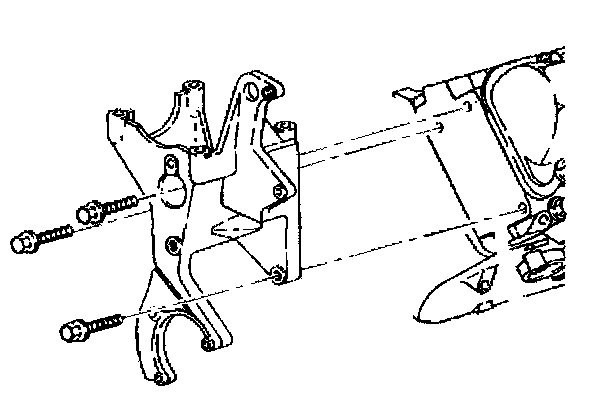

1. Install the accessory bracket to the engine block.

Notice: Refer to Fastener Notice in Service Precautions.

2. Install the accessory bracket bolts to the cylinder head.
^ Tighten the bolts to 50 Nm (37 ft. lbs.).
3. Install the power steering pump to the accessory bracket.
4. Install the thermostat housing crossover to the cylinder heads.





5. Install the heater hose to the thermostat housing.
6. Install the A/C compressor the accessory bracket.

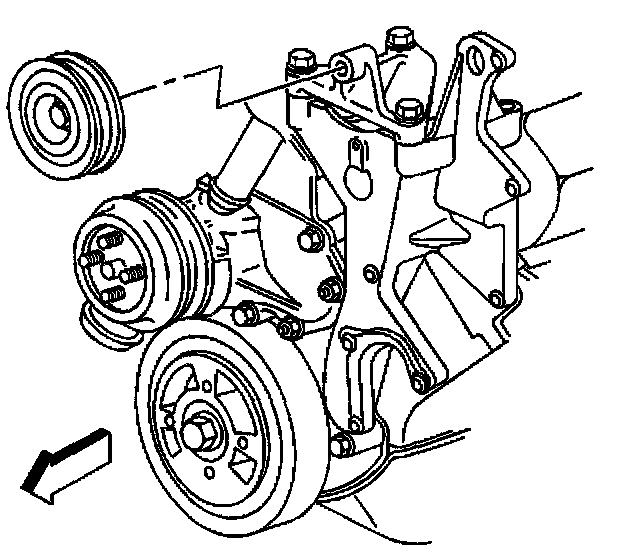

7. Install the idler pulley assembly (if vehicle is not equipped with A/C) to the left accessory bracket.

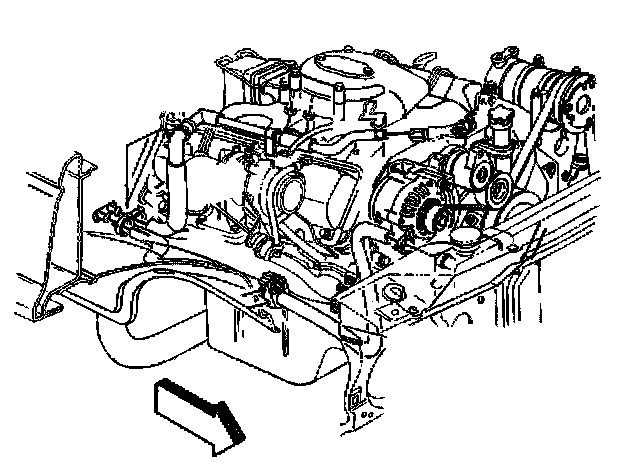

8. Install the auxiliary generator (if equipped) to the left accessory bracket.
9. Install the engine cooling fan to the vehicle.
10. Install the drive belt on the pulleys.
11. Install the fan shroud in the vehicle.
12. Refill the cooling system.
13. Connect both the battery negative cables to the batteries.
