HVAC System - Manual
>>
HVAC Compressor Control Schematics
>>
ECM-B, IGN-E, A/C Fuses; Compressor Clutch, G101, G103
ECM-B, IGN-E, A/C Fuses; Compressor Clutch, G101, G103

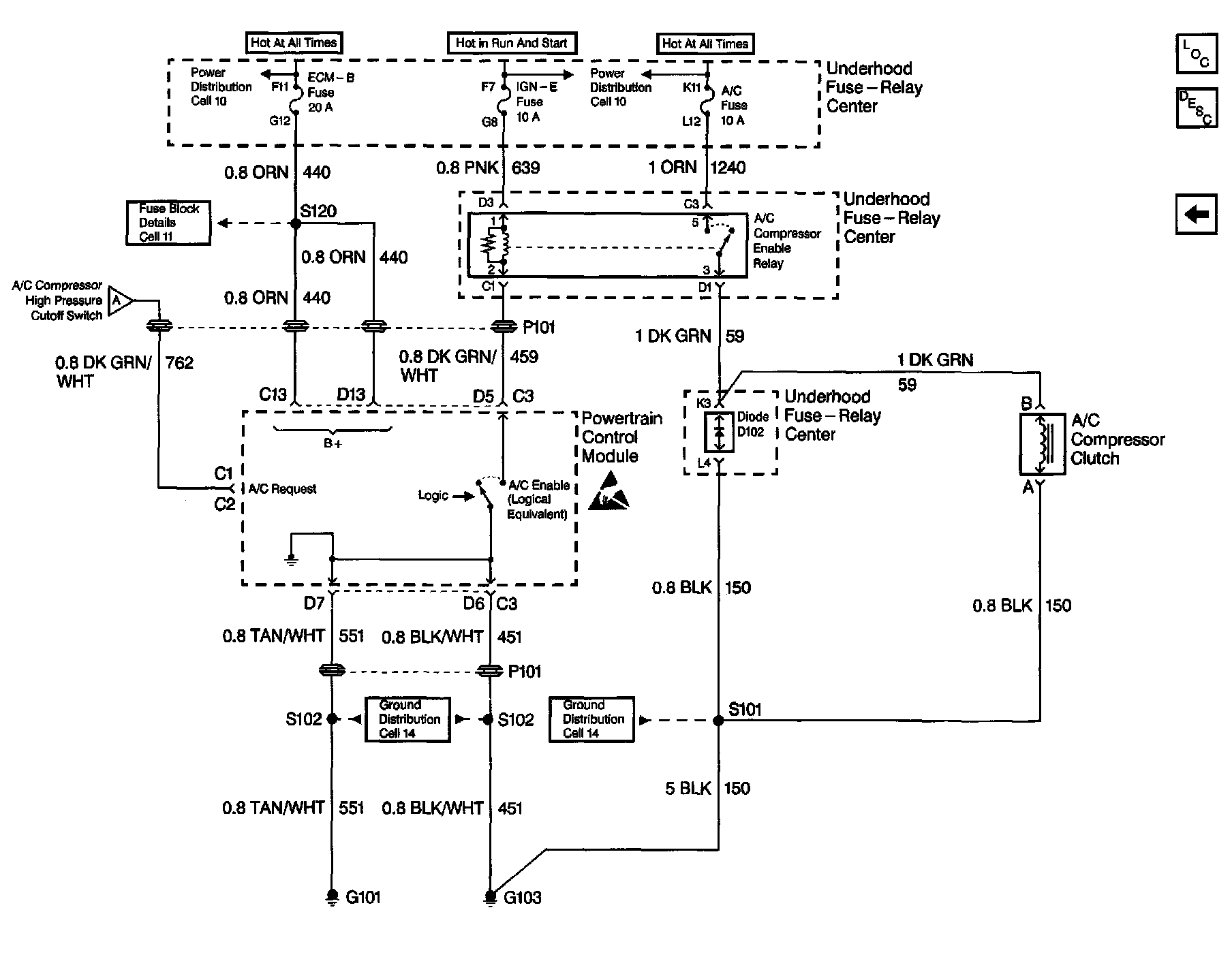

HVAC Compressor Control Schematics: ECM-B, IGN-E, A/C Fuses; Compressor Clutch, G101, G103:
