P0216

Circuit Description
The timing of the combustion event is accomplished by controlling the beginning of injection measured in degrees of crankshaft rotation before Top Dead Center. This test compares the desired timing to the measured timing when certain conditions have been met. In order to retard the injection timing, the Powertrain Control Module (PCM) extends the stepper motor. To advance the injection timing, the PCM retracts the stepper motor.

Conditions for Running the DTC
^ The PCM performs this DTC diagnostic continuously.
^ DTCs P0251, P0335, P0370 are not set.
^ The engine speed has not changed more than 56 RPM for 5 seconds.

Conditions for Setting the DTC
^ A 5 degree difference between the Act. Inj. Time and the Des. Inj. Time
^ All of the diagnostic set conditions met for 2 seconds.

Action Taken When the DTC Sets
^ The PCM illuminates the Malfunction Indicator Lamp (MIL) on the second consecutive drive trip the diagnostic runs and fails.
^ The PCM records the operating conditions at the time the diagnostic fails. The first time the diagnostic fails, the Failure Records store this information. If the diagnostic reports a failure on the second consecutive drive trip, the Freeze Frame records the operating conditions at the time of failure and updates the Failure Records.

Conditions for Clearing the MIL/DTC
^ The PCM will turn the MIL off after three consecutive trips without a fault condition.
^ A History DTC clears after forty consecutive warm-up cycles, if this or any other emission related diagnostic does not report any failures
^ The use of a scan tool.

Diagnostic Aids
An intermittent may be caused by the following:
^ Poor connections
^ A rubbed through wire insulation
^ A broken wire inside the insulation

A hard start and a possible poor performance condition might exist. DTC P0216 will possibly set if the injection timing is not set correctly. Refer to Injection Timing Adjustment for the correct procedure.

Opens or grounds in any of the circuits may result in full advance and very noisy operation.

Check the Snapshot Data to confirm the diagnosis. If the error is less than the Desired Timing, the fault is not the result of a circuit problem. If the error is greater than the Desired Timing, check all of the circuits related to the Injection Timing Stepper Motor (ITS).

Test Description

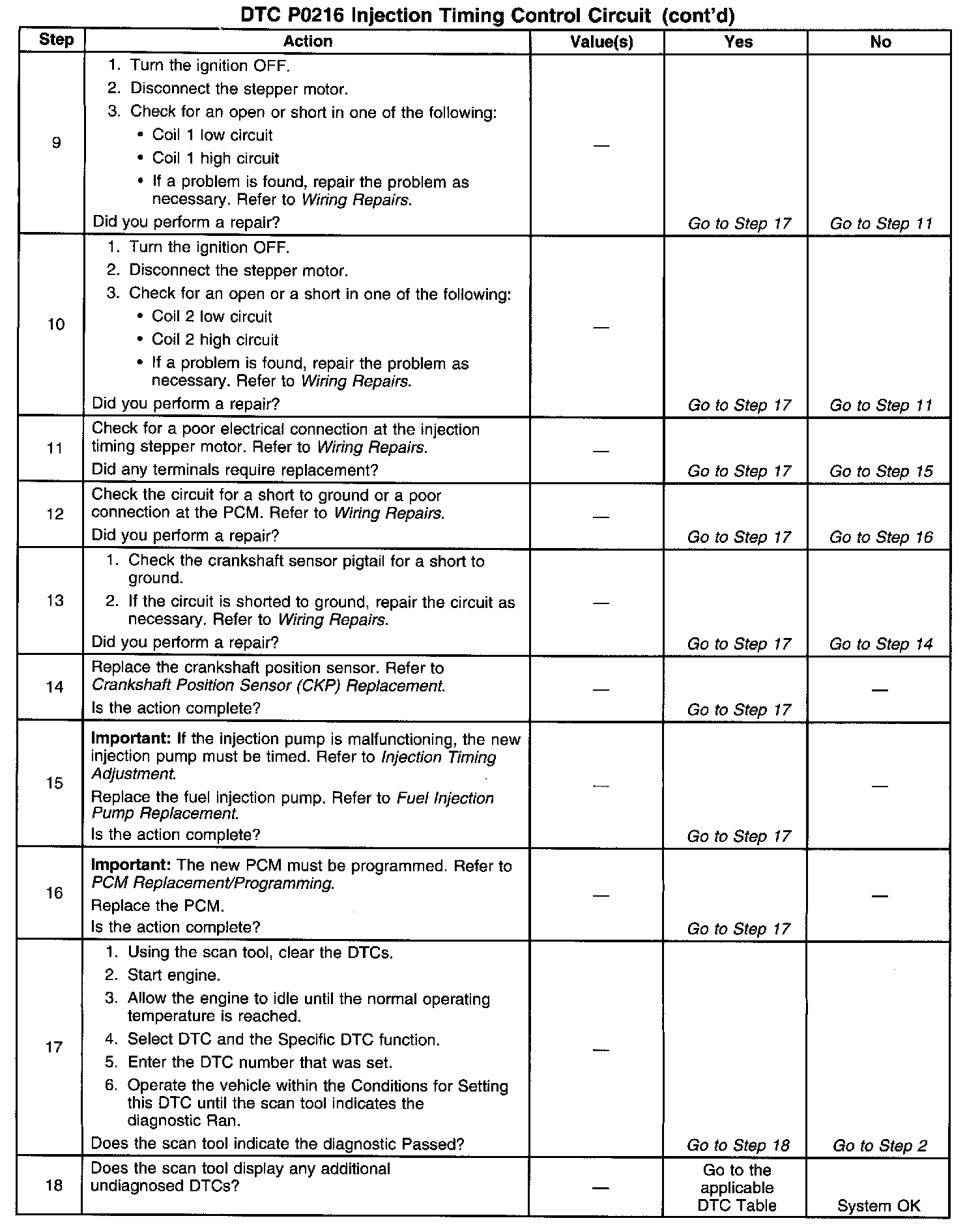

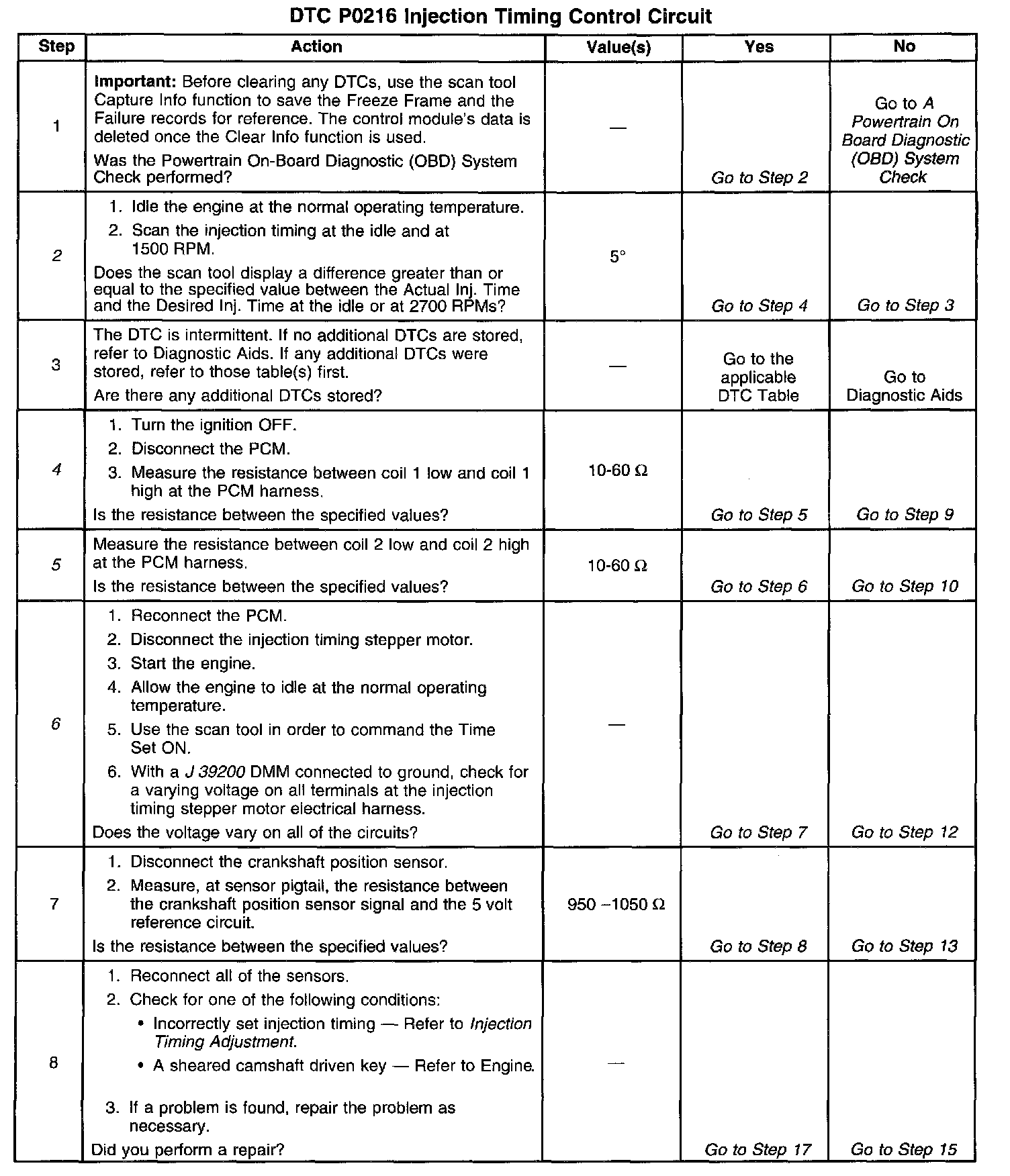

The number(s) below refer to the step number(s) on the Diagnostic Table.
2. This step determines if DTC P0216 is a hard failure or an intermittent.
4. This step checks for an open or a short in the injection timing coil circuit 1.
5. This step checks for an open or short in the injection timing coil circuit 2.
6. The important thing in this step is that the PCM is sending a varying voltage (voltage may vary between 1 and 12 (usually you will see voltage vary between 5 and 6 when the engine is idling)), this will indicate that the PCM is OK and that there is a problem with the injection timing stepper motor. If there is a steady voltage present on any circuit, this will indicate a problem with the PCM or a circuit shorted to voltage.
