Rear Door Window Glass Weatherstrip: Service and Repair

REMOVAL PROCEDURE




1. Remove the side door trim panel.
2. Remove the hinged body side window.

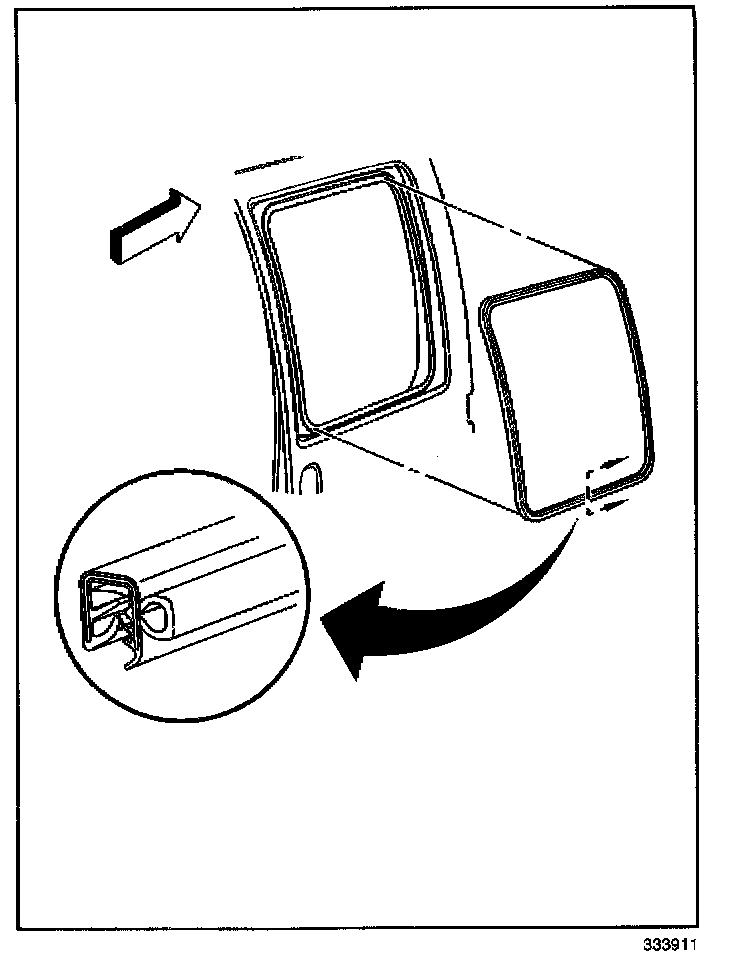

3. Pull the side door window weatherstrip from the window opening pinch-weld flange.

INSTALLATION PROCEDURE

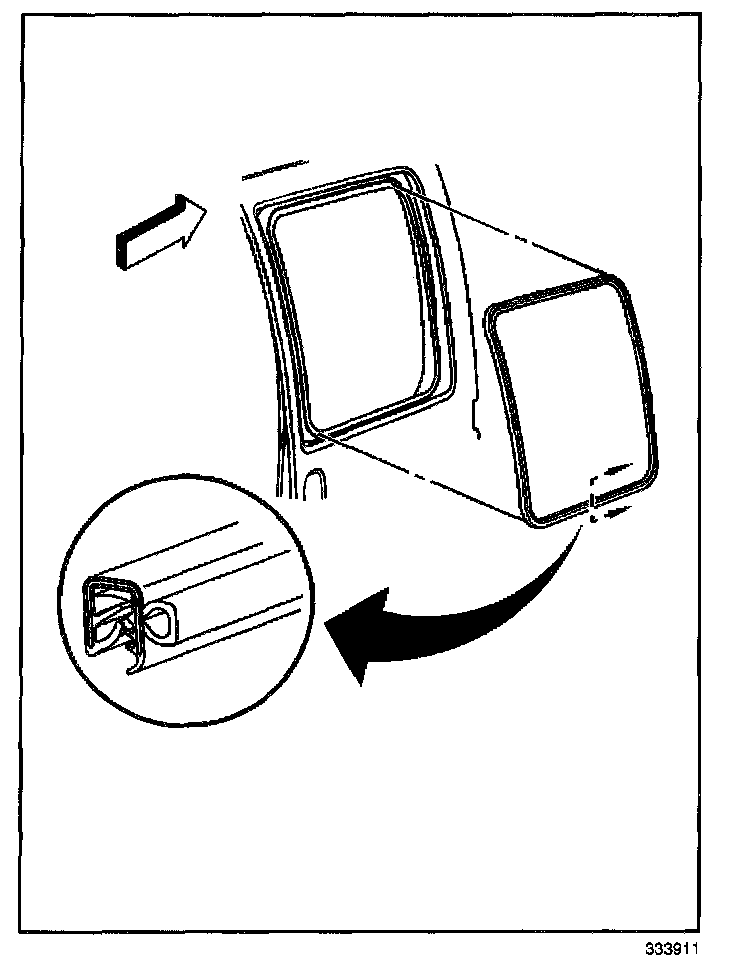

1. Install the side door window weatherstrip to the window opening pinch-weld flange.
2. Press the side door window weatherstrip into place.
3. Install the body side window.
4. Install the side door trim panel.
