Torque Converter Clutch Solenoid: Service and Repair

Removal Procedure
1. Raise the vehicle. Refer to Vehicle Lifting.
2. Remove the transmission oil pan and the oil filter. Refer to Automatic Transmission Fluid/Filter Changing.

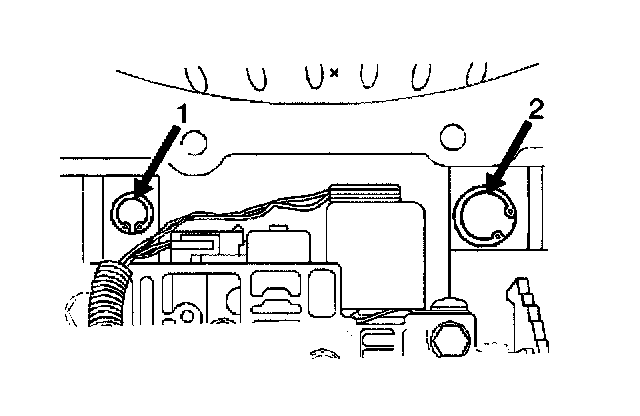

3. Remove the valve bore plug retainer ring.

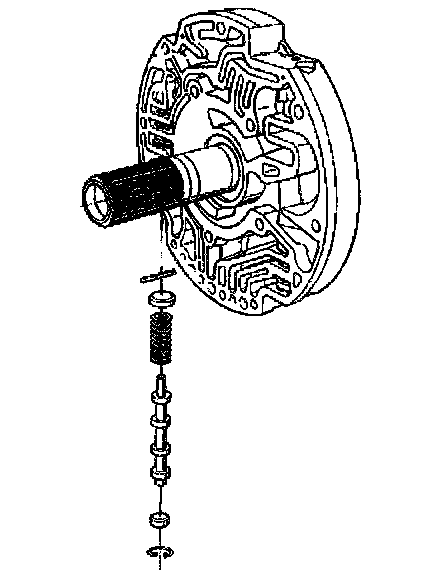

4. Remove the following parts:
4.1. The valve bore plug.
4.2. The TCC valve.
4.3. The TCC valve spring.

Installation Procedure

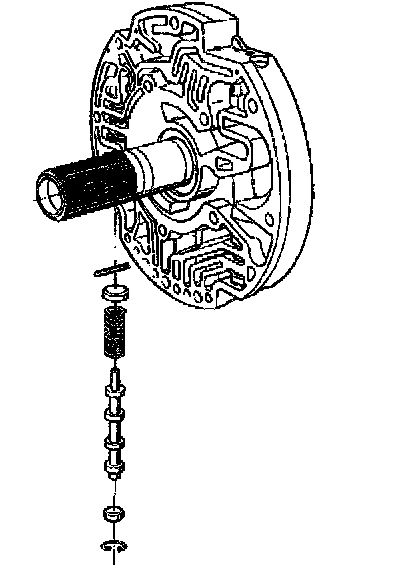

1. Install the following parts:
1.1. The TCC valve spring.
1.2. The TCC valve.
1.3. The valve bore plug.

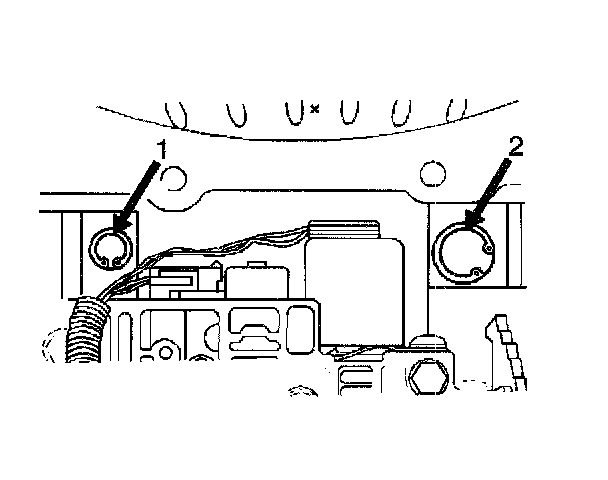

2. Install the valve bore plug retainer ring.
3. Install the transmission oil pan and oil filter. Refer to Automatic Transmission Fluid/Filter Changing.
4. Lower the vehicle.
