Differential Assembly: Locations

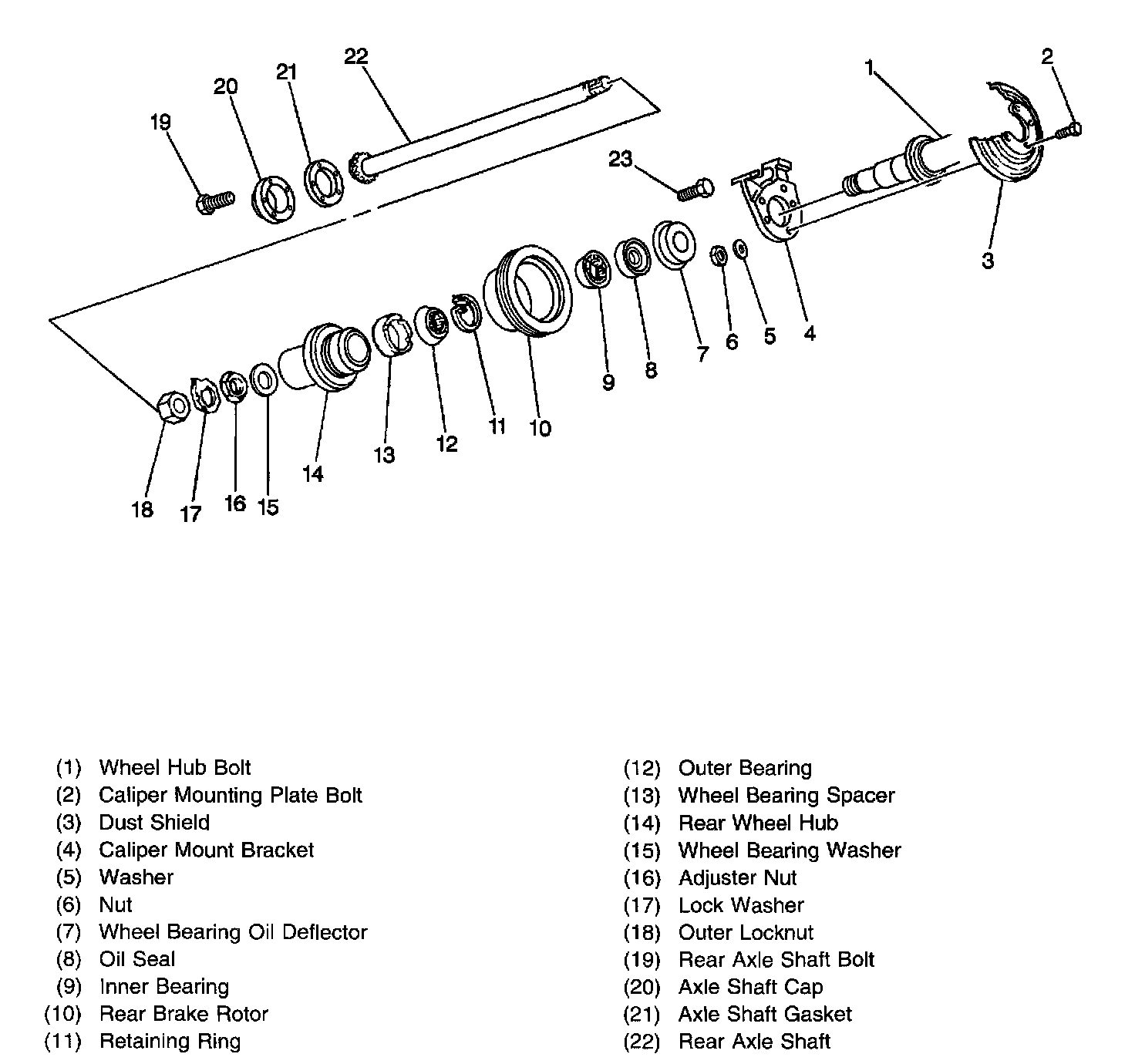

Full-Floating Axle Wheel End Components

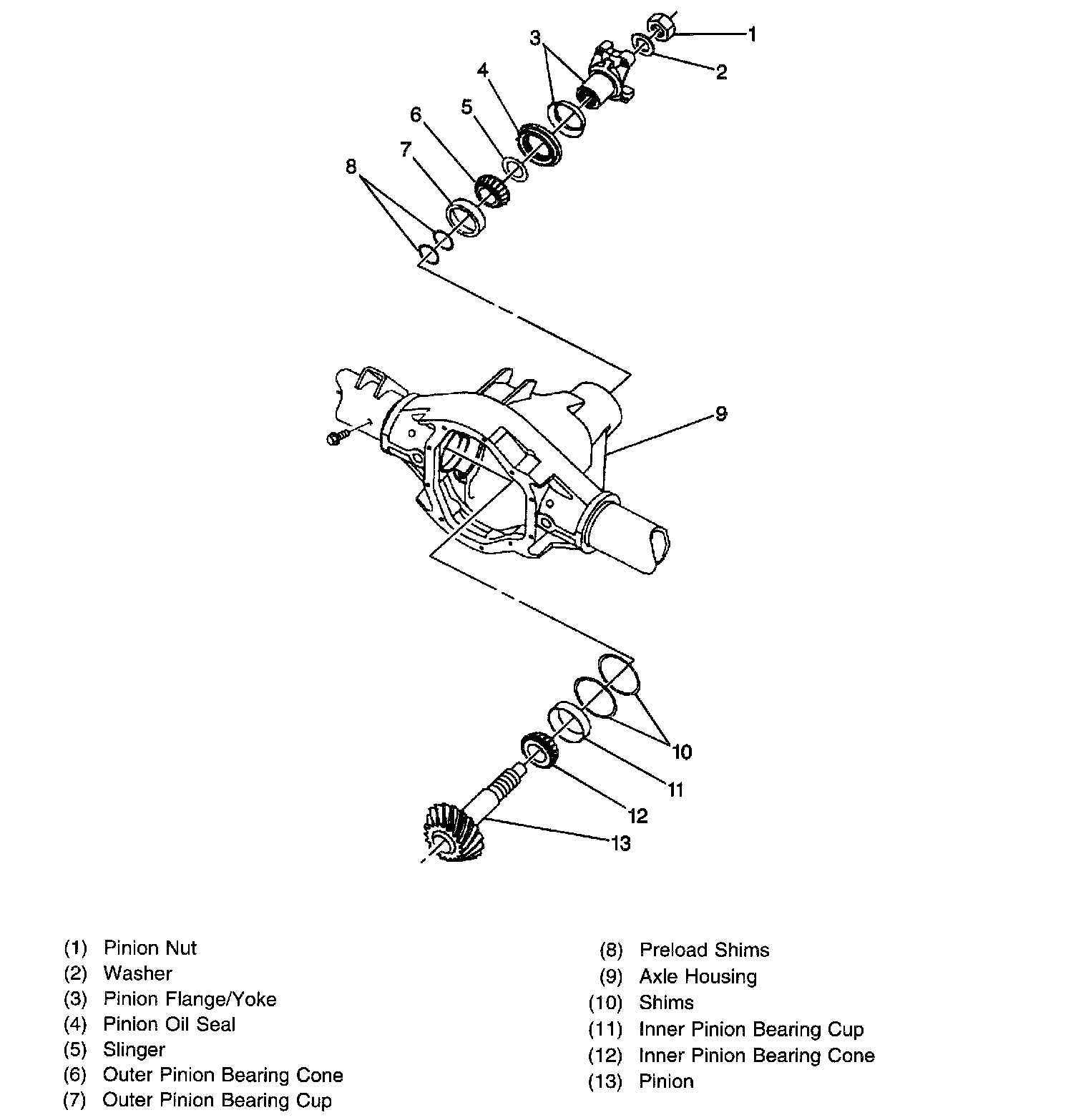

Rear Drive Axle Pinion Components (11 Inch Ring Gear)






Rear Drive Axle Pinion Components (11 Inch Ring Gear)
