Home >> Chevy Truck >> 1999 >> Express 1 Ton Van V8-5.7L VIN R >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Testing and Inspection >> Component Tests and General Diagnostics >> 4L80-E/4L85-E Automatic Transmission >> Transmission Wiring Harness Check

Transmission Wiring Harness Check

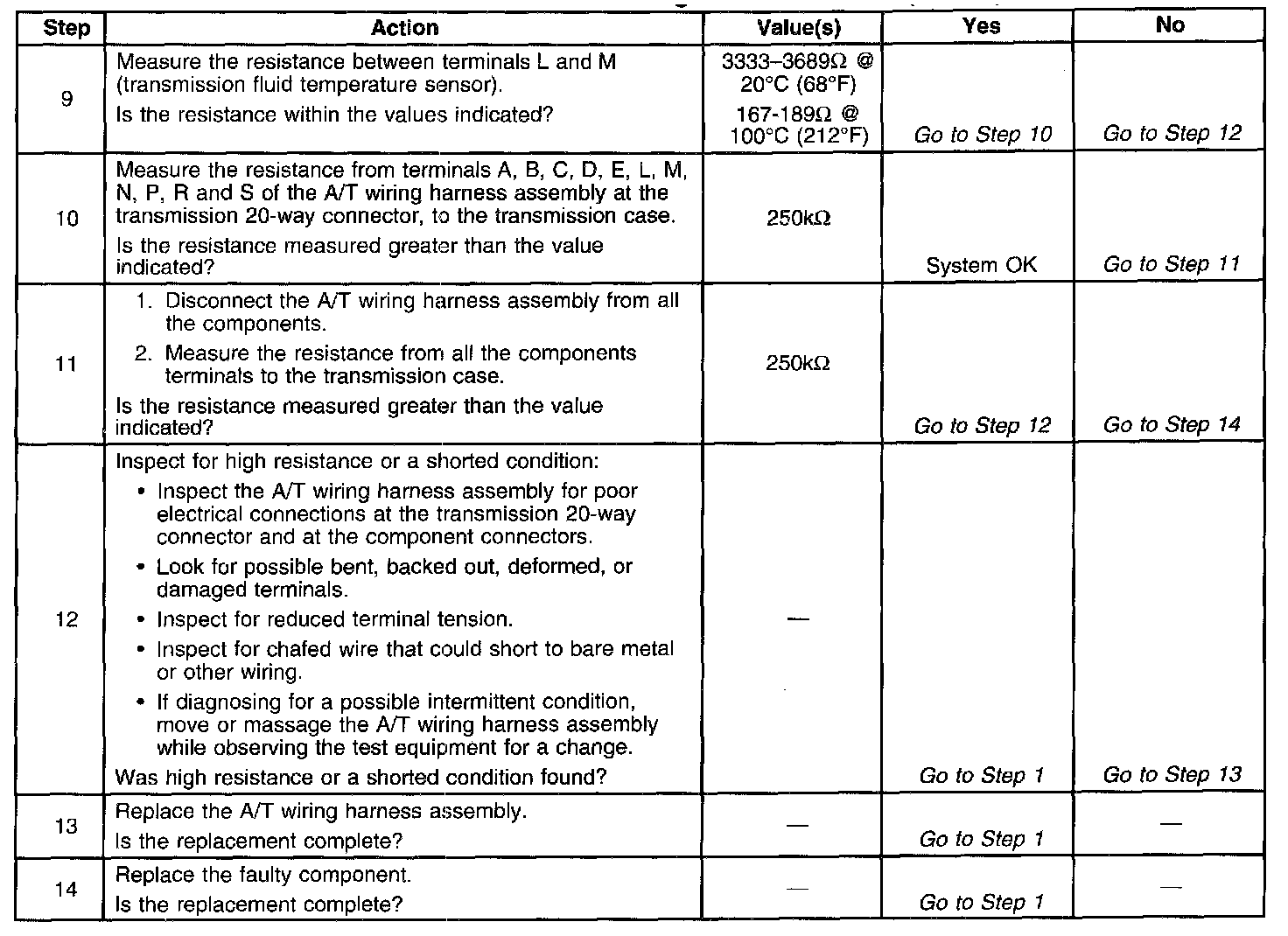

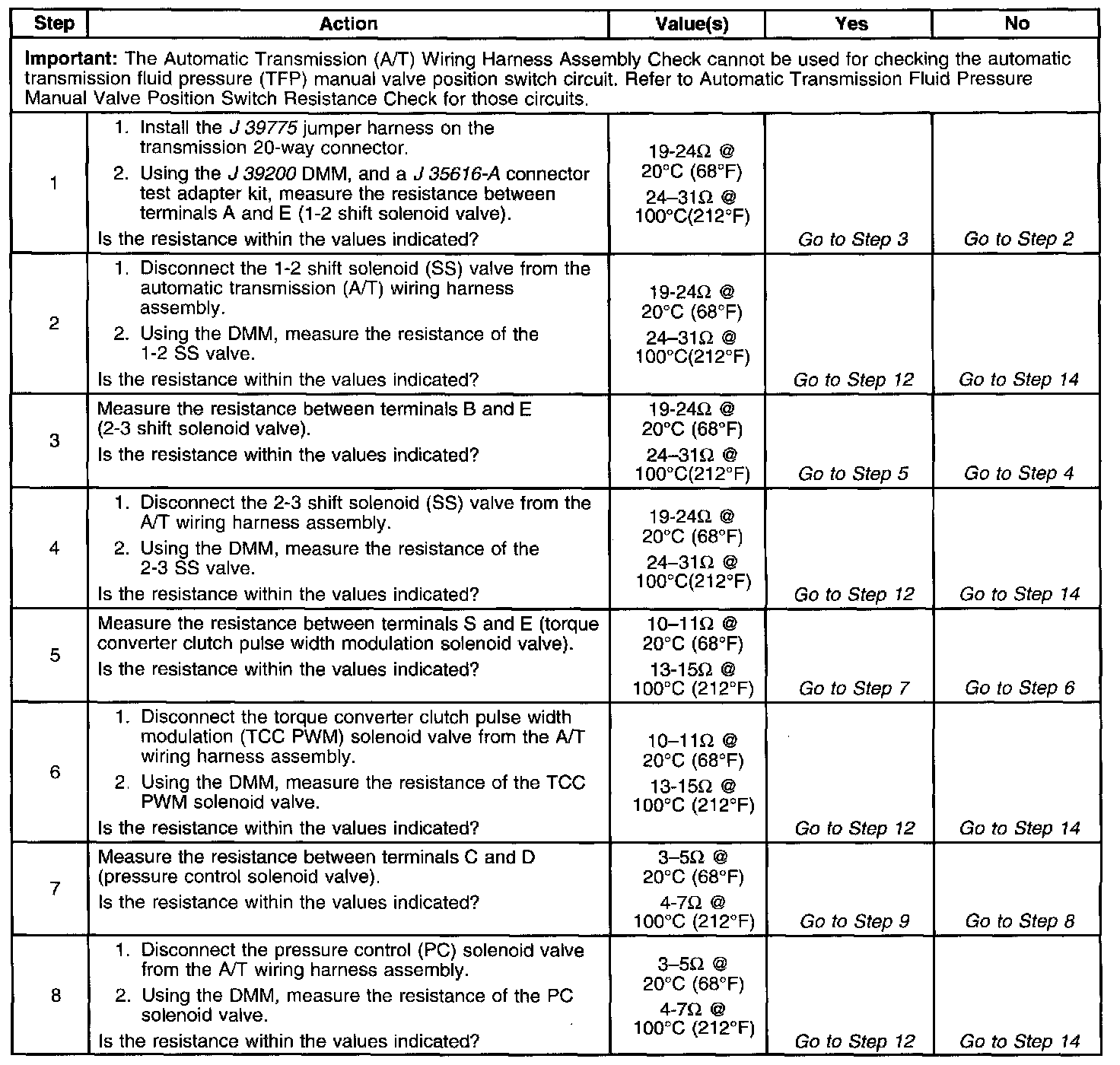

Part 1 Of 2:





Part 2 Of 2:





Automatic Transmission Wiring Harness Check
