Trans Fluid Pressure Man. Vlv. Position Switch Resistance Check

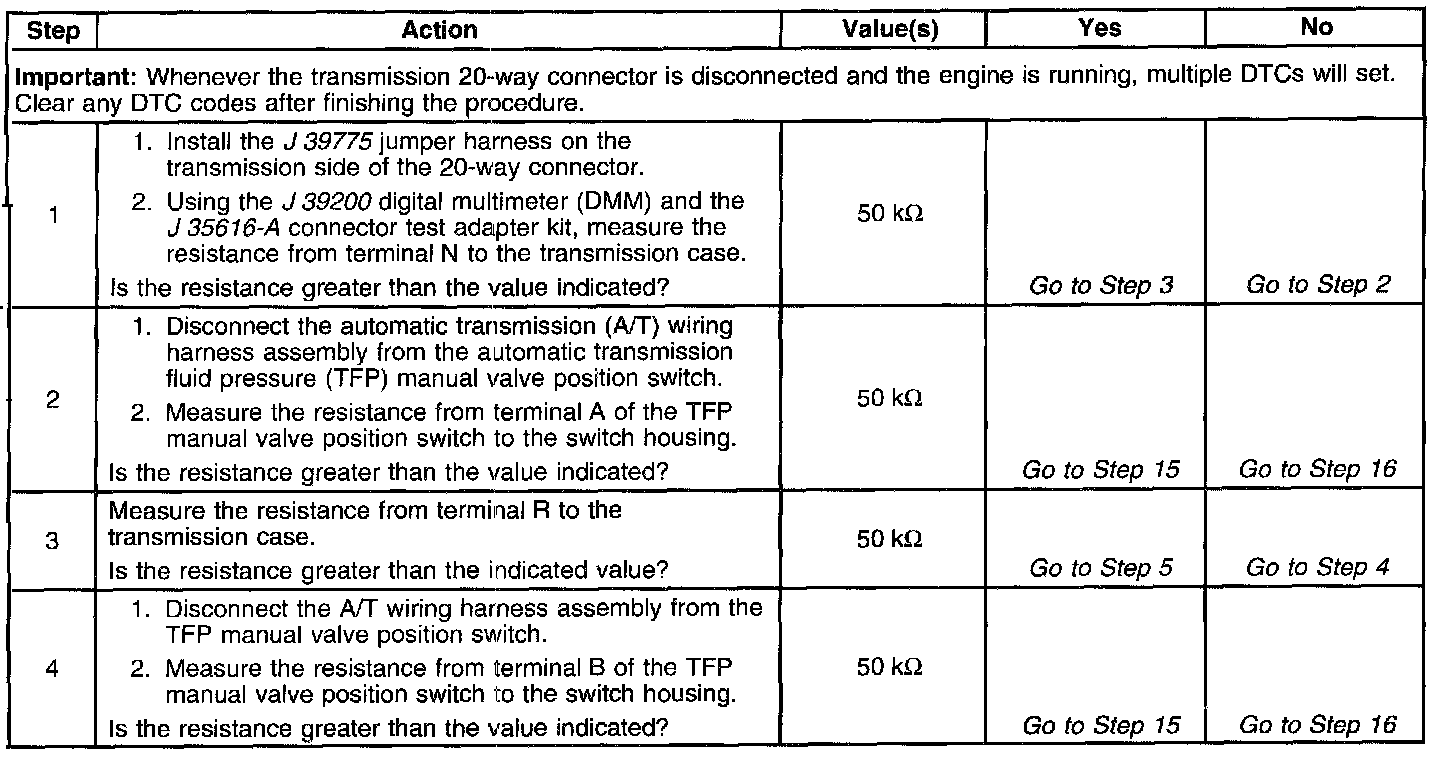

Part 1 Of 2:

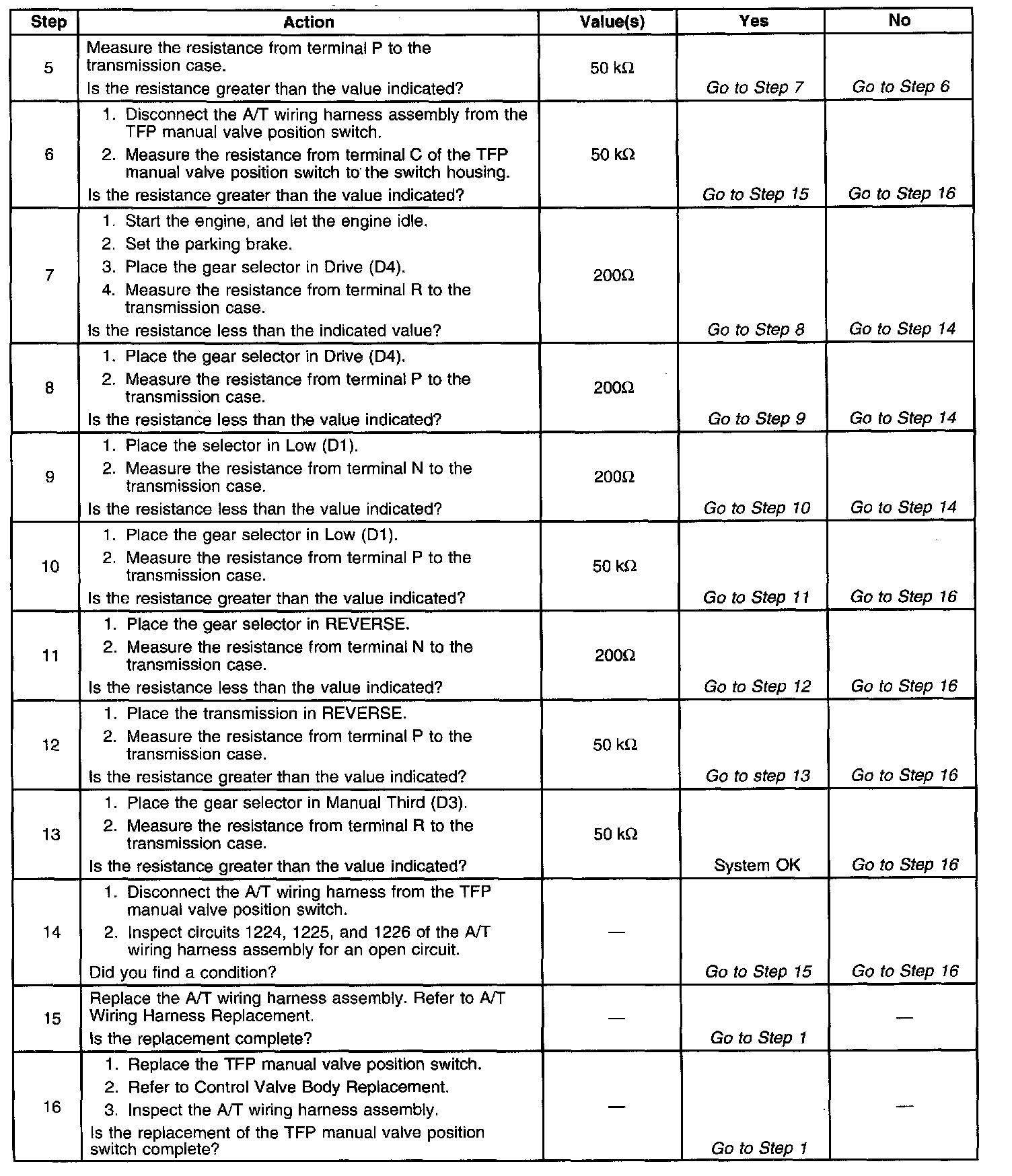

Part 2 Of 2:





Transmission Fluid Pressure (TFP) Manual Valve Position Switch Resistance Check
